Water Pump/Thermostat Housing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

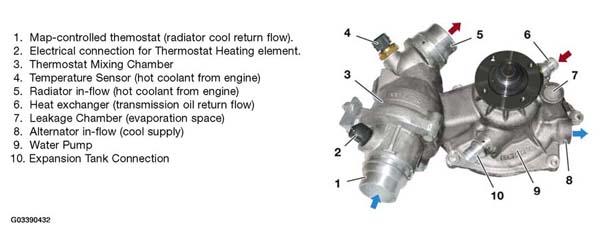

The water pump is combined with the thermostat housing and is bolted to the timing case lower section.
Caution during installation of the water pump: The impeller is made from reinforced plastic.
- Reassemble engine using your notes taken during disassembly in addition to the Repair Instructions.
