Axle Carrier Rubber Mounts: Assembly

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat rubber mount with Circolight anti-friction agent. Arrows (1) and stops (2) of center sleeve must point in longitudinal direction (F) of vehicle when rubber mount is installed. See Fig 1 .
  2. Draw in rubber with special tool (33 4 155/156/157/159) as far as it will go. See Fig 2 .
  3. Raise rear axle carrier into place and install. See AXLE CARRIER  under REMOVAL & INSTALLATION.

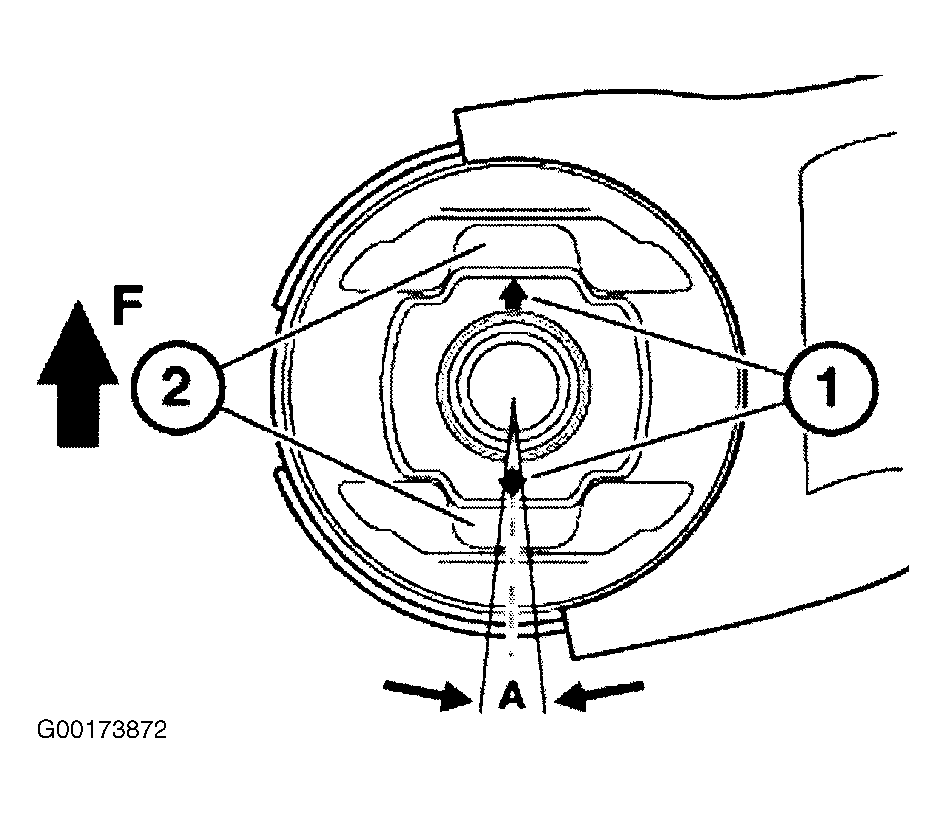

Fig 1: Identifying Installation Position Of Rubber Mount
G00173872Courtesy of BMW OF NORTH AMERICA, INC.

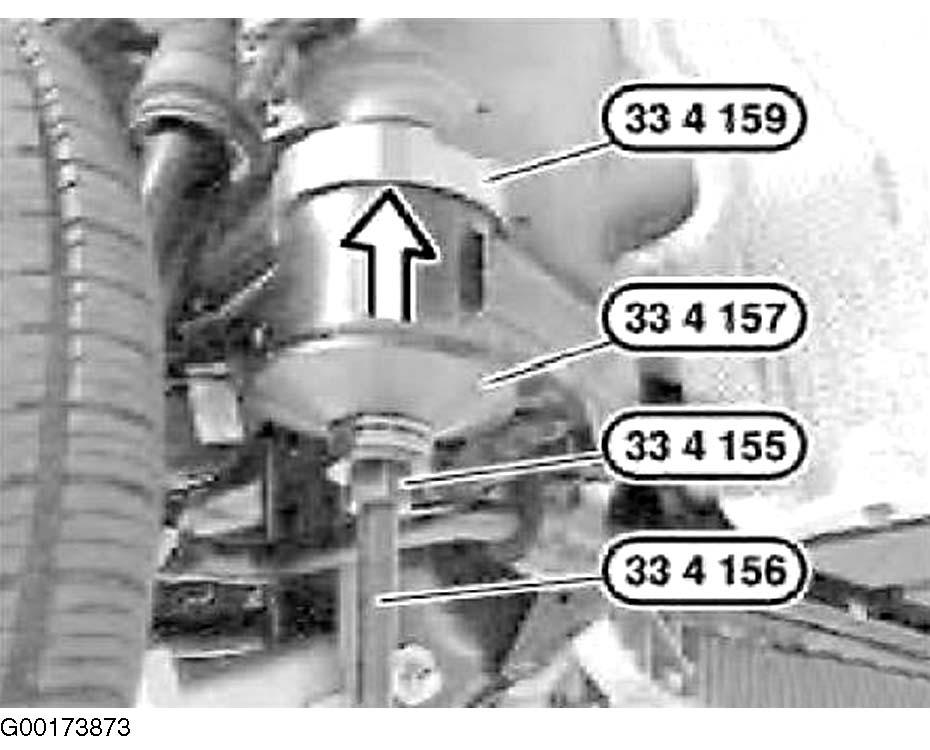

Fig 2: Drawing In Rubber Mount
G00173873Courtesy of BMW OF NORTH AMERICA, INC.
