Power Steering Vane Pump: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Draw hydraulic fluid out of tank. Do not re-use.
Remove engine underguard.
Remove drive belt.
Disconnect hydraulic lines from steering pump. See Fig 1.
On vehicles without ARS, unfasten nut (2). See Fig 2.
On vehicles with ARS, unfasten nut (2). See Fig 3.
On all vehicles, unfasten screws and remove pump. See Fig 4.

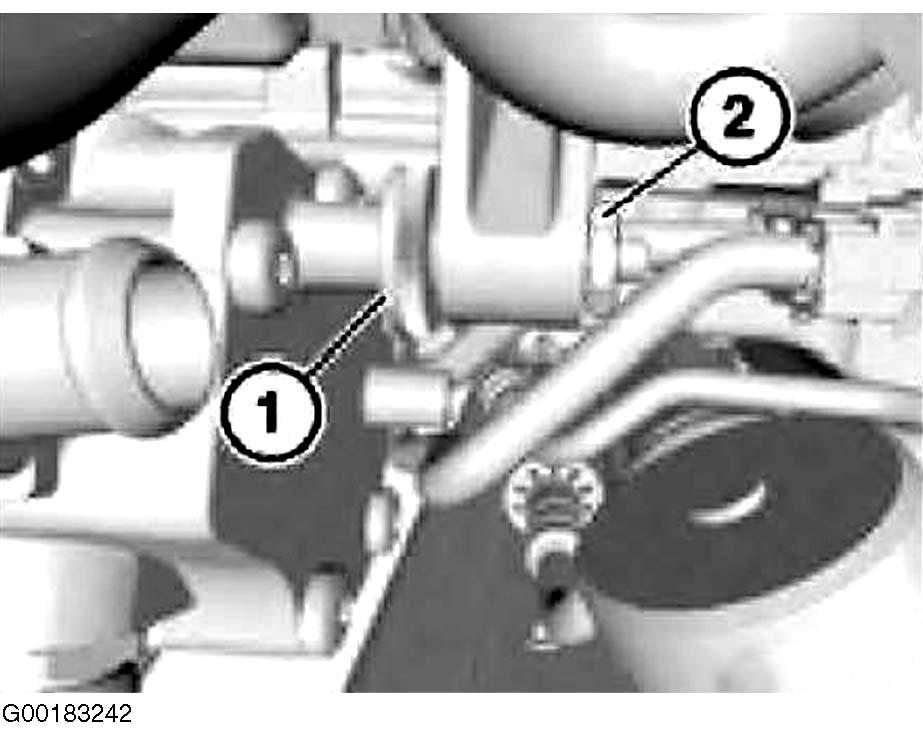

Fig 1: Disconnecting Hydraulic Lines From Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

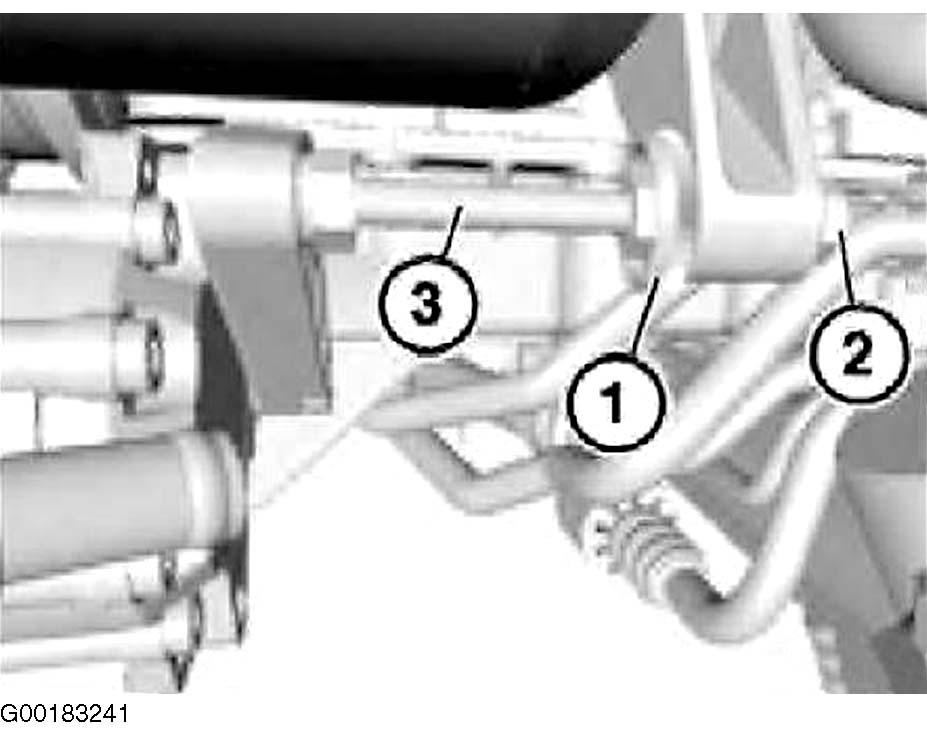

Fig 2: Locating Vane Pump Nut (Without ARS)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Locating Vane Pump Nut (With ARS)

Courtesy of BMW OF NORTH AMERICA, INC.

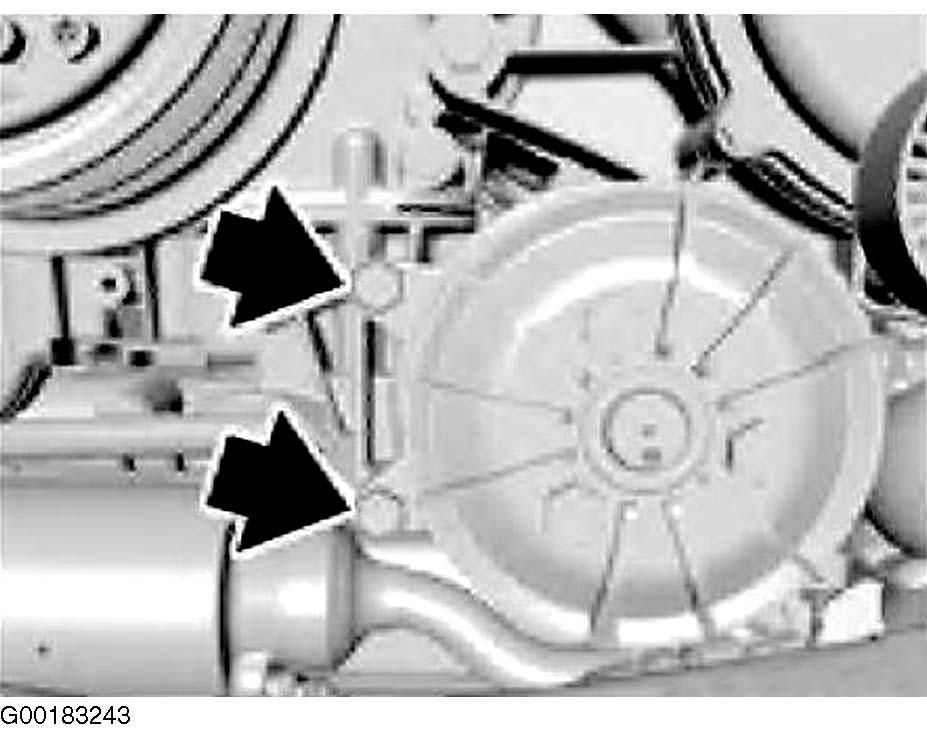

Fig 4: Removing Vane Pump

Courtesy of BMW OF NORTH AMERICA, INC.
