Power Steering Gear: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Draw hydraulic fluid out of tank and do not reuse.
Remove front axle support. See FRONT - E65 article in SUSPENSION.
Release screw connections for engine mounts. Remove engine mounts towards front. See Fig 1.
Unfasten nut and detach tie rod end from steering knuckle on left and right. See Fig 2.
Release both FCD couplings on steering gear. See FCD COUPLINGS .
Unscrew left and right nuts. Remove steering gear. See Fig 3.

Fig 1: Removing Engine Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Locating Tie Rod Nut

Courtesy of BMW OF NORTH AMERICA, INC.

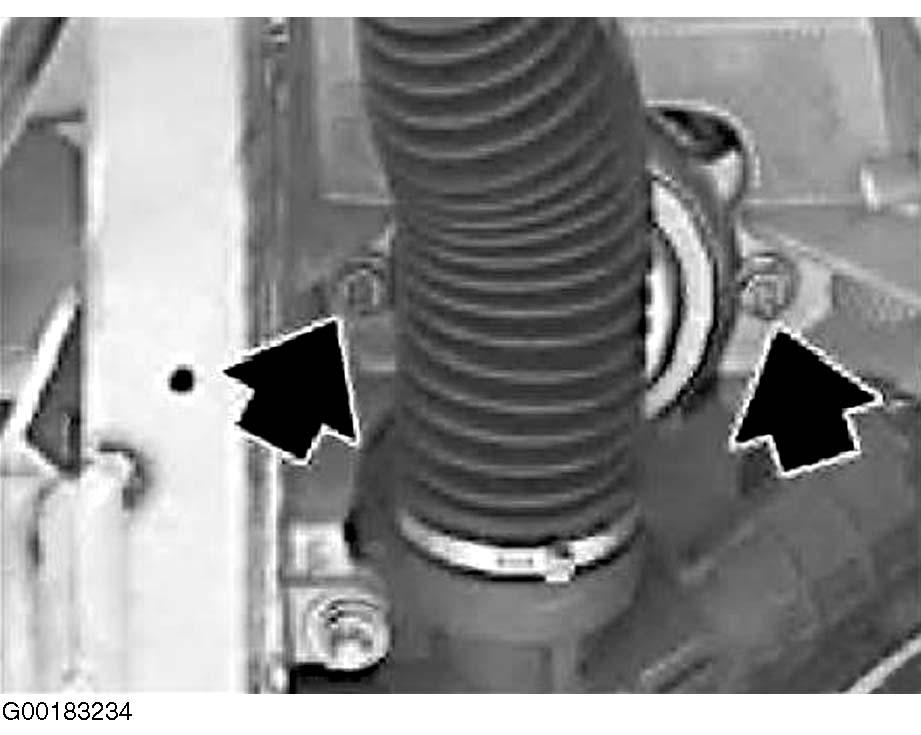

Fig 3: Removing Power Steering Gear

Courtesy of BMW OF NORTH AMERICA, INC.
