Power Steering Gear: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

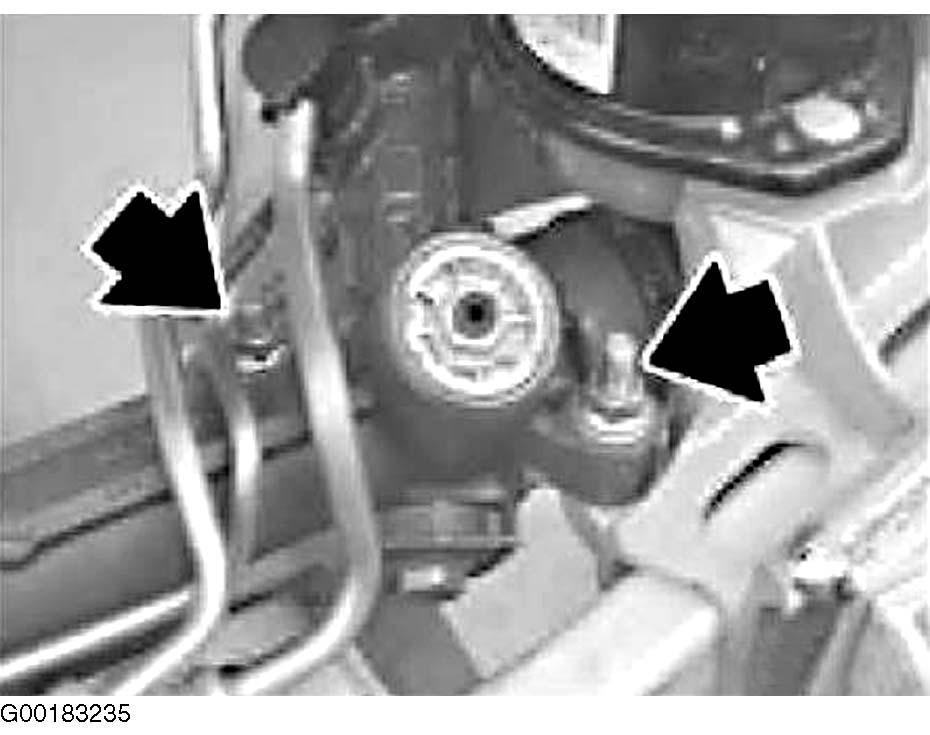

- To install, reverse removal procedure. Replace self-locking nuts. See Figure. Tighten to specification. See TORQUE SPECIFICATIONS .
- Ensure ball pin and bore of tie rod are both free of grease. Replace self-locking nut. Grip at Torx socket if necessary. Tighten to specification. See TORQUE SPECIFICATIONS .

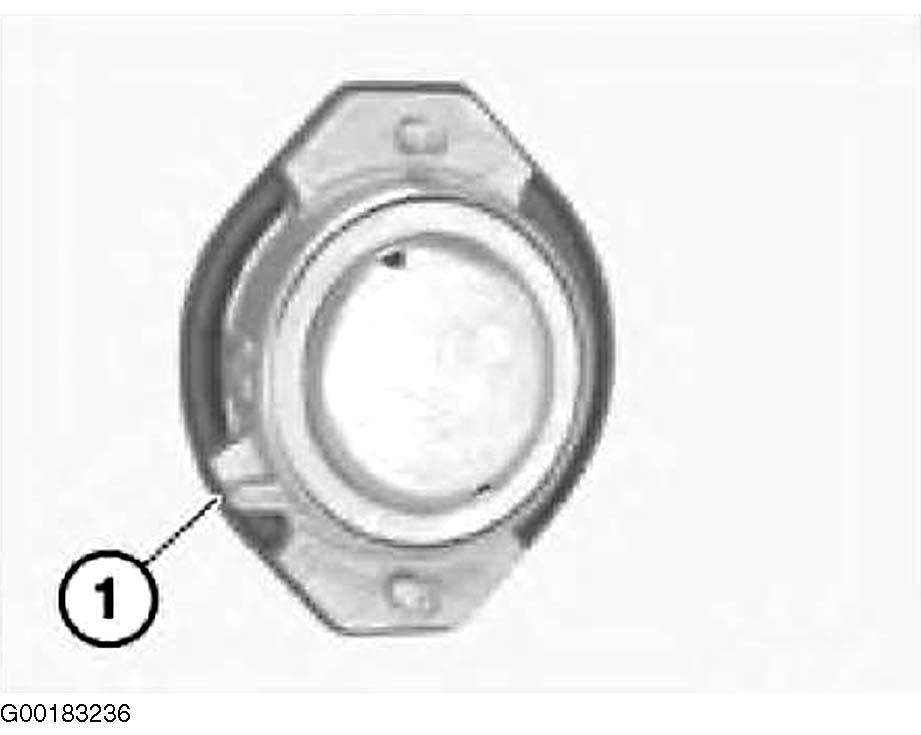

- Lug (1) of engine mounts must point to middle of vehicle. See Fig 1. The even component number is the right engine mount and the odd number is the left.
- Install front axle support. See FRONT - E65 article in SUSPENSION.
- Bleed power steering system. See BLEEDING POWER STEERING SYSTEM under LUBRICATION.
- Adjust front axle after assembly. See SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.
