Checking For Zero Clearance

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move steering wheel back and forth and check for zero clearance. See Fig 1.
  2. There must be no clearance between tie rod arm (2) and tie rod joint (1). See Fig 1.

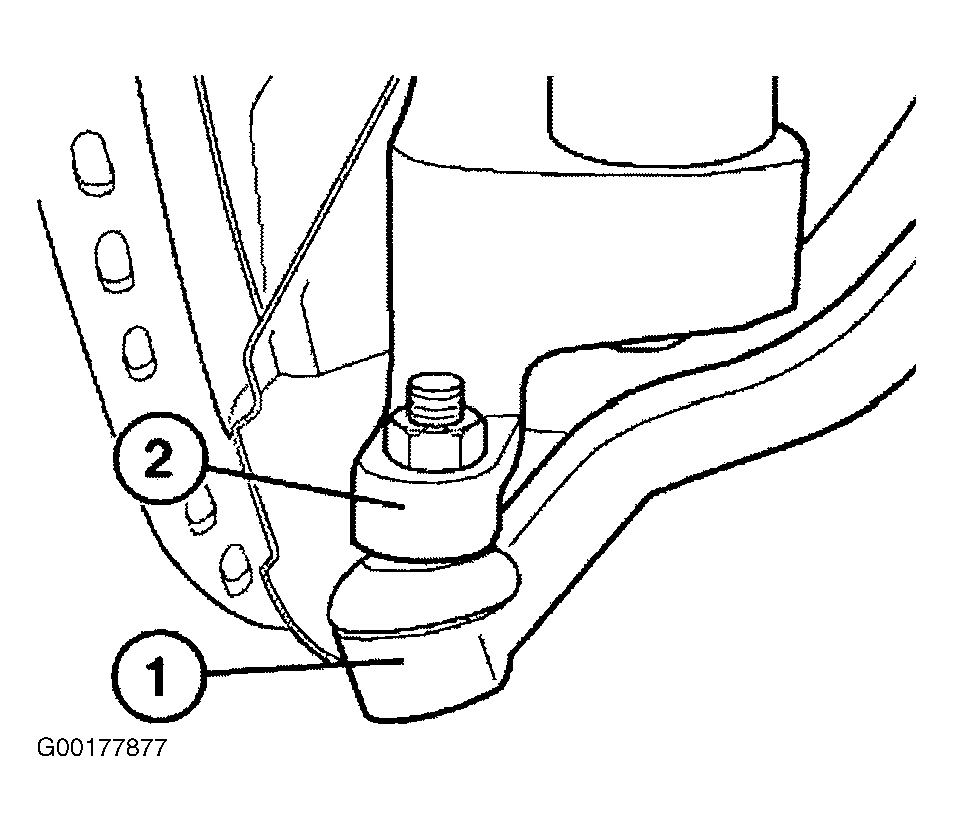

Fig 1: Identifying Tie Rod Assembly
G00177877Courtesy of BMW OF NORTH AMERICA, INC.
