84 11 627 Removing and installing (replacing) transmit-receive unit

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
Remove and install left luggage compartment wheel arch trim refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Unlock plug connections (1) and (2) and disconnect.

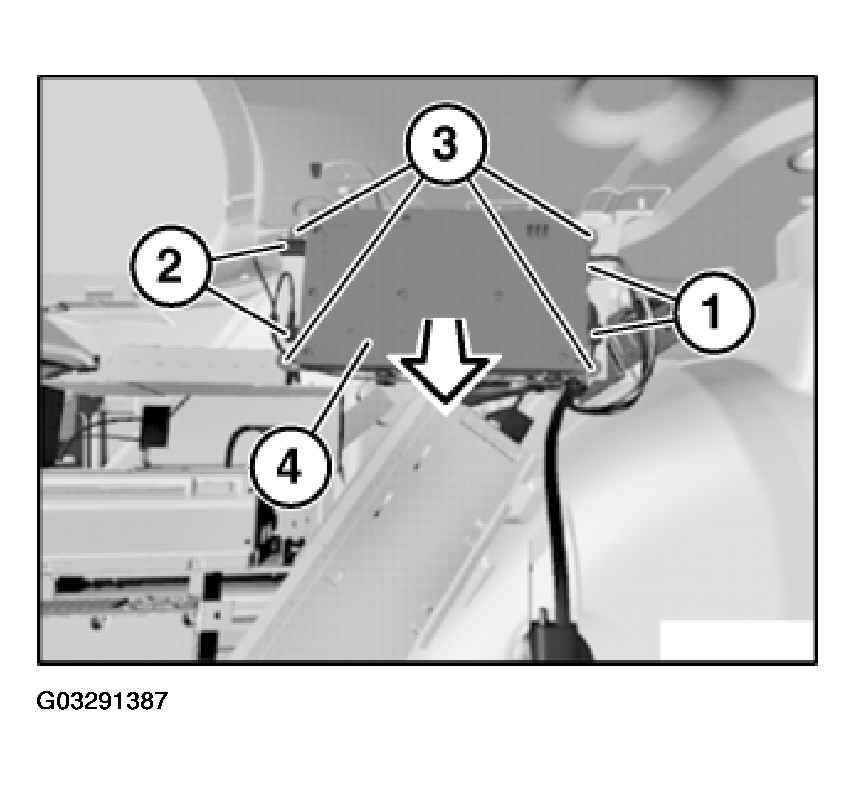

Fig 1: Removing Transmit-Receive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) and remove transmit-receive unit (4).

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
