84 11 615 Removing and installing/replacing eject box (in rear center armrest)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Fold down center armrest.

Open upper armrest section.

Attach special tool 00 9 341 as illustrated.

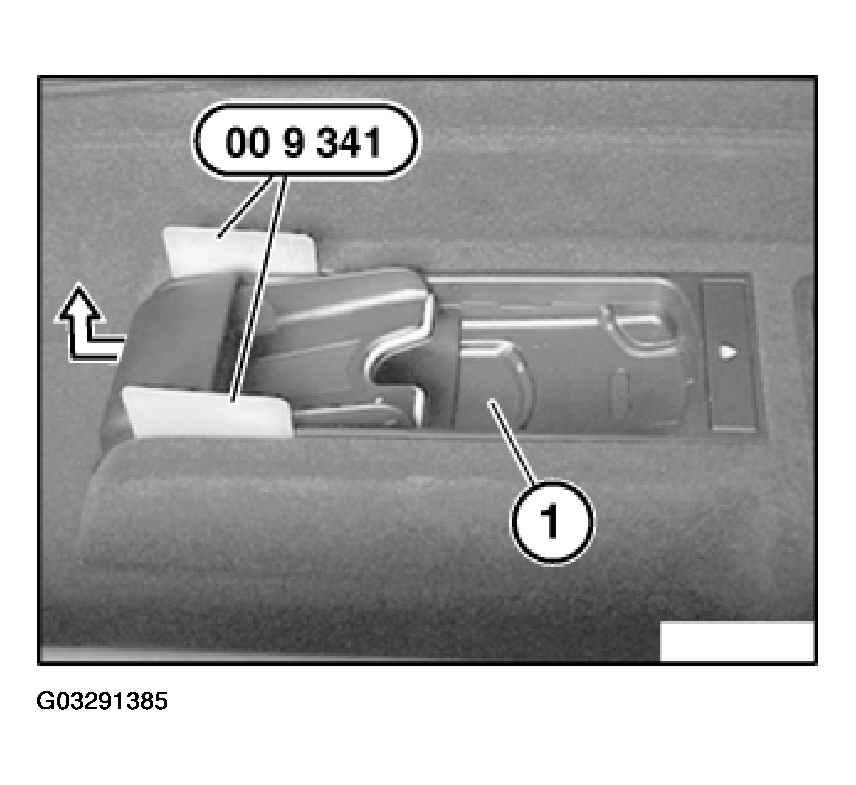

Fig 1: Attaching Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip eject box (1) in direction of arrow and remove.

Unlock plug connection (1) and disconnect.

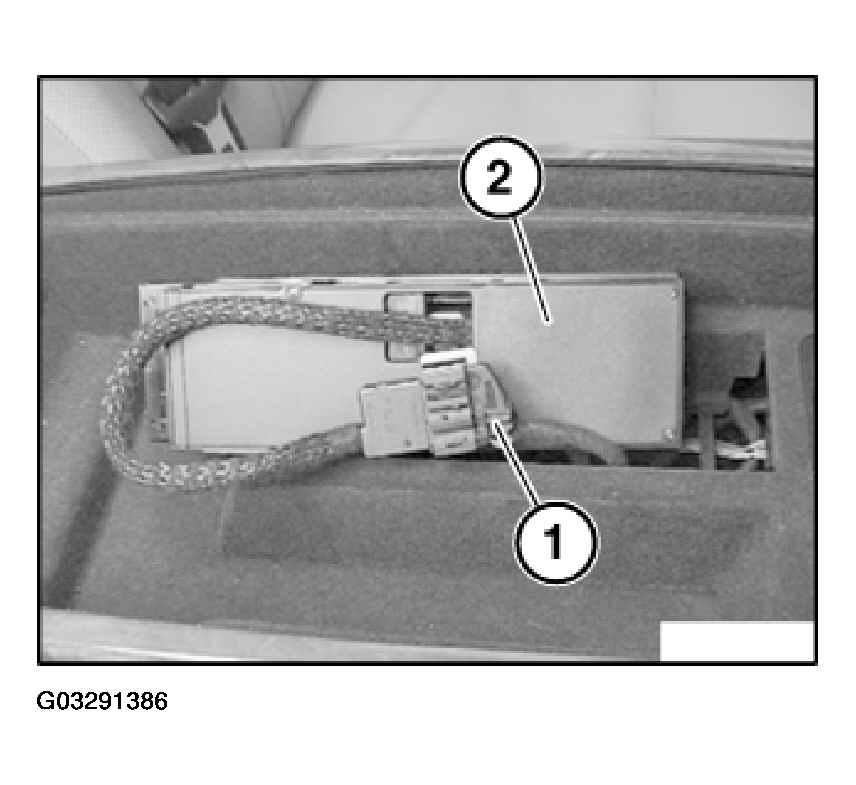

Fig 2: Removing Eject Box

Courtesy of BMW OF NORTH AMERICA, INC.

Remove eject box (2).
