84 11 610 Removing and installing/replacing eject box (cordless keypad handset)
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 322
- 00 9 341
Unlock and open storage tray (drawer).
CAUTION:
To avoid scratches, cover decorative trims with a protective cover (1).
Detach storage tray (4) as follows from function carrier:

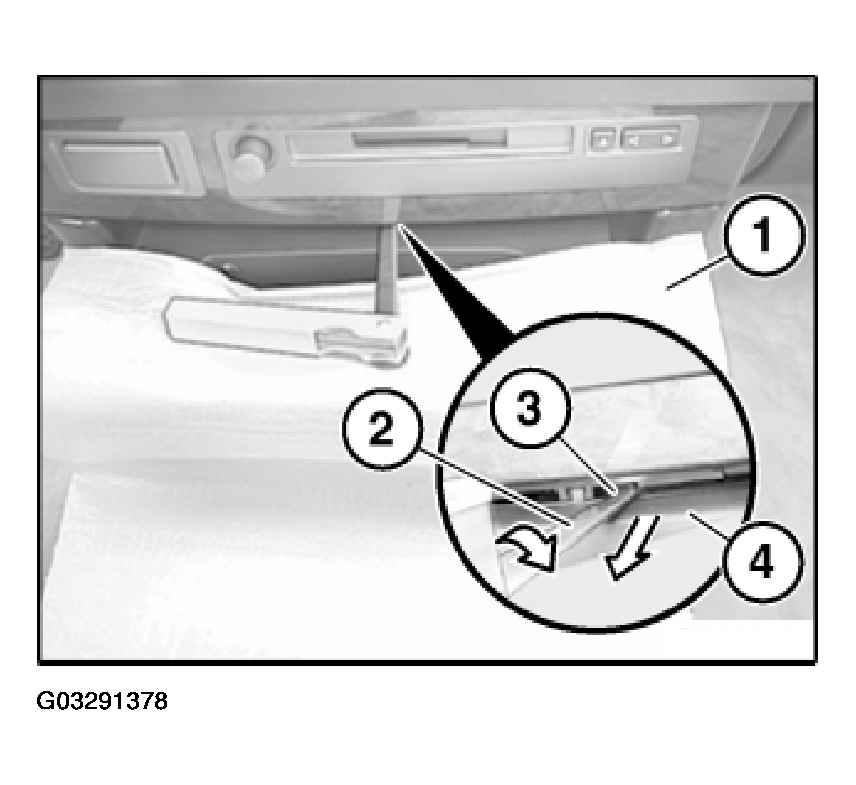

- Release lock (3) by turning with a 1 mm feeler gauge (2).
- Pull storage tray (4) towards rear out of function carrier and set down on protective cover (1).
Press button (1) and remove SIM card holder (2).
NOTE:
Follow next work step for removal (risk of damage).
Special tools 00 9 322 and 00 9 341 required.
Special tools 00 9 322 and 00 9 341 required.

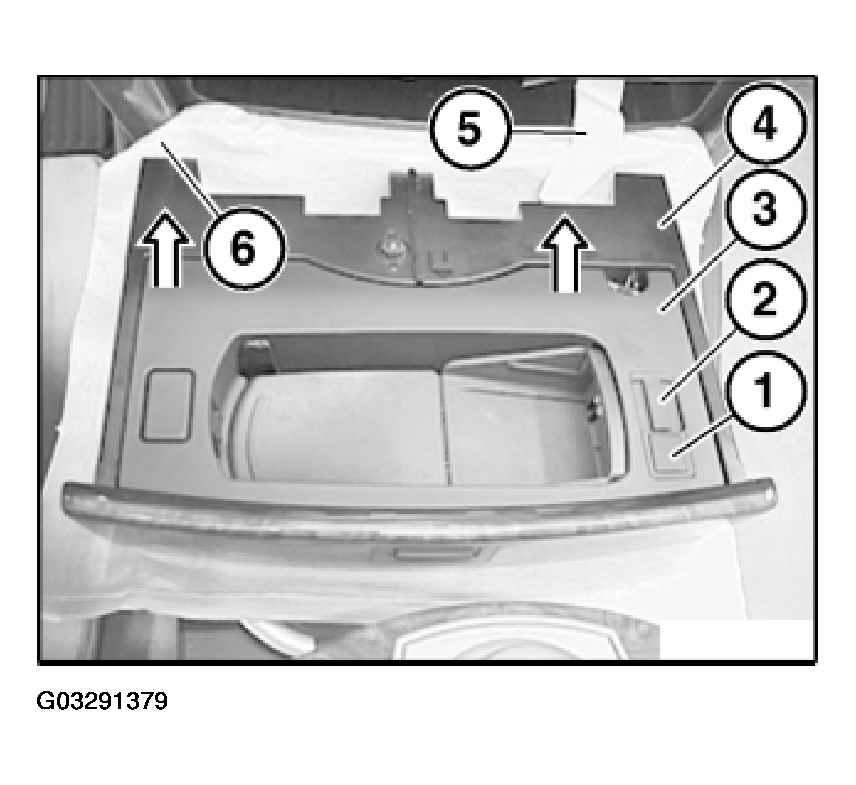

Lever cover (3) in direction of arrow out of storage tray (4).
CAUTION:
Do not damage ribbon cable (5).
NOTE:
(6) = Protective cover
Removing:
If fitted, release catches (4) with special tool 00 9 322.
Installation:

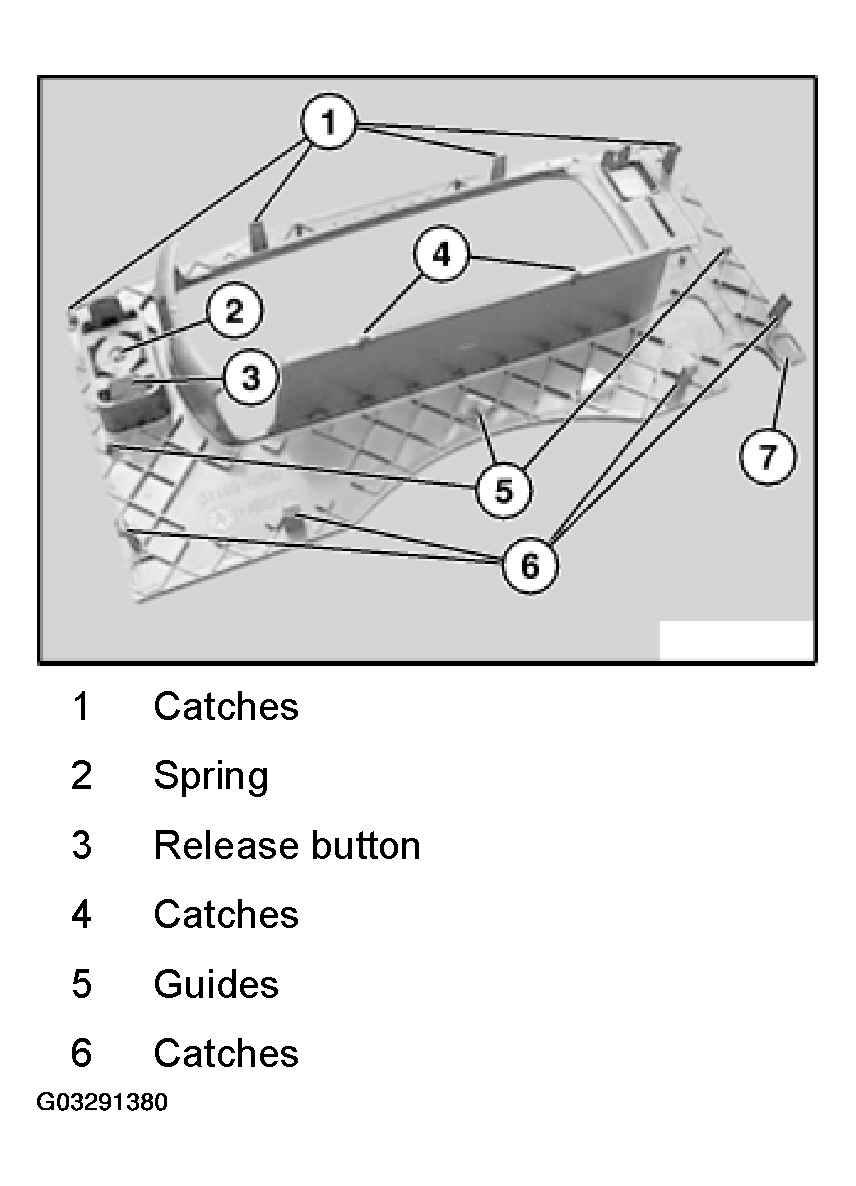

Following parts of cover (7) must not be damaged or missing:
CAUTION:
Do not under any circumstances touch circuit board (2) with hands (risk of damage).

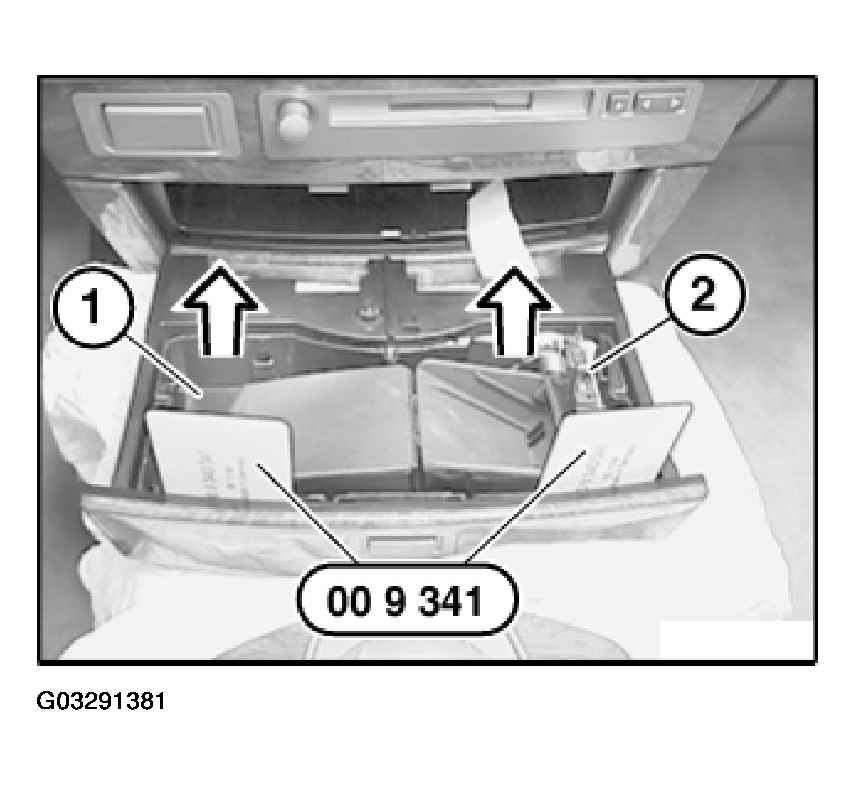

Using special tool 00 9 341, unlock insert (1) and pull out slightly in direction of arrow.
CAUTION:
Do not under any circumstances touch circuit board (2) with hands (risk of damage).

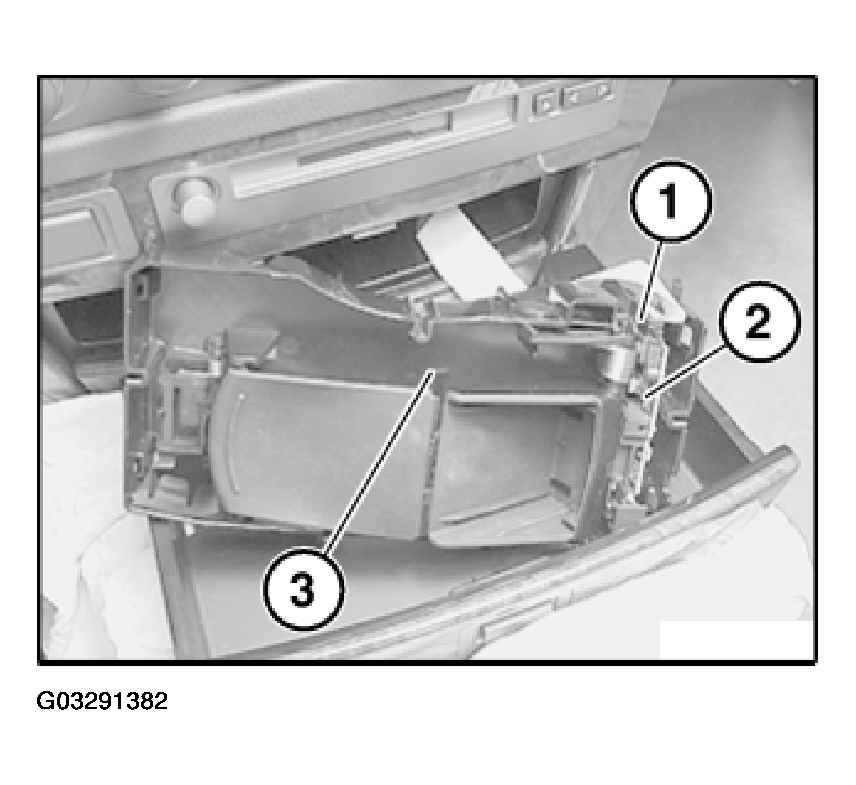

Disconnect plug connection (1).
Remove insert (3).
Installation:

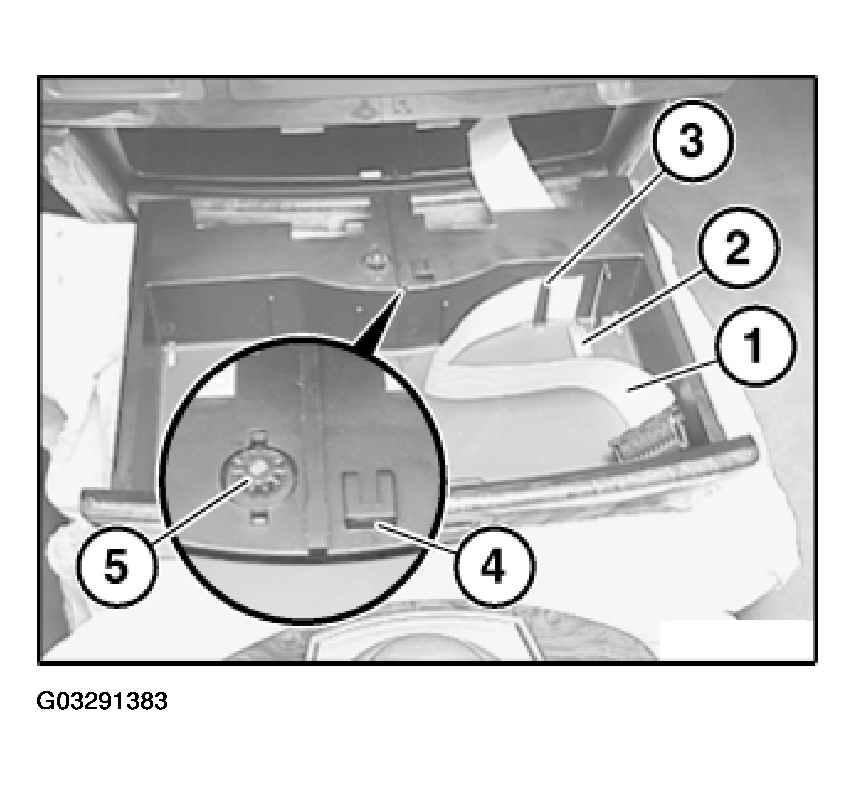

Ribbon cable (1) must be laid in guide (3).
Stop (4) and damper (5) must not be damaged.
NOTE:
A hand mirror (4) will be required for viewing.
Installation:

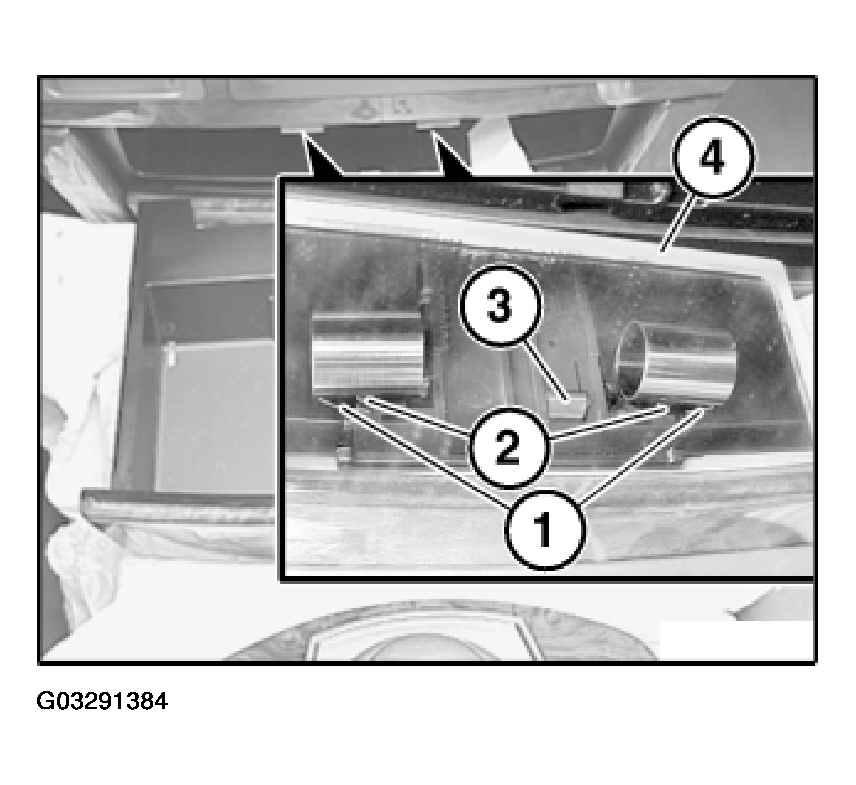

Springs (1) must be correctly connected in mountings (2).
Catch (3) must not be damaged.
