84 11 550 Removing and installing/replacing hands-free microphone

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out microphone trim (1) at front in direction of arrow.

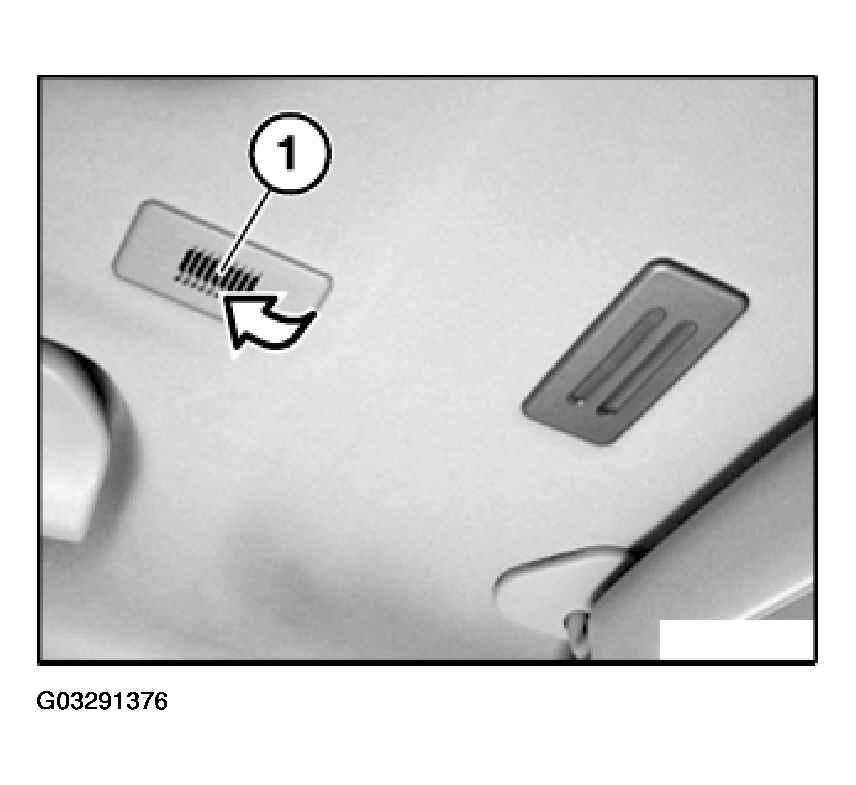

Fig 1: Removing Microphone Trim At Front

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove microphone trim (1).

Unlock detent lug (1) and feed out hands-free microphone (2) in direction of arrow.

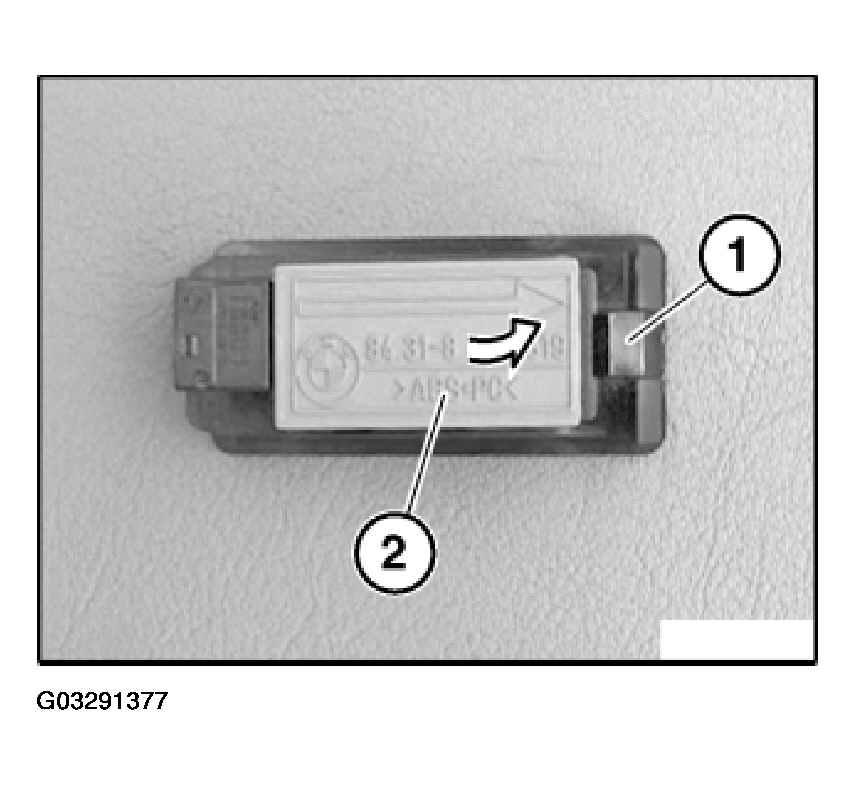

Fig 2: Removing Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Arrow on hands-free microphone (2) points in driving direction.
