84 50 033 Removing and installing/replacing multiband telephone antenna: Removal
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Further removal of multiband telephone antenna is described separately from installation.
NOTE:
Clean roof.
Carefully heat up vehicle roof in antenna area with hot-air blower (max. 50 °C).
Carefully heat up vehicle roof in antenna area with hot-air blower (max. 50 °C).

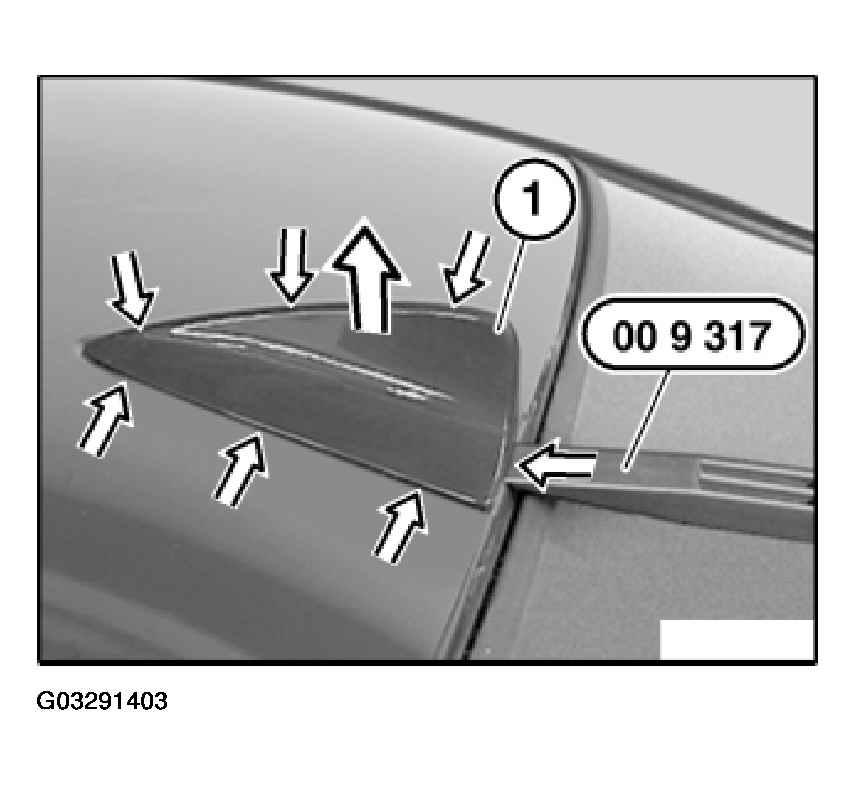

Using special tool 00 9 317, release seal of multiband telephone antenna (1) all round in direction of arrow.
Raise multiband telephone antenna (1), feed out antenna leads underneath and remove multiband telephone antenna (1).
IMPORTANT:
Risk of damage!
Do not under any circumstances treat adhesive residue with scratching, grinding materials or any materials that may dissolve the paint or plastic.
Remove adhesive residue with spirit; use adhesive remover (sourcing reference: BMW Parts Service) to remove larger residues.
Do not under any circumstances treat adhesive residue with scratching, grinding materials or any materials that may dissolve the paint or plastic.
Remove adhesive residue with spirit; use adhesive remover (sourcing reference: BMW Parts Service) to remove larger residues.
