67 62 000 Removing and installing/replacing flat motor for front left or right power window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove function carrier in front door, refer to 51 21 035 REMOVING AND INSTALLING/REPLACING FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR

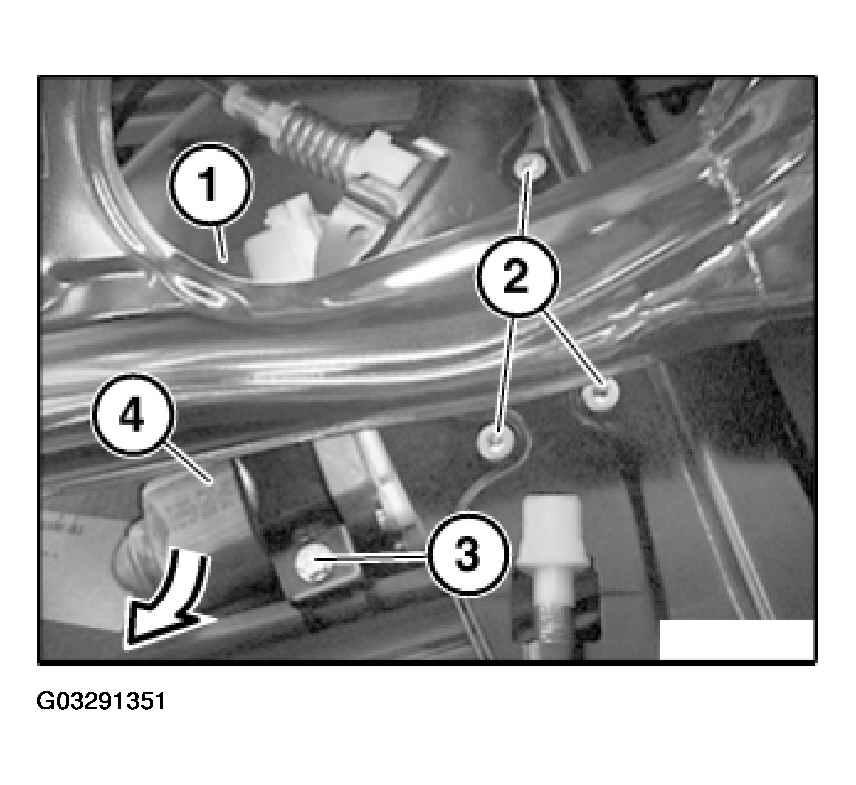

Unlock plug connection (1) and disconnect.

Fig 1: Removing Flat Motor For Power Window

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2), tightening torque 51 33 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES - 745I - E65 .

Slacken screw (3) on retaining clip.

Press flat motor for power window (4) towards rear out of mounting and feed out in direction of arrow.

Installation:

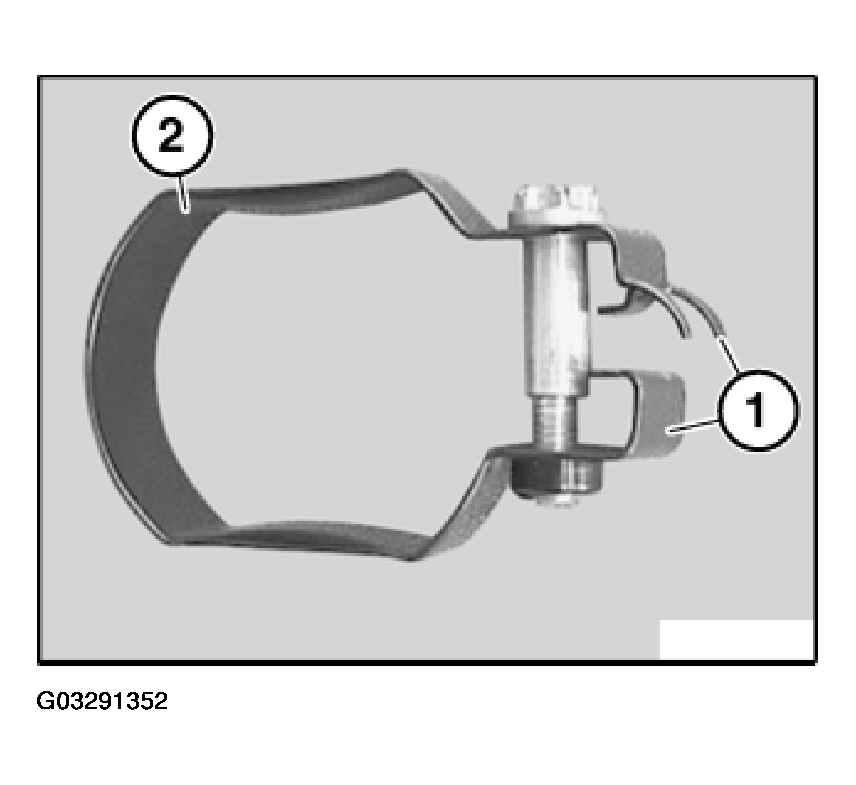

Make sure guides (1) are correctly seated when fitting retaining clip (2).

Fig 2: Identifying Correctly Seated Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
