67 33 510 Removing and installing/replacing servolock drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for tail panel at top, refer to 51 46 050 REMOVING AND INSTALLING / REPLACING TRIM FOR REAR PANEL AT TOP

Unfasten plug connection (1) and disconnect.

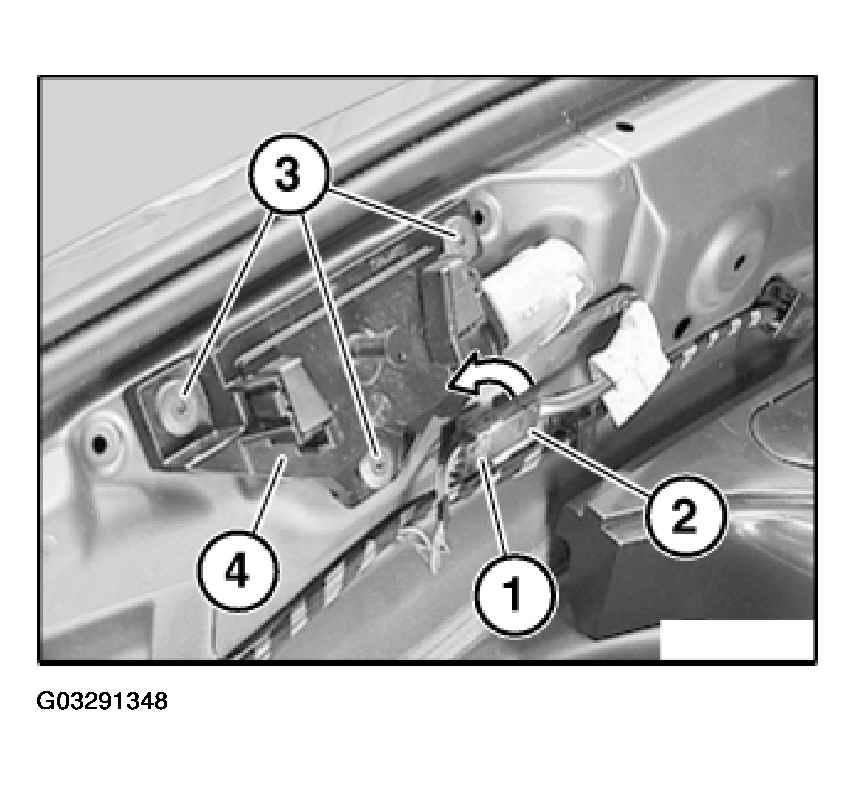

Fig 1: Removing Servolock Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Turn plug housing (2) approx. 45° in direction of arrow and unclip.

Release screws (3) and remove servolock drive (4).

Installation:

Adjust rear lid lock, refer to 51 24 004 ADJUSTING REAR LID LOCK (LOWER SECTION OF REAR LID LOCK)
