67 65 010 Removing and installing or replacing drive unit for roller sun blind

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove roller sun blind, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF

Release screw (1).

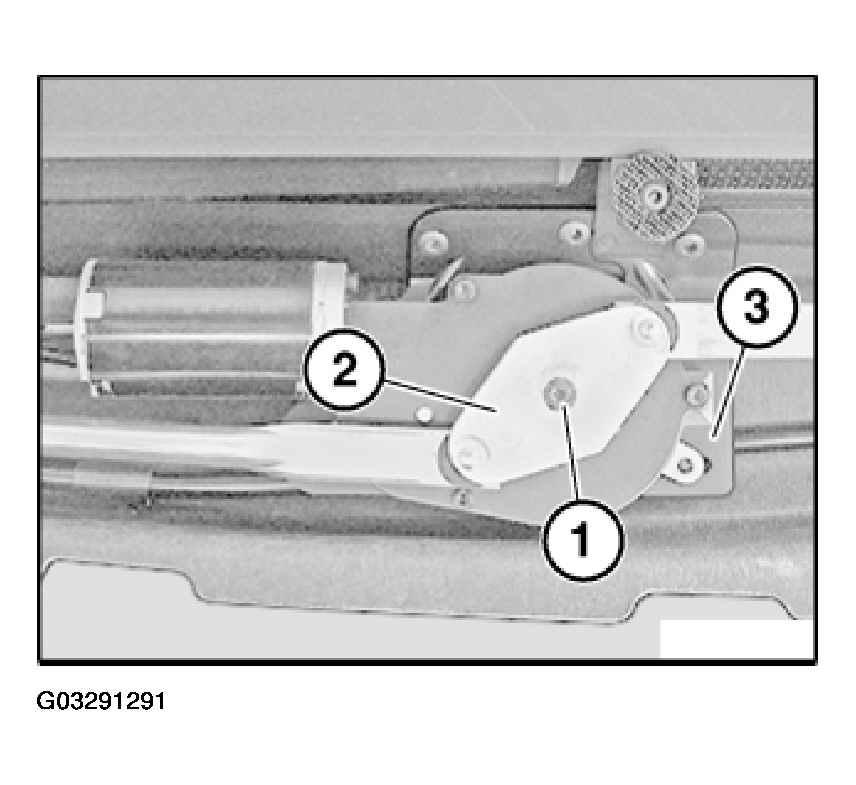

Fig 1: Removing Drive Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive linkage (2).

Mark installation position of servodrive on bracket (3).

Installation:

Ensure correct cable routing.

NOTE: Do not damage electrical lead for roller sun blind drive unit when drilling.

Arrange bores according to dimensions (A - D) and release screws underneath for roller sun blind drive unit.

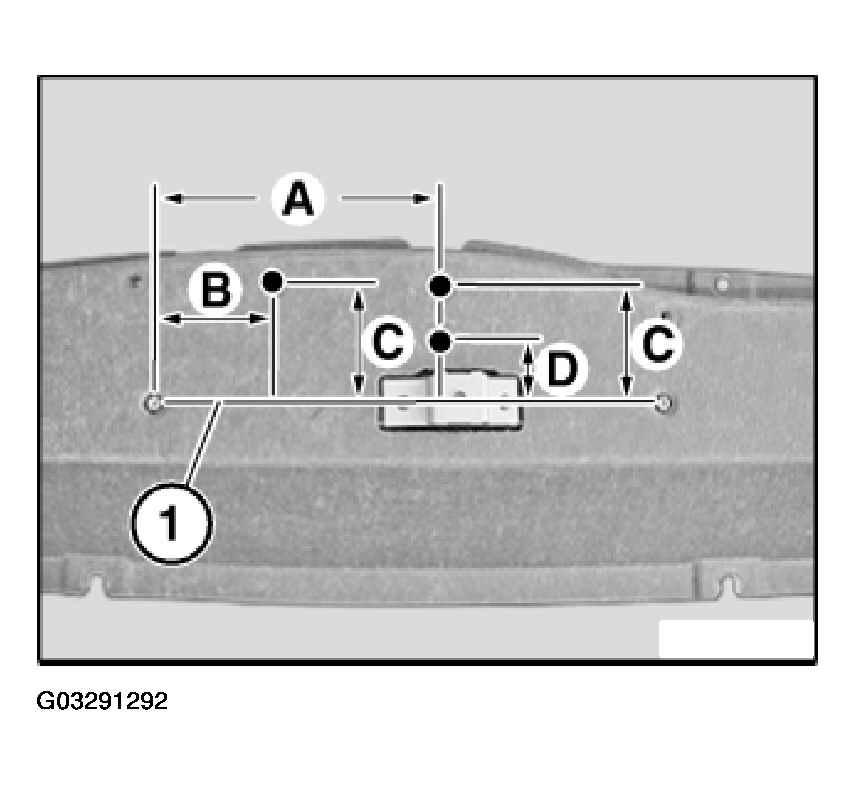

Fig 2: View Of Bore Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roller sun blind drive unit.

Dimensions from reference line (1):

A = 155 mm

B = 60 mm

C = 60 mm

D = 30 mm

NOTE: Drive linkage (2) can only be installed in one position.

Installation:

Install drive linkage (2) and insert screw (1).

Fig 3: Installing Drive Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Secure drive unit to bracket (3).

Tighten screw (1).
