65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear speaker box. Refer to 65 13 180 REMOVING AND INSTALLING/REPLACING REAR SPEAKER BOX (IN REAR SHELF) .

Release screws (1).

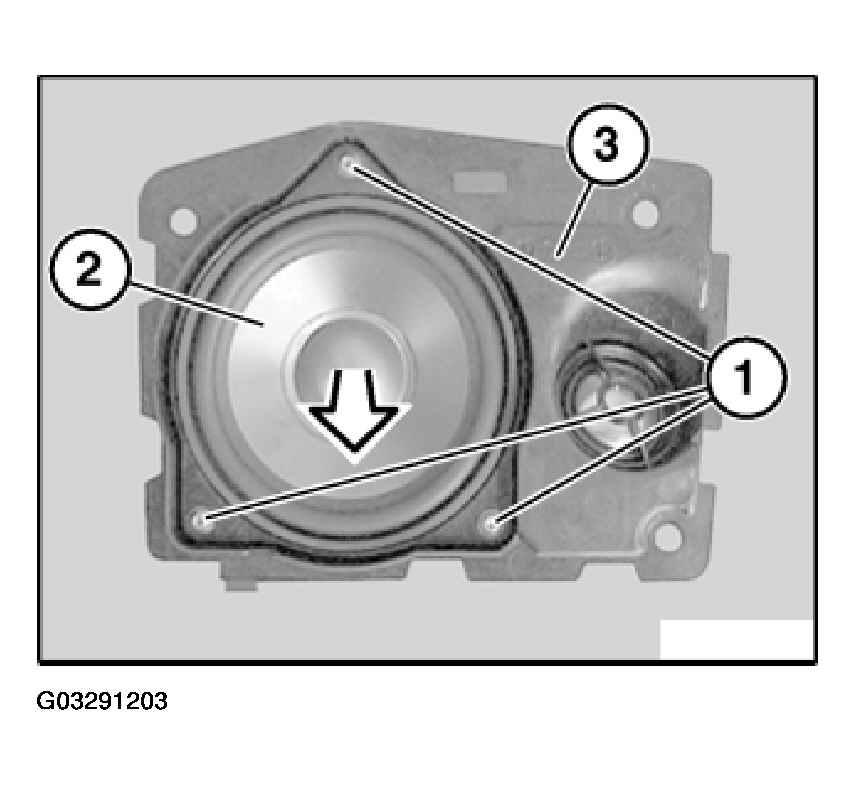

Fig 1: Removing Mid-Range Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath.

Remove mid-range speaker (2) upwards from speaker box (3).
