65 13 060 Removing and installing/replacing speaker (mid-range speaker, in instrument panel)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove speaker trim. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

Release screws (1).

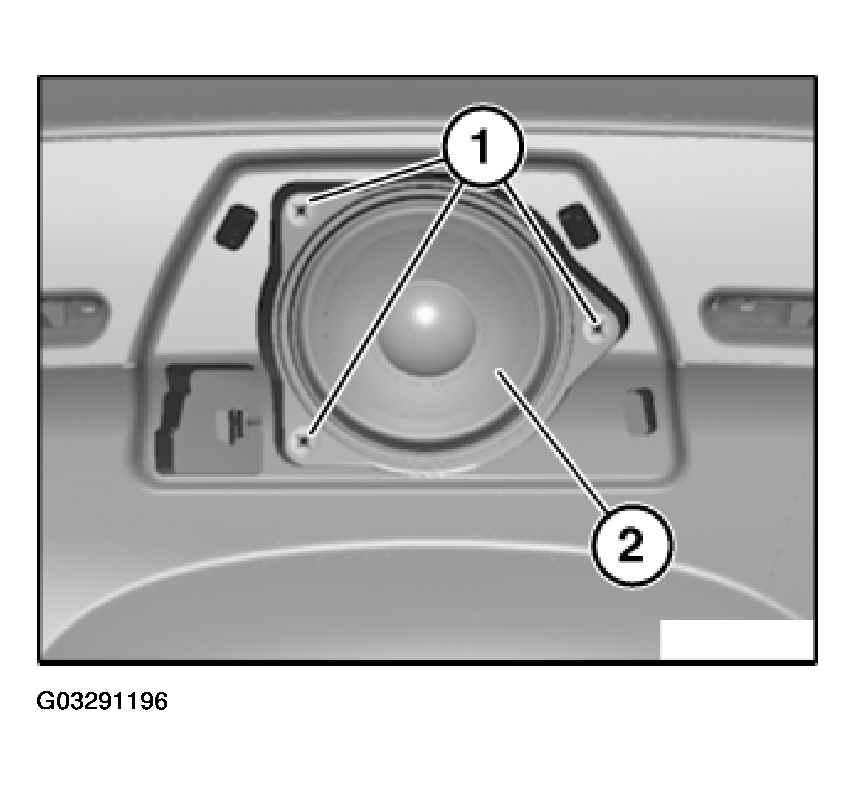

Fig 1: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Remove speaker (2).

Disconnect plug connection underneath and remove speaker (2) towards top.
