65 13 050 Removing and installing/replacing speaker (treble speaker, front door)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach cover on door window frame in front area. Refer to 51 32 160 REMOVING AND INSTALLING / REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME .

Unfasten plug connection (1) and disconnect.

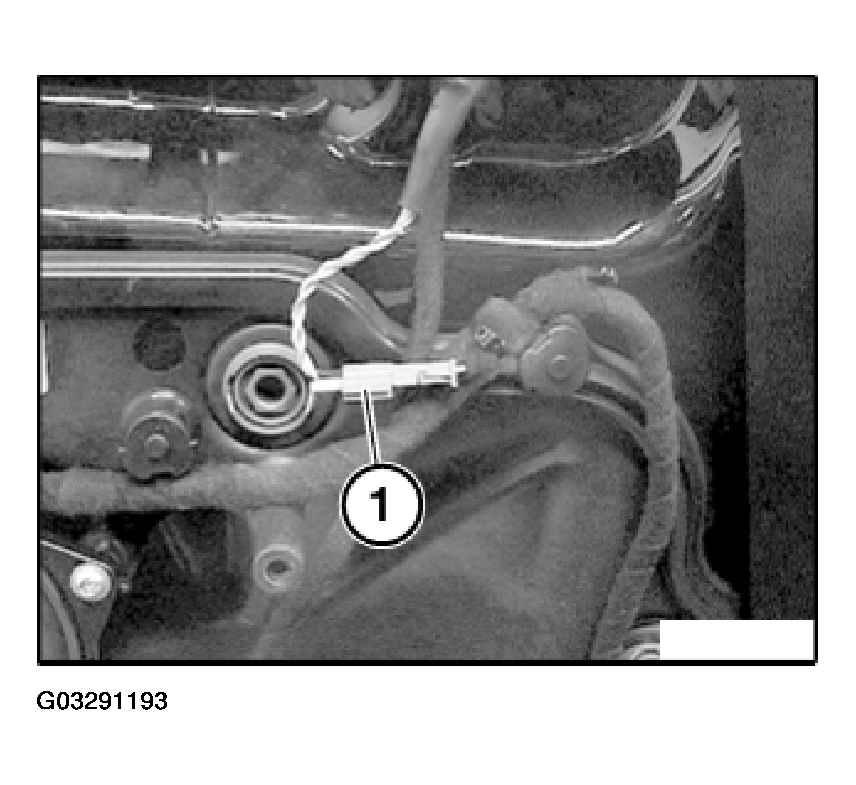

Fig 1: Unfastening And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows cover removed on door window frame.

Remove foam wedge (1) from cover on door window frame (2).

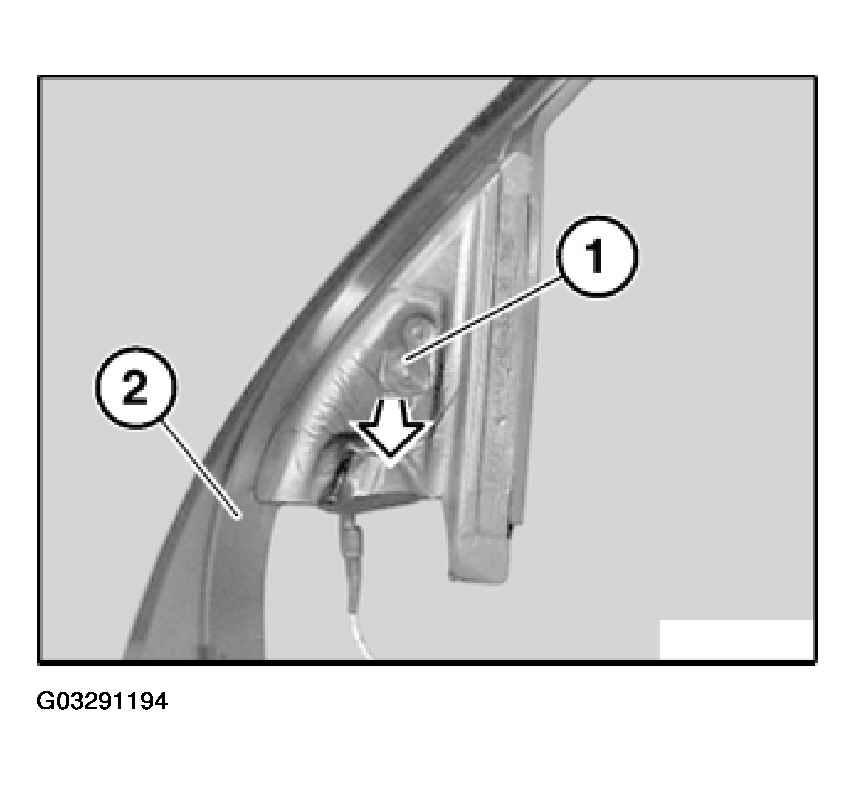

Fig 2: Removing Foam Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach speaker (2) from cover on door window frame (3) and remove.

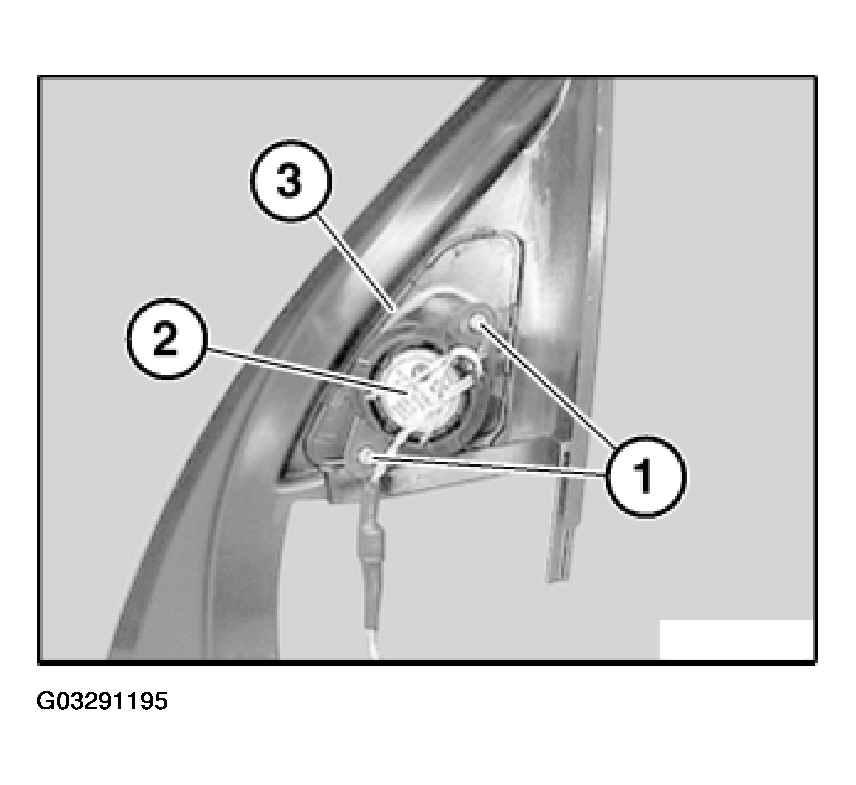

Fig 3: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
