65 00 .. Overview of audio components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

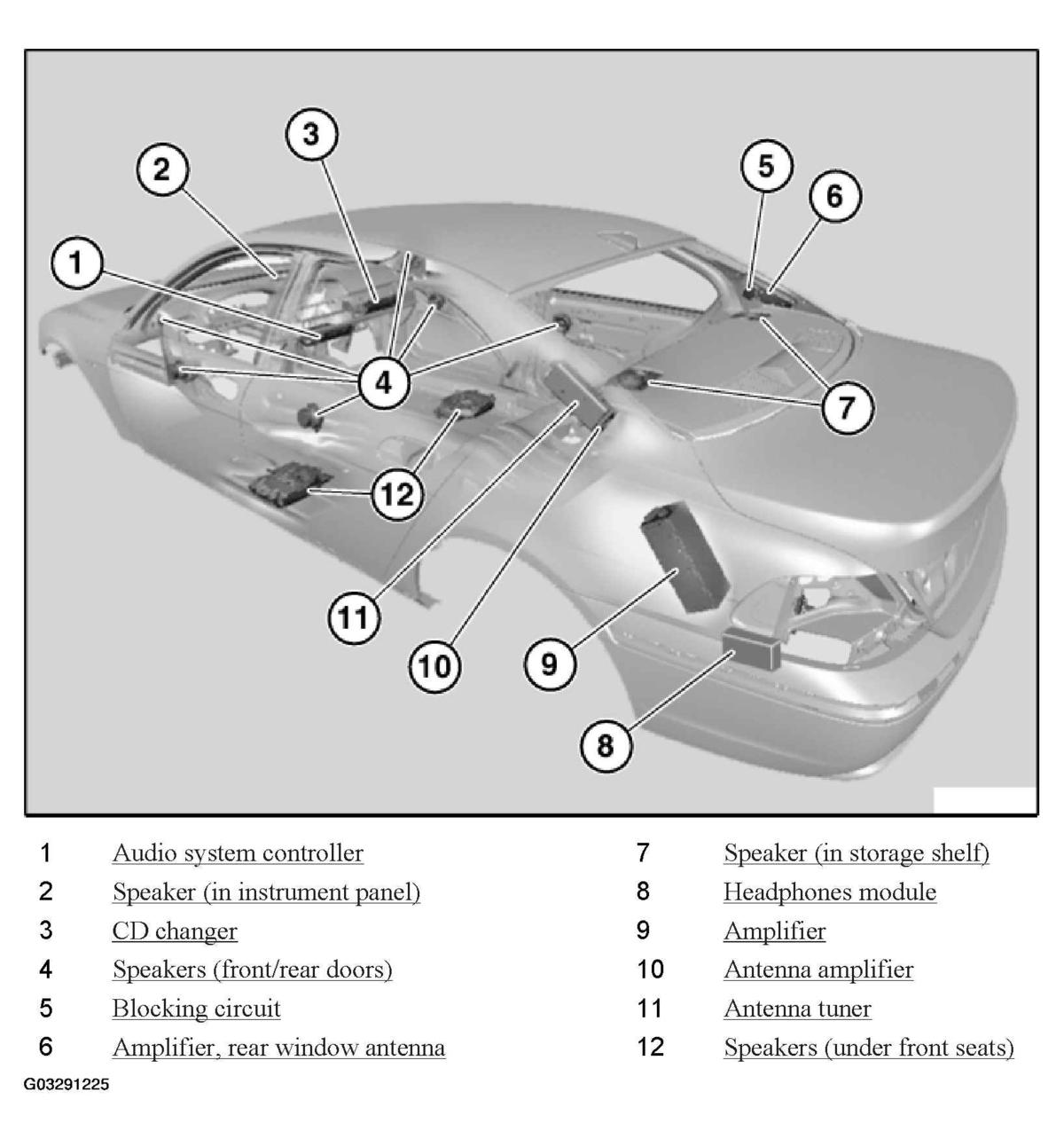

Fig 1: Overview Of Audio Components
G03291225Courtesy of BMW OF NORTH AMERICA, INC.
