65 81 060 Removing and installing/replacing external temperature sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

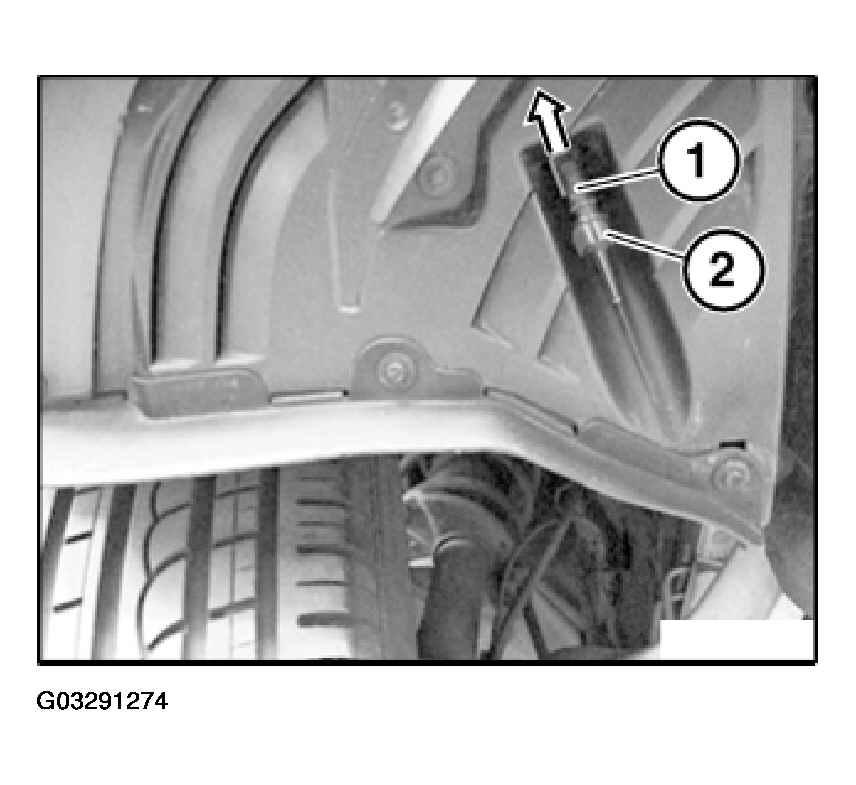

Unclip outside temperature sensor (1) in direction of arrow from mounting (2).

Fig 1: Removing/Installing External Temperature Sensor
G03291274Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure outside temperature sensor (1) is correctly engaged in mounting (2).

Pull out outside temperature sensor (1).

Disconnect plug connection and remove outside temperature sensor (1).
