65 90 511 Removing and installing (replacing) navigation computer with CD drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

65 5 400

Necessary preliminary tasks:

Remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Unlock navigation computer (1) with special tool 65 5 400 and pull out.

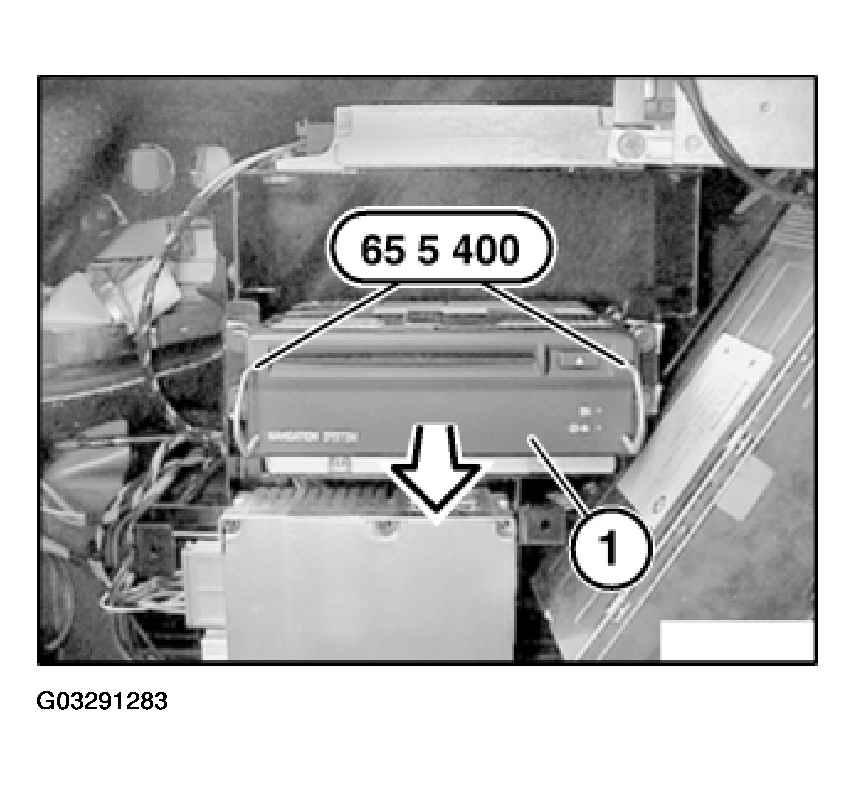

Fig 1: Removing Navigation Computer

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections behind and disconnect.

Remove navigation computer (1).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

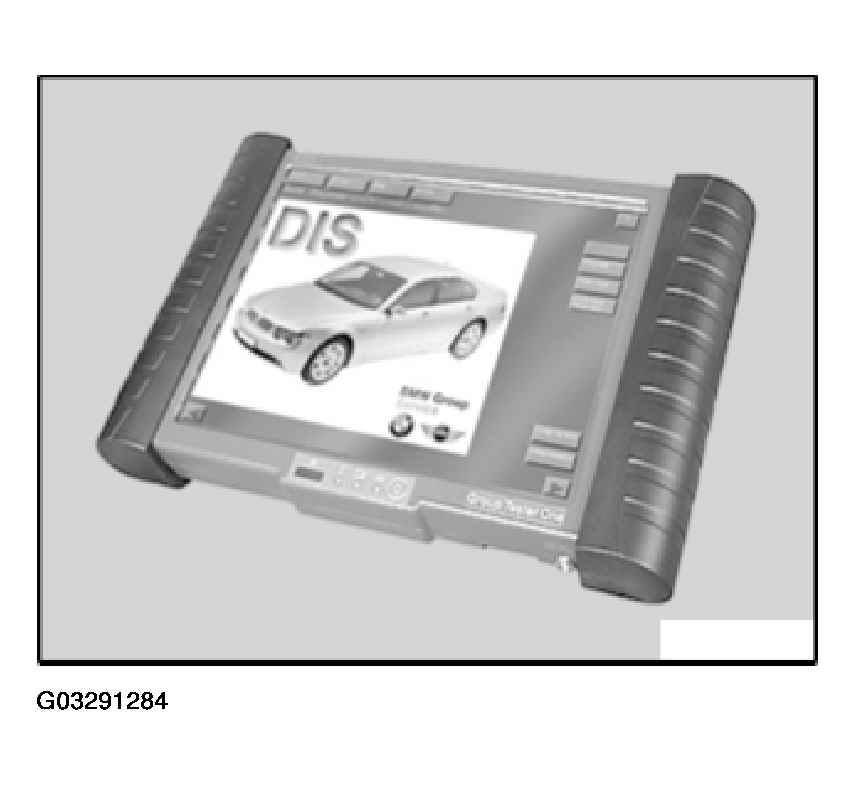

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
