65 11 ... Instructions on setting the installation location on the CD changer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To ensure trouble-free CD changer operation, ensure both suspension springs are correctly positioned (horizontal/vertical). If necessary, correct adjustment. To avoid premature contamination of the CD changer, make sure the magazine compartment flap is permanently closed.

NOTE: For purposes of clarity, the following figures show the CD changer removed.

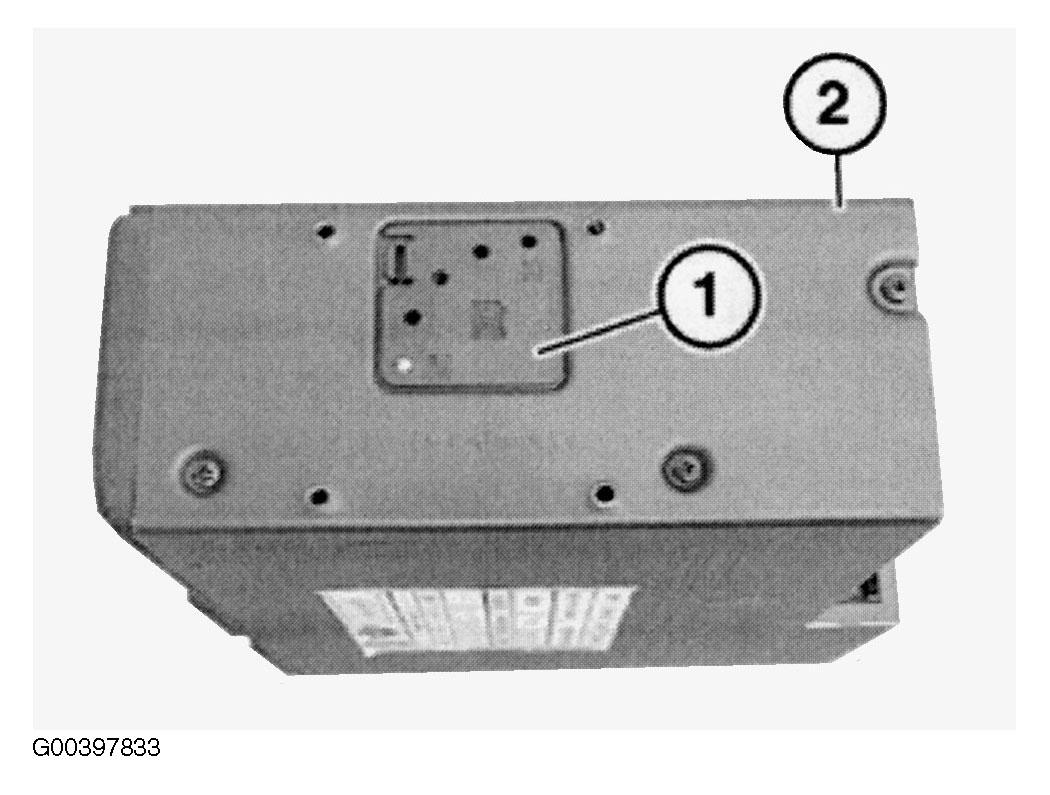

Remove cover cap (1) from CD changer (2).

Fig 1: Removing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

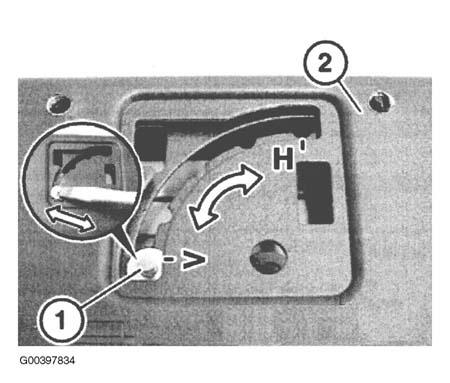

Move installation location of CD changer (1) using a suitable tool.

Fig 2: Moving Installation Location Of CD Changer

Courtesy of BMW OF NORTH AMERICA, INC.
