Special tools required:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

64 1 020

Necessary preliminary tasks:

Remove control display. Refer to 65 82 010 REMOVING AND INSTALLING (REPLACING) CONTROL DISPLAY .

Lever out lugs (1) in direction of arrow.

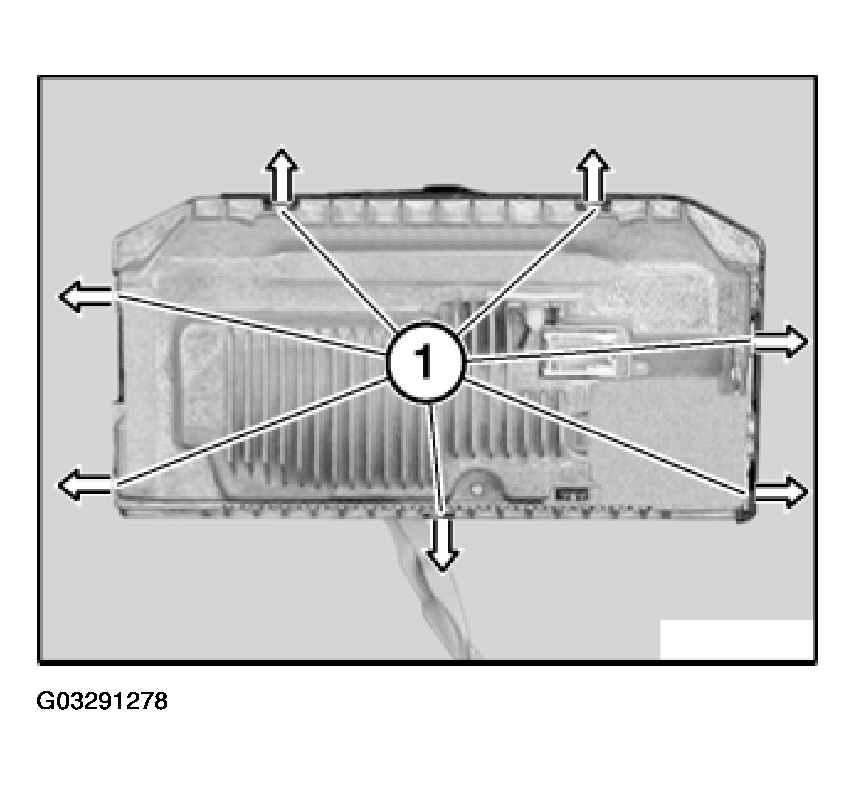

Fig 1: Levering Out Lugs

G03291278

Courtesy of BMW OF NORTH AMERICA, INC.

Lift housing of control display (1) over catches (2) using special tool 64 1 020.

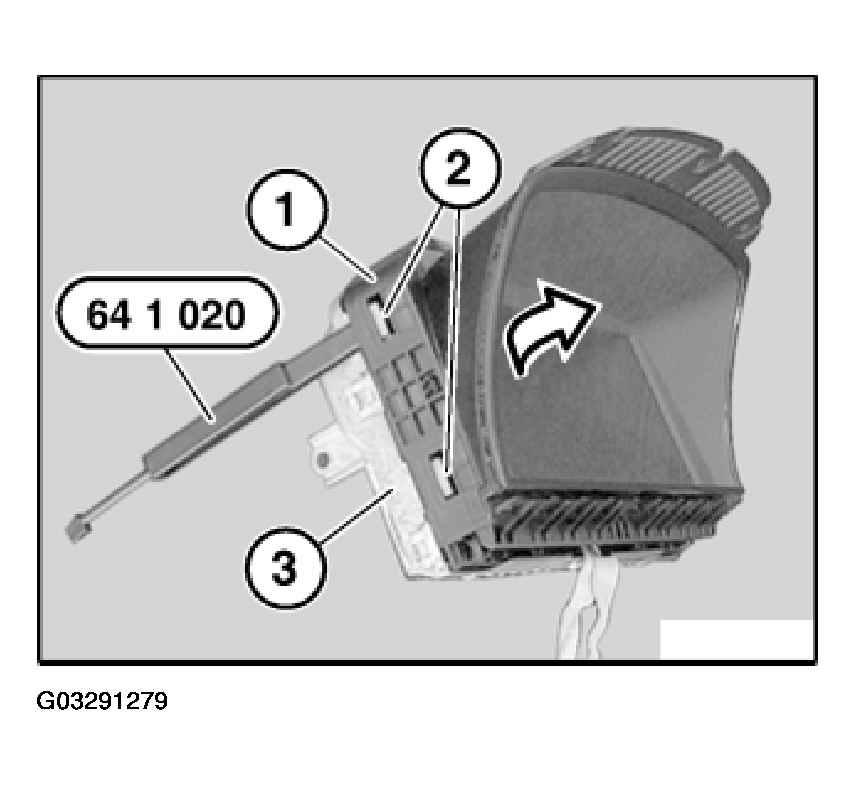

Fig 2: Folding Up Control Display

G03291279

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up control display (2) in direction of arrow and feed out of MOST CAN gateway control unit (3).

Installation:

Do not kink ribbon cables (3) when assembling control display (2) and MOST CAN gateway control unit (1).

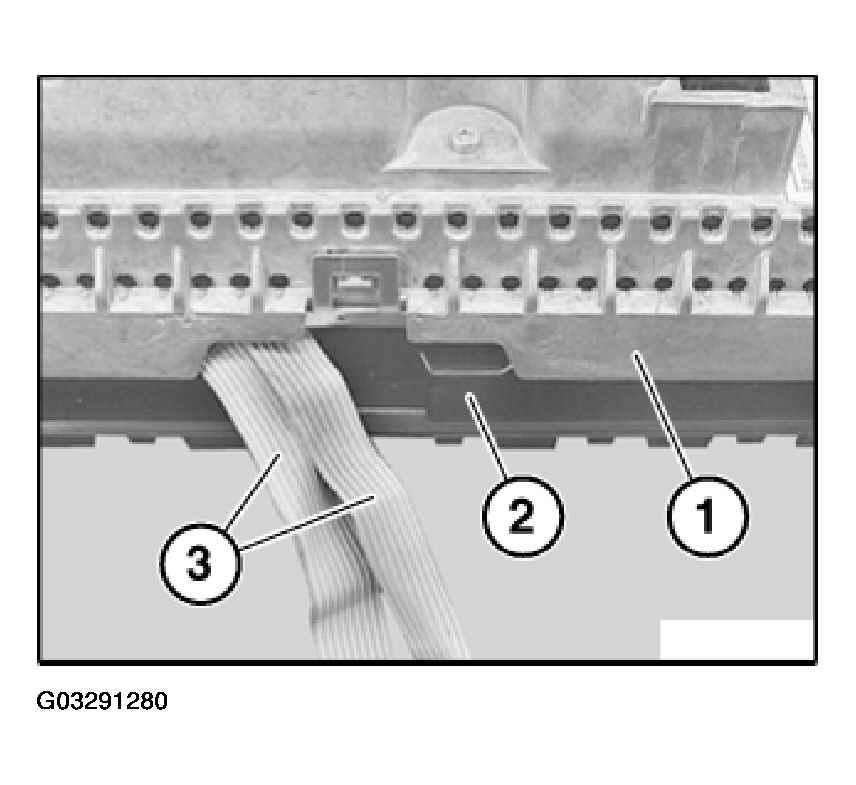

Fig 3: Identifying Ribbon Cables

G03291280

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

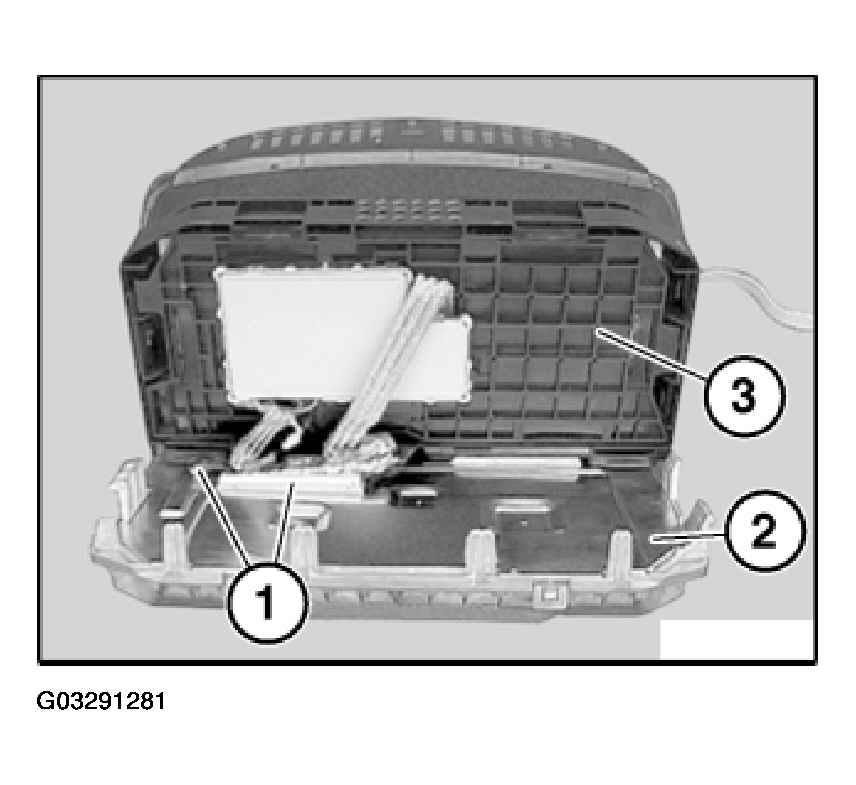

Fig 4: Removing MOST CAN Gateway Control Unit

G03291281

Courtesy of BMW OF NORTH AMERICA, INC.

Remove MOST CAN gateway control unit (2) from control display (3).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

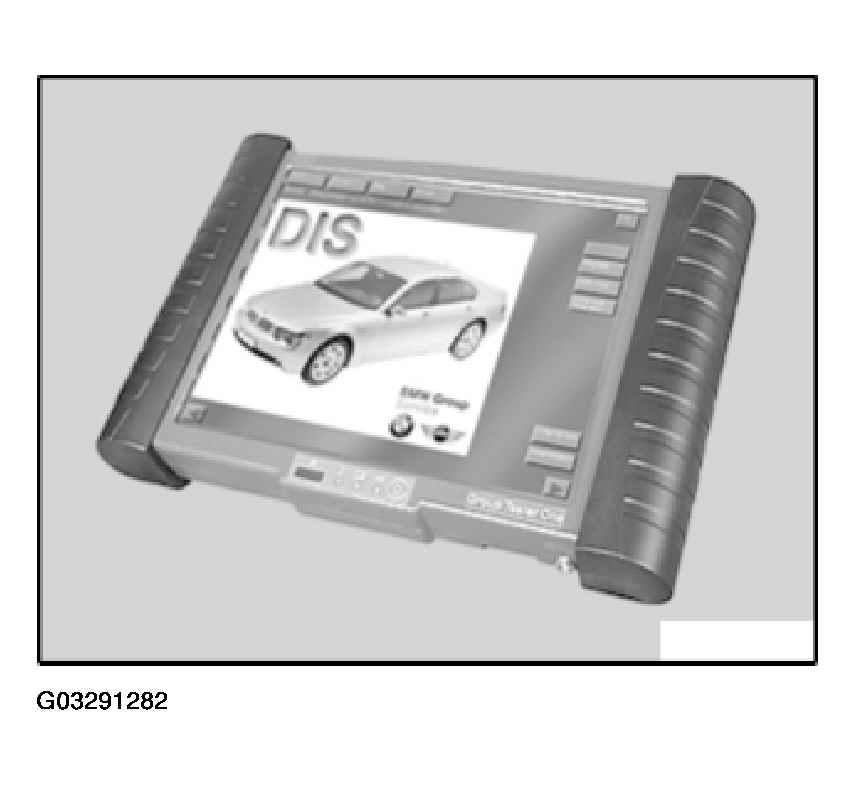

Fig 5: View Of Control Unit

G03291282

Courtesy of BMW OF NORTH AMERICA, INC.
