65 77 750 Removing and installing (replacing) driver's seat sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS
.
Incorrect handling can activate AIRBAG and cause injury.
Incorrect handling can activate AIRBAG and cause injury.
NOTE:
To facilitate installation/removal of sensor, move seat upwards fully.
Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .
Necessary preliminary tasks:
- Disconnect and cover battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

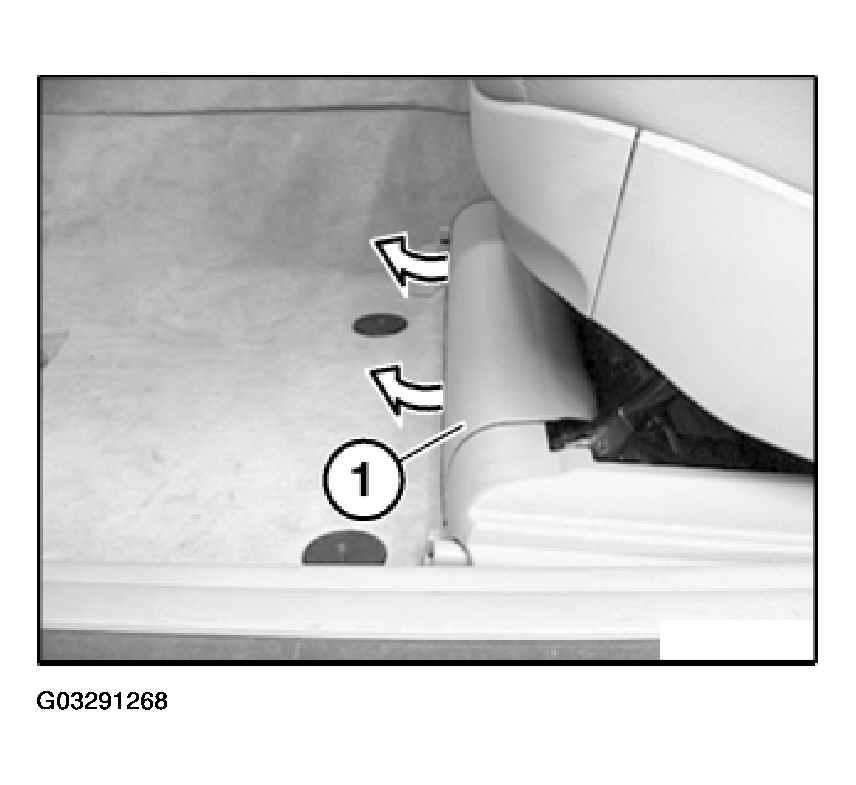

Unclip trim in upper rail at front (1) in direction of arrow and remove.

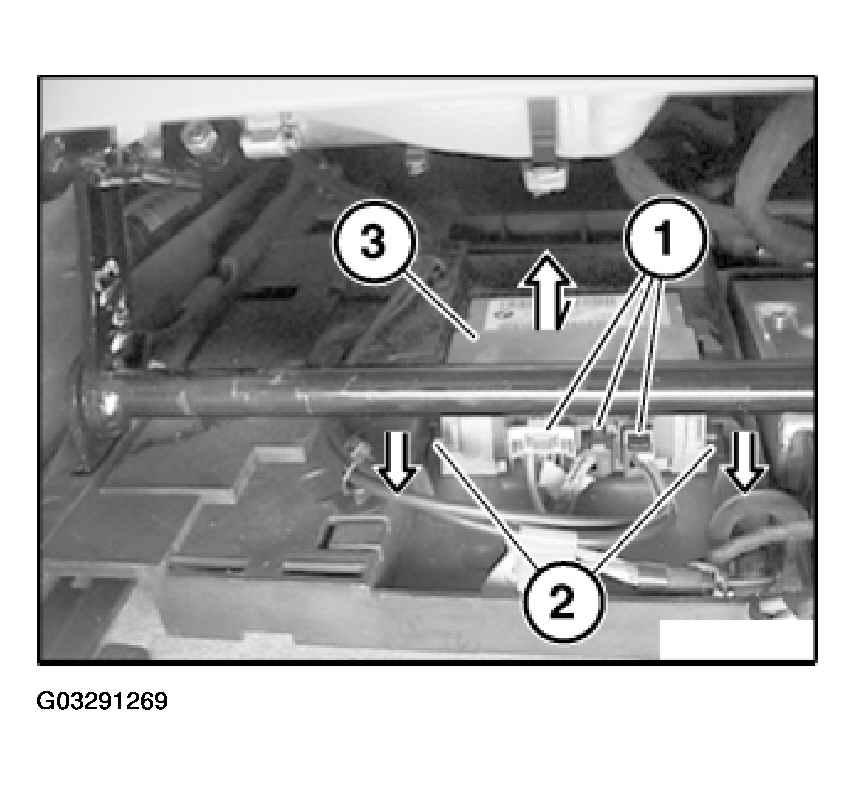

Unlock plug connections (1) and disconnect. Unlock catches (2).
Installation:
Make sure driver's seat sensor (3) is correctly engaged.
Feed out driver's seat sensor (3) in direction of arrow and remove.
Replacement:

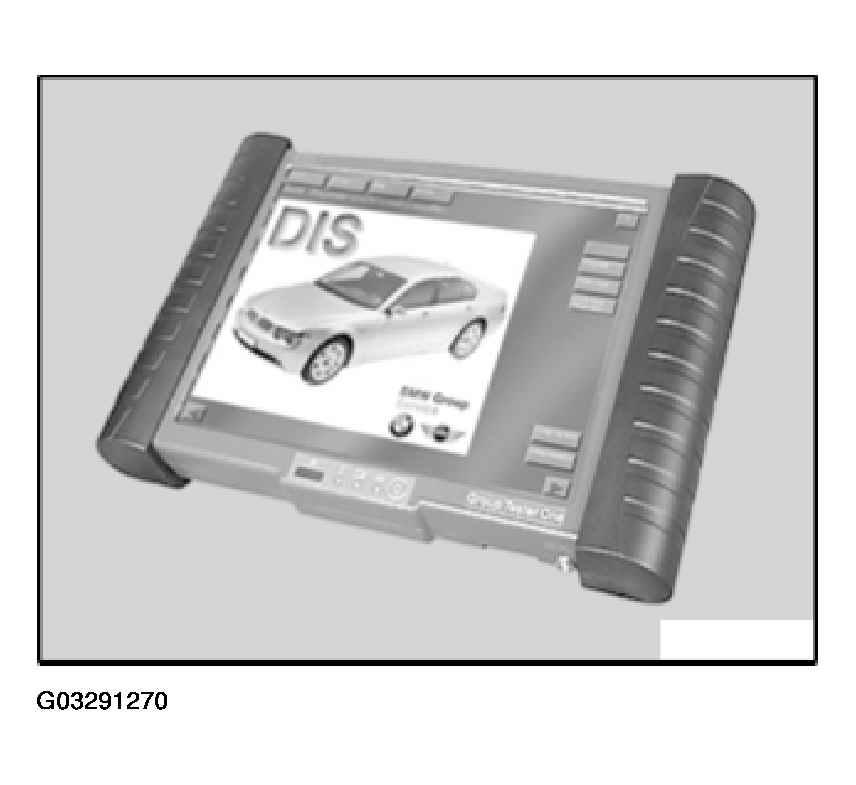

Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
