65 77 720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect handling can activate AIRBAG and cause injury.

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove panel for door pillar. Refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .
Remove retractor for front seat belt and place to one side.

Unscrew bolt (1).

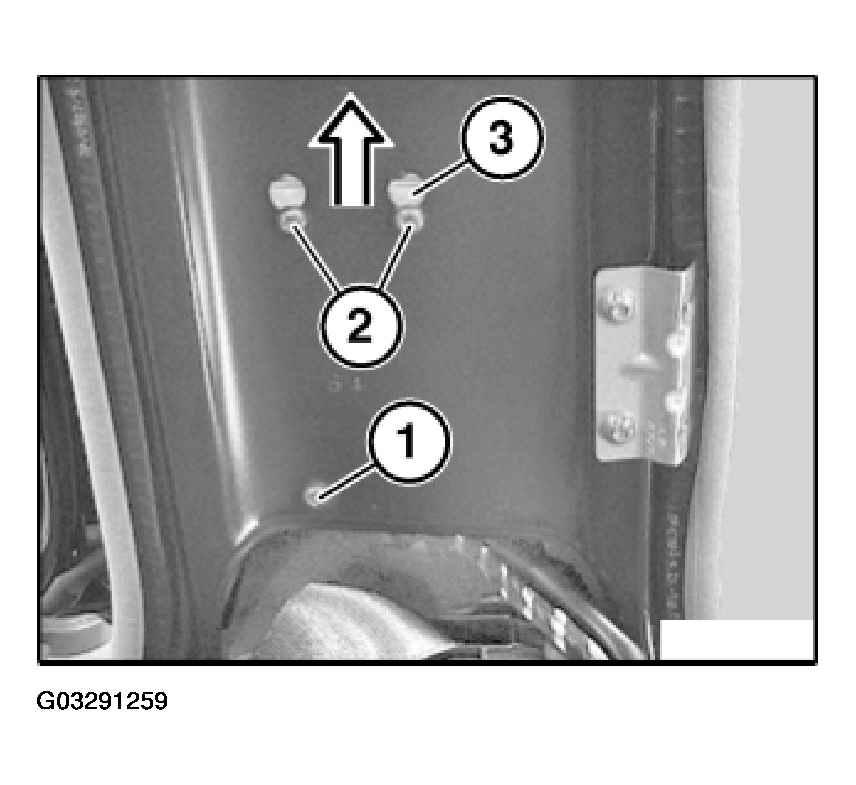

Fig 1: Removing B-Pillar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Installation:

Tightening torque 65 77 5AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - 745I - E65 .

Make sure sensor is mounted without play.

Lift B-pillar sensor (3) slightly at screws (2) and remove towards rear in B-pillar.

Unfasten plug connection (1) and disconnect.

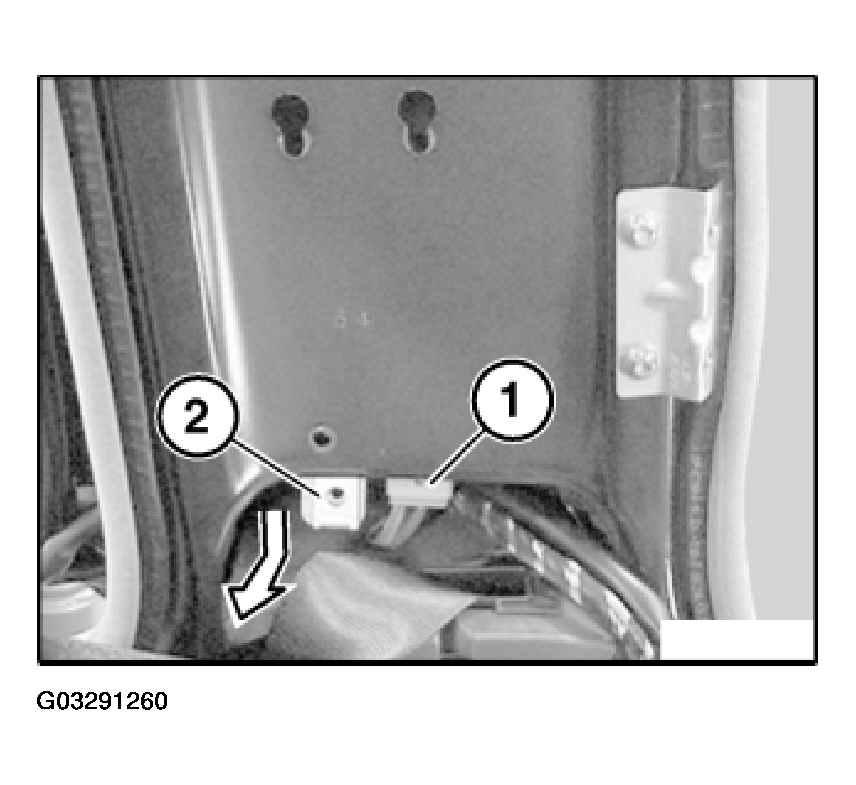

Fig 2: Feeding B-Pillar Sensor Out Of B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Feed B-pillar sensor (2) in direction of arrow out of B-pillar and remove.

Installation:

For improved positioning, guide B-pillar sensor (1) if necessary through opening in B-pillar (2).

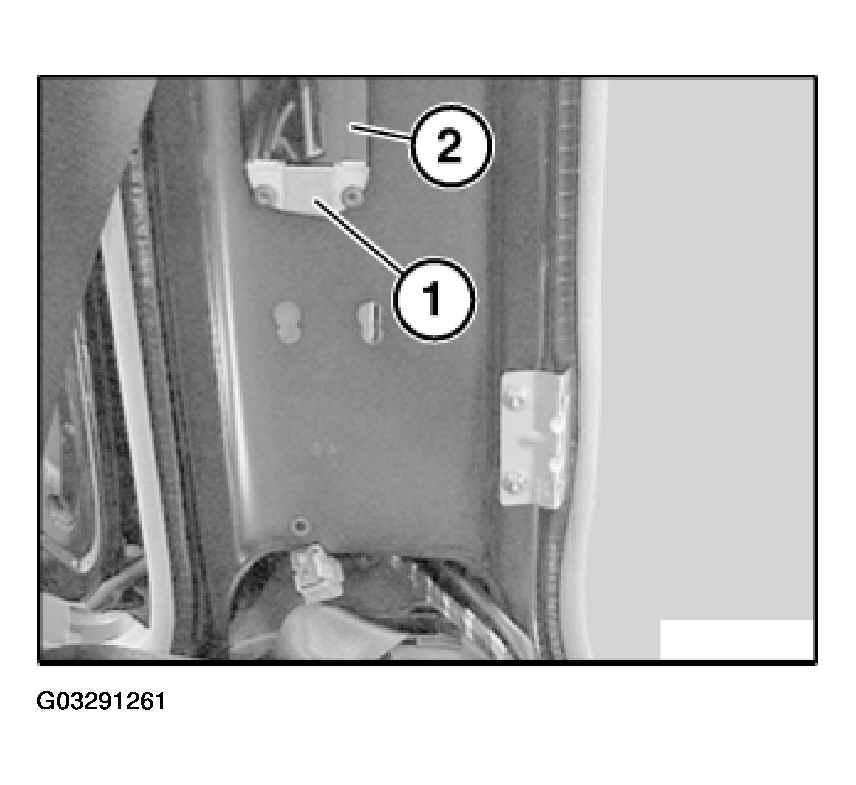

Fig 3: Guiding B-Pillar Sensor In B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

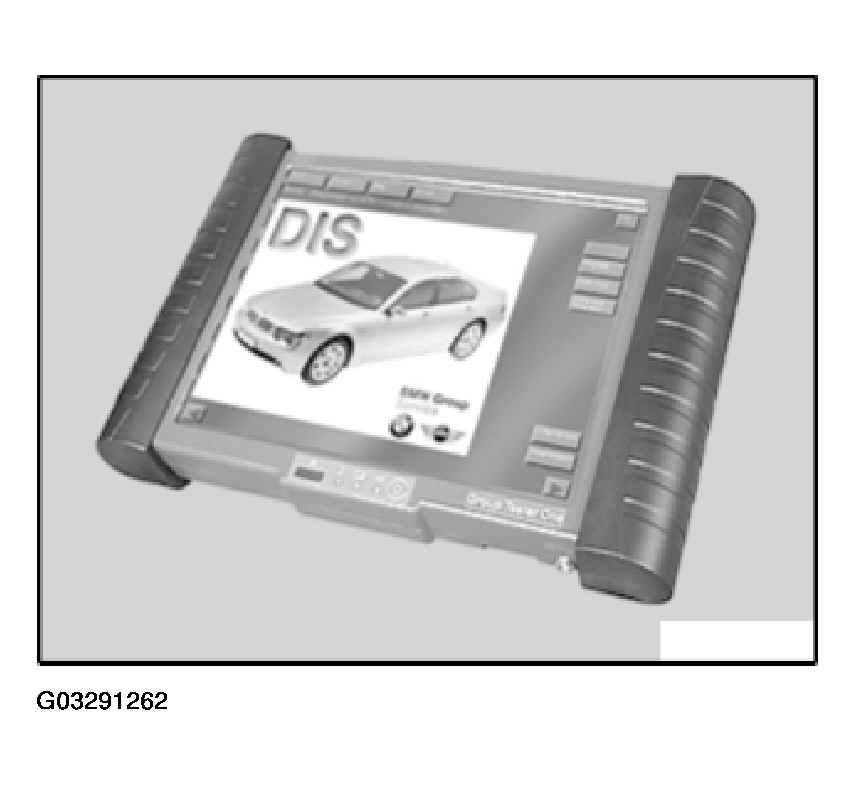

Fig 4: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
