65 77 710 Removing and installing (replacing) left A-pillar sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS
.
Incorrect handling can activate AIRBAG and cause injury.
Incorrect handling can activate AIRBAG and cause injury.
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove footwell side trim panel on A-pillar. Refer to 51 43 070 REMOVING AND INSTALLING / REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT and 51 43 075 REMOVING AND INSTALLING / REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
- Place carpet slightly to one side.

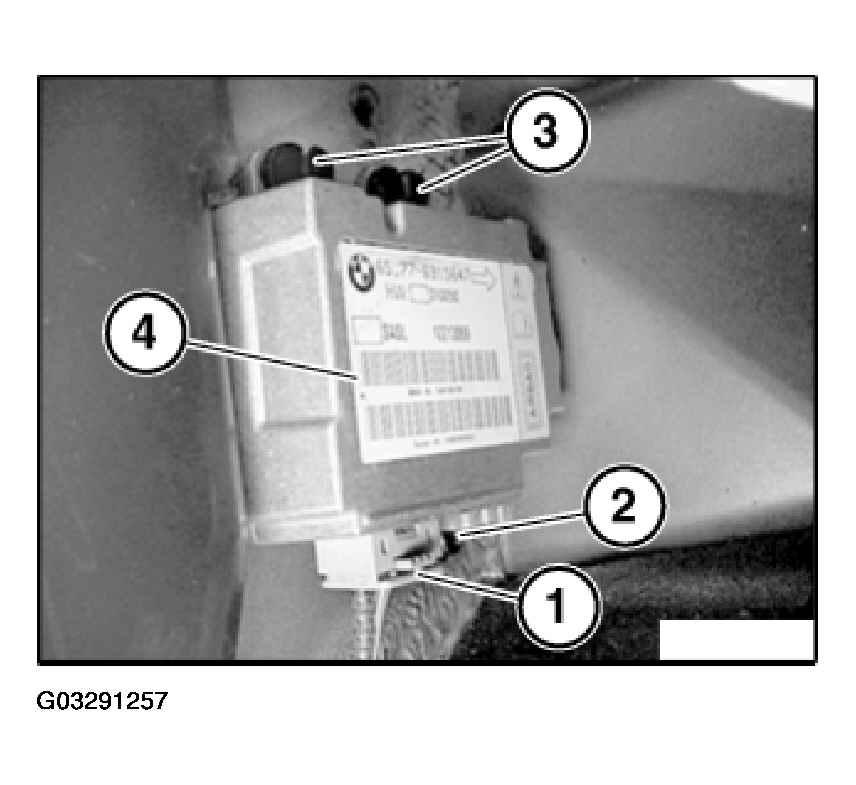

Unfasten plug connection (1) and disconnect.
Unscrew bolt (2).
Unscrew nuts (3).
Installation:
Tightening torque 65 77 4AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - 745I - E65 .
Make sure sensor is mounted without play.
Remove A-pillar sensor (4).
Replacement:
Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
