65 77 632 Replacing both sensor mats for rear seat occupancy detector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat cover for rear seat, refer to 52 24 400 REPLACING SEAT COVER (NORMAL) FOR REAR SEAT

Remove control units (1) on left and right.

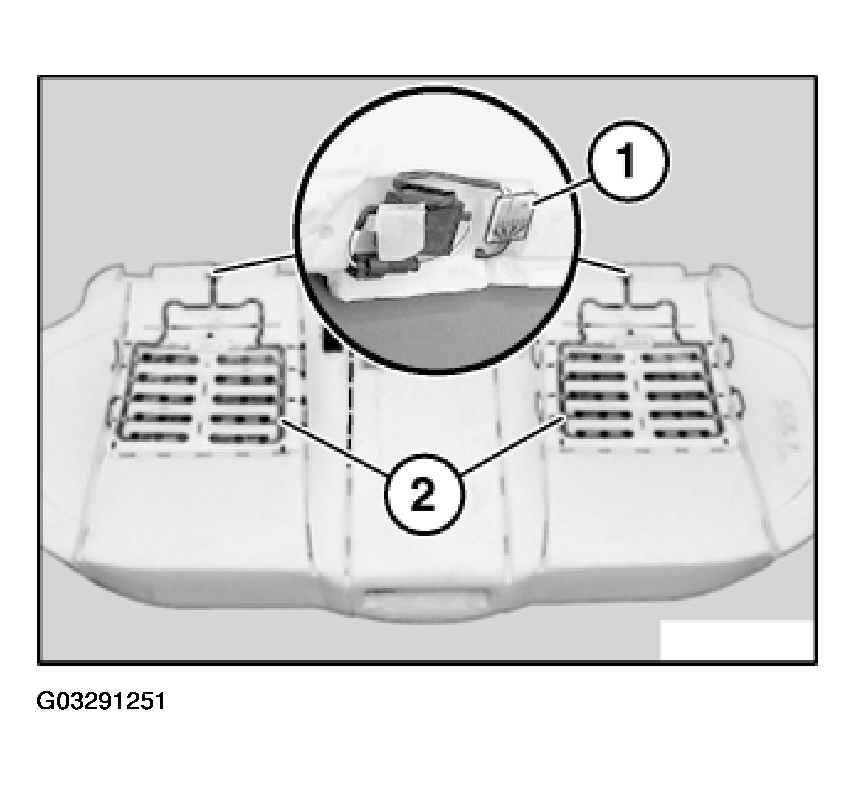

Fig 1: Removing Control Units And Sensor Mats

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sensor mats (2).

IMPORTANT: To avoid malfunctions, make sure sensor mat (2) is cleanly laid:

Lay plug connections in designated recesses.
Lay sensor mats (2) straight and without kinks (large bending radii).
If necessary, secure sensor mats (2) with adhesive tape provided.
Feed sensor mats (2) in areas of transition (e.g. seat cushion to side section) cleanly into penetrations of padding.
