65 77 598 Replacing sensor mat for driver's seat occupancy detector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat cover for front seat, refer to 52 14 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) or 52 17 400 REMOVING AND INSTALLING/REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT)

NOTE: The comfort seat with air conditioning is shown.

Remove sensor mat for driver's seat occupancy detector (1) from padding (2).

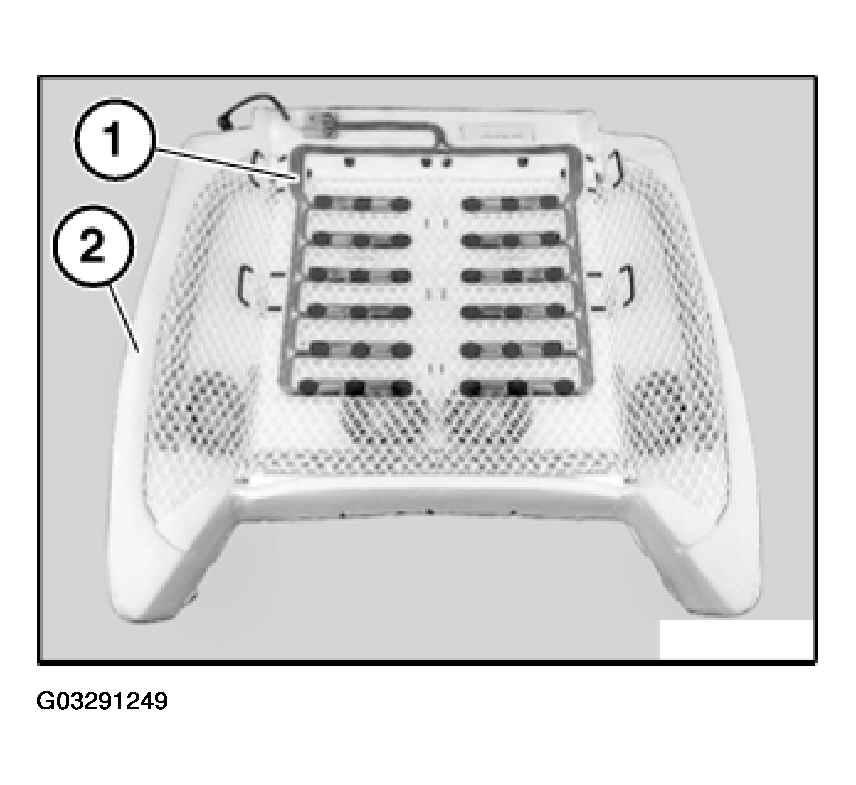

Fig 1: Removing Sensor Mat

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid malfunctions, make sure sensor mat (1) is cleanly laid:

Lay plug-in connection in designated recess.
Lay sensor mat (1) straight and without kinks (large bending radii).
If necessary, secure sensor mat (1) with adhesive tape provided.
