Build date from 03/2005:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

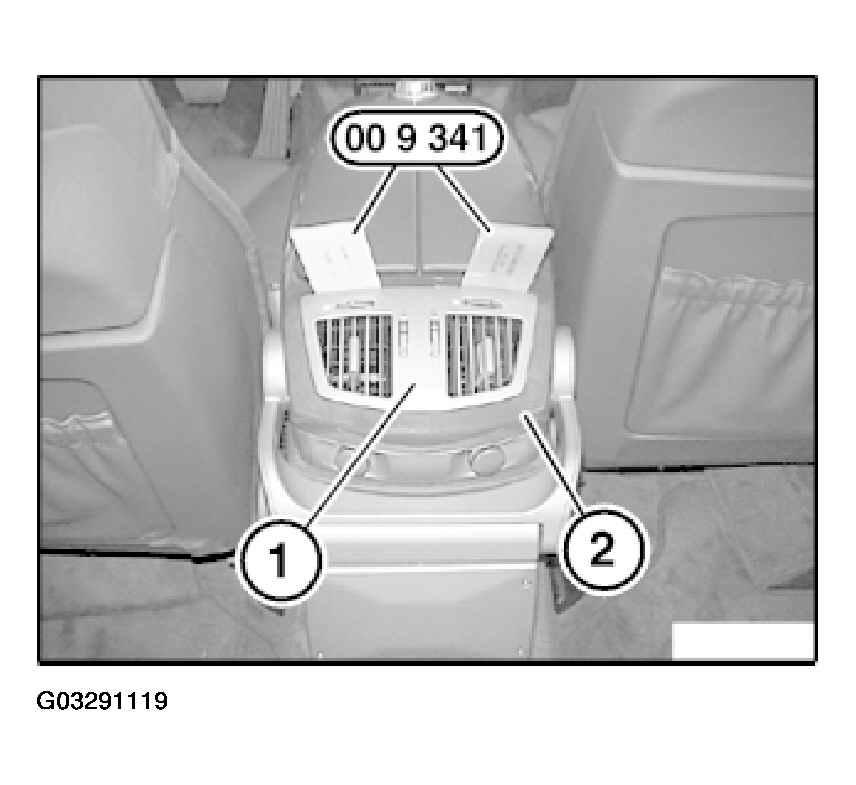

Lever rear compartment fresh-air grille (1) with special tool 00 9 341 out of center armrest wooden trim (2) and pull out.

Fig 1: Levering Rear Compartment Fresh-Air Grille Out Of Centre Armrest Wooden Trim
G03291119Courtesy of BMW OF NORTH AMERICA, INC.

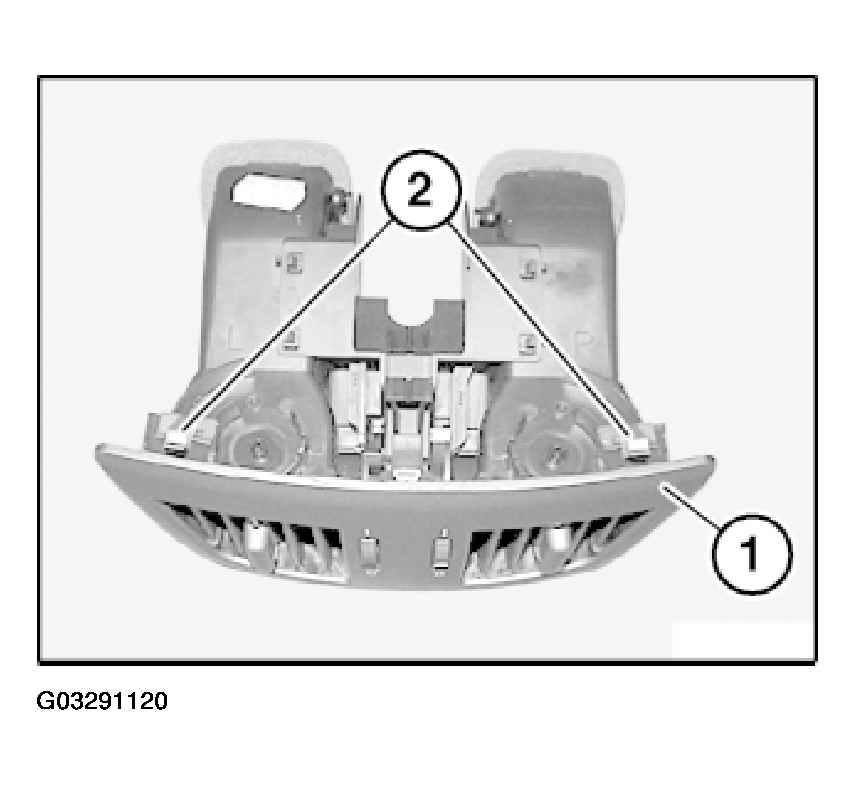

NOTE: For purposes of clarity, graphic shows rear compartment fresh-air grille (1) removed.

Retaining clips (2) must be pressed in to facilitate removal of rear compartment fresh-air grille (1).

Fig 2: Removing Rear Compartment Fresh-Air Grille
G03291120Courtesy of BMW OF NORTH AMERICA, INC.
