64 22 137 Removing and installing/replacing left fresh air grille (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 030

CAUTION: Proceed with care so as to avoid damaging the fresh air grill.

Open fins of fresh air grill (1).

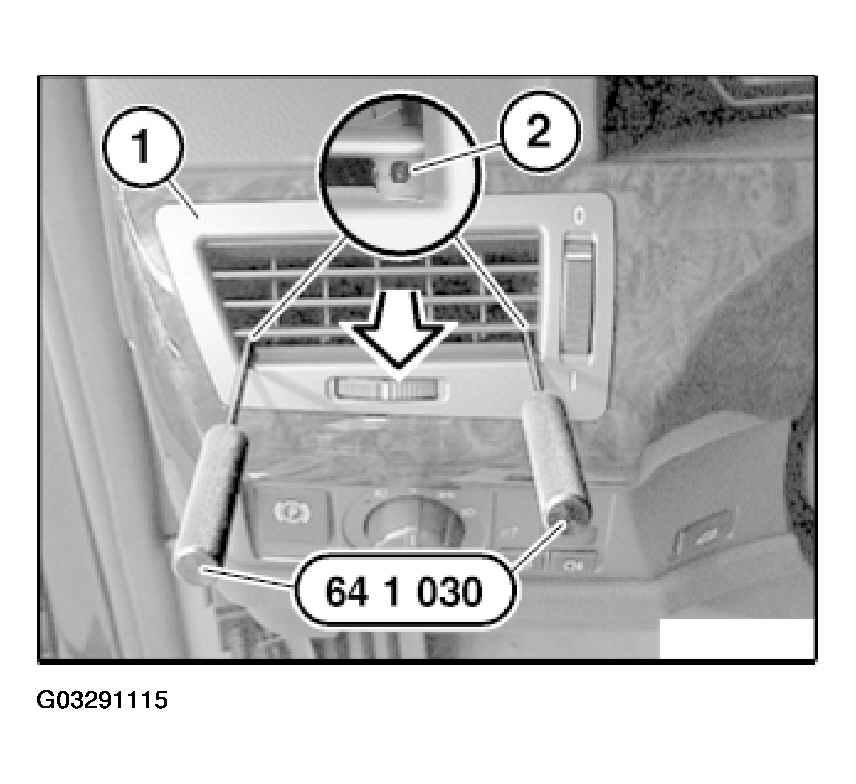

Fig 1: Pulling Out Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 64 1 030 on both sides in mounts (2) and pull out fresh air grill (1) slightly in direction of arrow.

Close fins of fresh air grill (1) and remove grill (1) towards rear.

Installation:

Catches (1) of fresh air grill (2) must not be damaged.

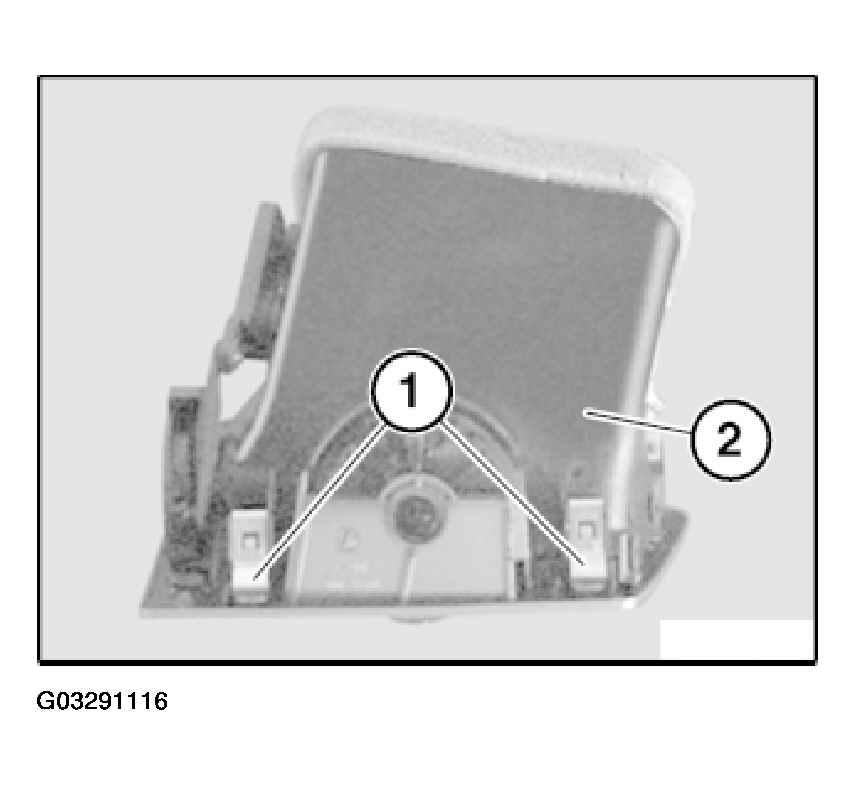

Fig 2: Identifying Catches And Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure fresh air grill (2) is correctly seated on fresh air duct behind.
