64 11 992 Removing and installing/replacing solar sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove speaker frame at middle of instrument panel. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

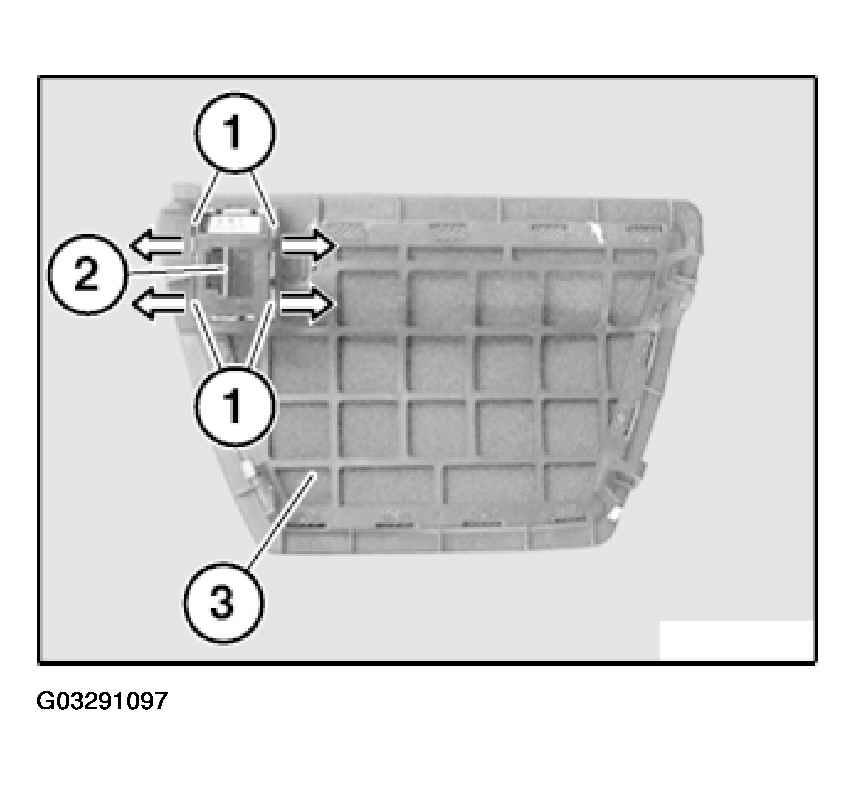

Unlock catches (1) in direction of arrow and remove solar sensor (2) from speaker frame (3).

Fig 1: Removing Solar Sensor From Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

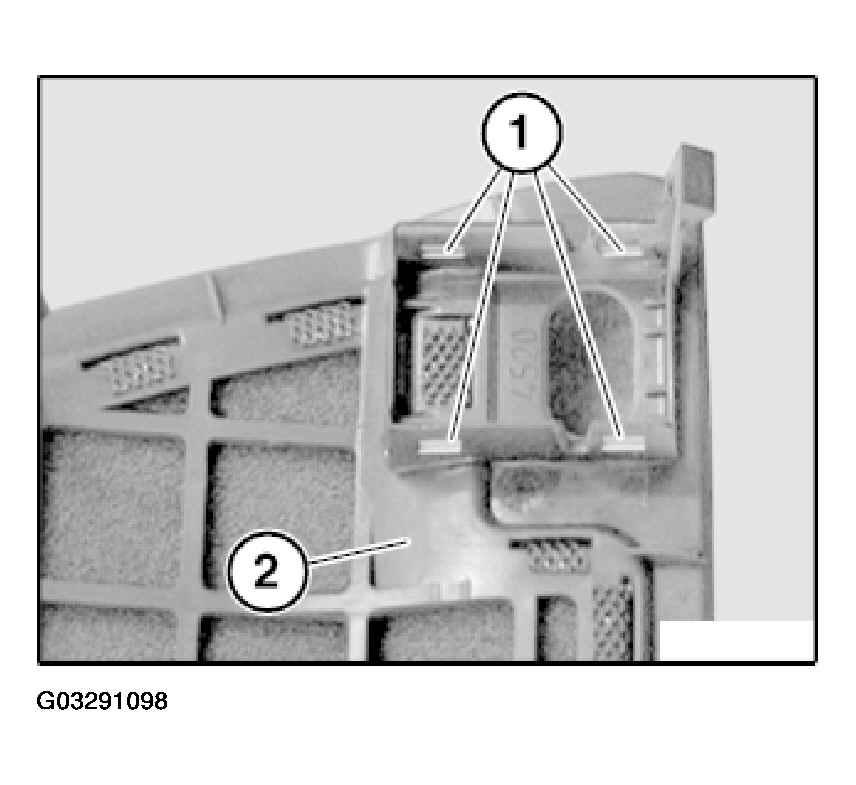

Locking windows (1) of speaker frame (2) must not be damaged.

Fig 2: Locating Locking Windows Of Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.
