64 11 991 Removing and installing/replacing sensor for automatic recirculated air control (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove design cover.

Disconnect plug connection (1).

Feed out sensor for automatic recirculated air control in direction of arrow and remove.

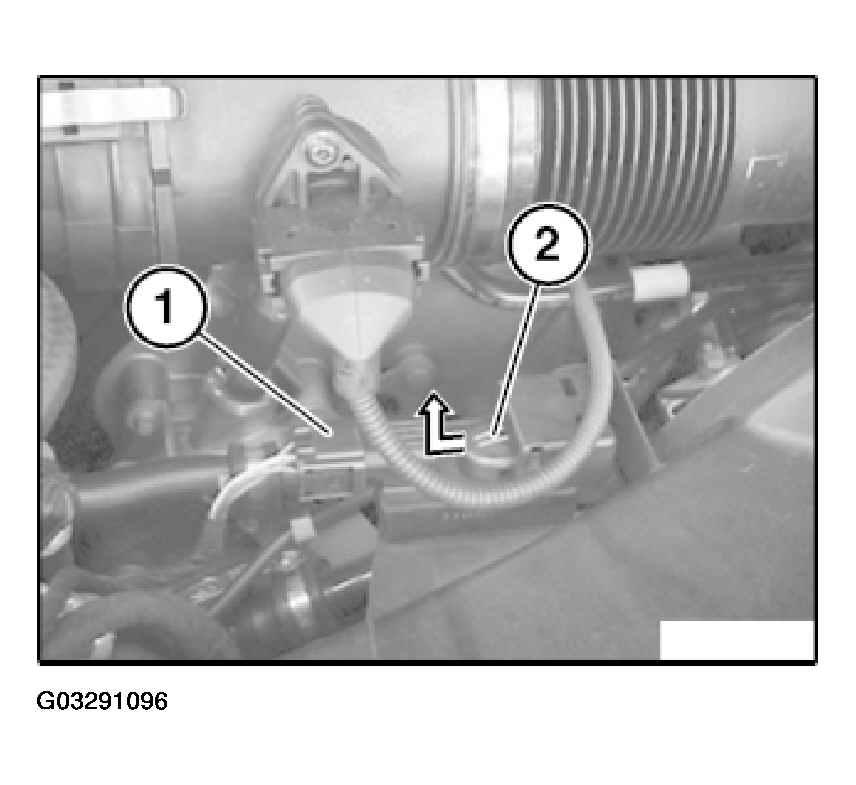

Fig 1: Removing/Installing Sensor For Automatic Recirculated Air Control (Automatic A/C High)
G03291096Courtesy of BMW OF NORTH AMERICA, INC.
