64 11 844 Replacing servodrive for ventilation/defrosting flaps (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove instrument panel trim, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM

NOTE: For purposes of clarity, graphic shows servodrive with heater removed.

Disconnect plug connection (1).

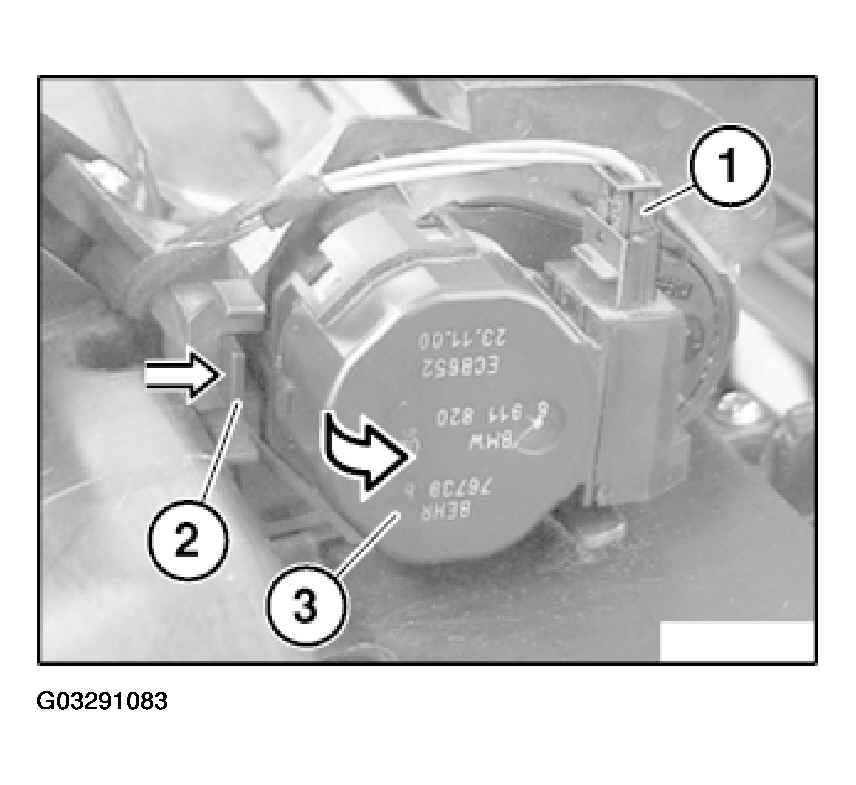

Fig 1: Replacing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) and unclip servodrive (3) in direction of arrow.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
