64 11 274 Replacing water valve for heater (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Disconnect plug connection (1).

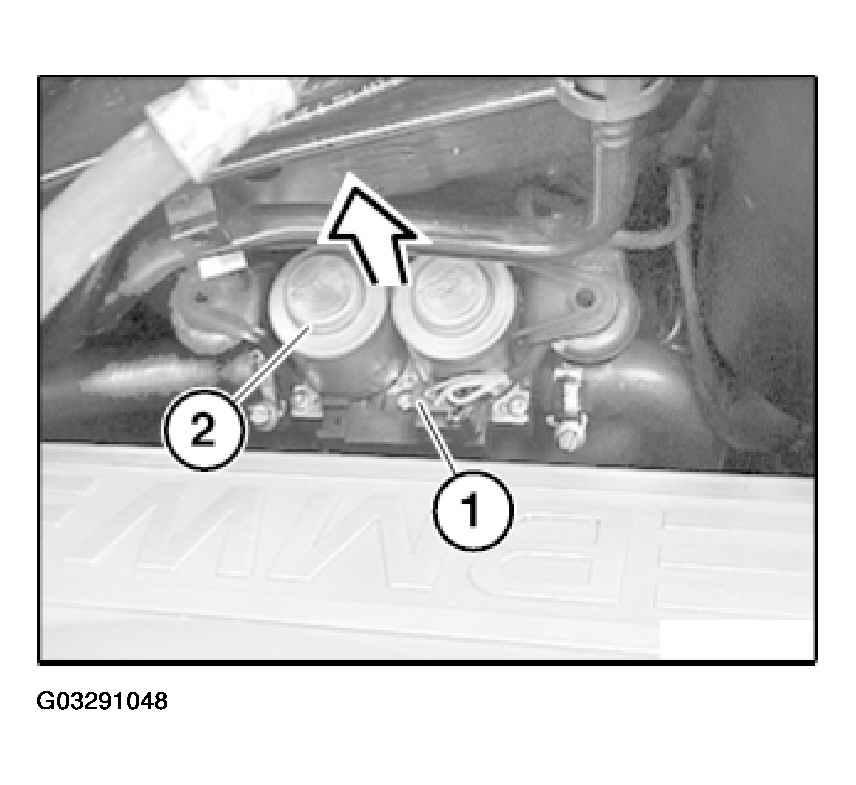

Fig 1: Pulling Up Heater Valve

G03291048

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct cable routing.

Pull out heater valve (2) upwards slightly.

Release hose clamps (1) and detach water hoses.

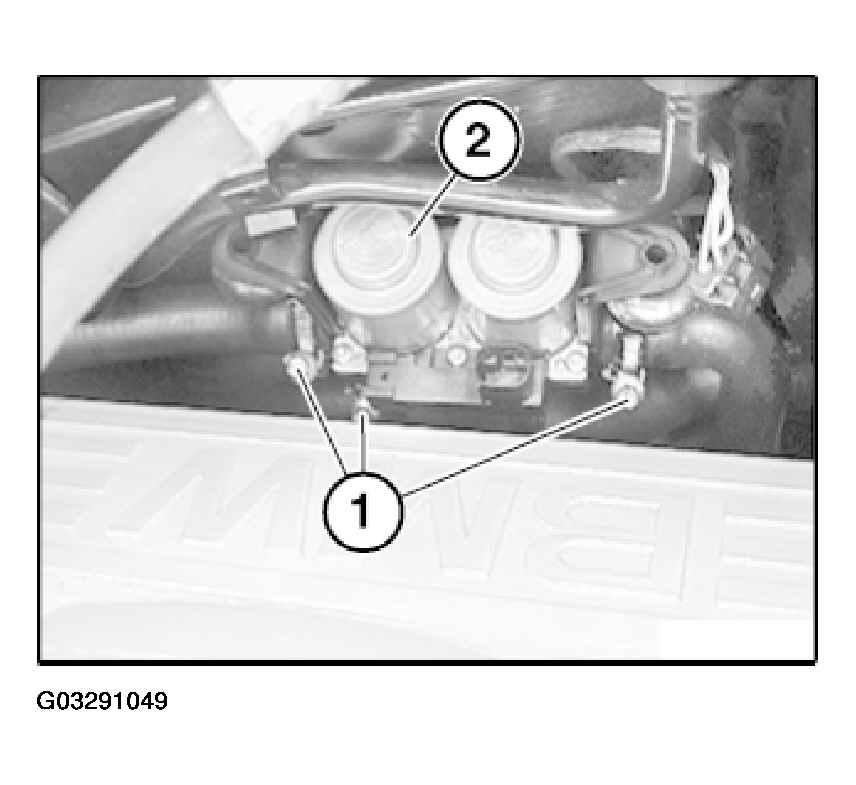

Fig 2: Releasing Hose Clamps And Detaching Water Hoses

G03291049

Courtesy of BMW OF NORTH AMERICA, INC.

Remove water valve for heater (2).

Installation:

Make sure water valve (1) is correctly seated in grommets (2) and rubber mount (3).

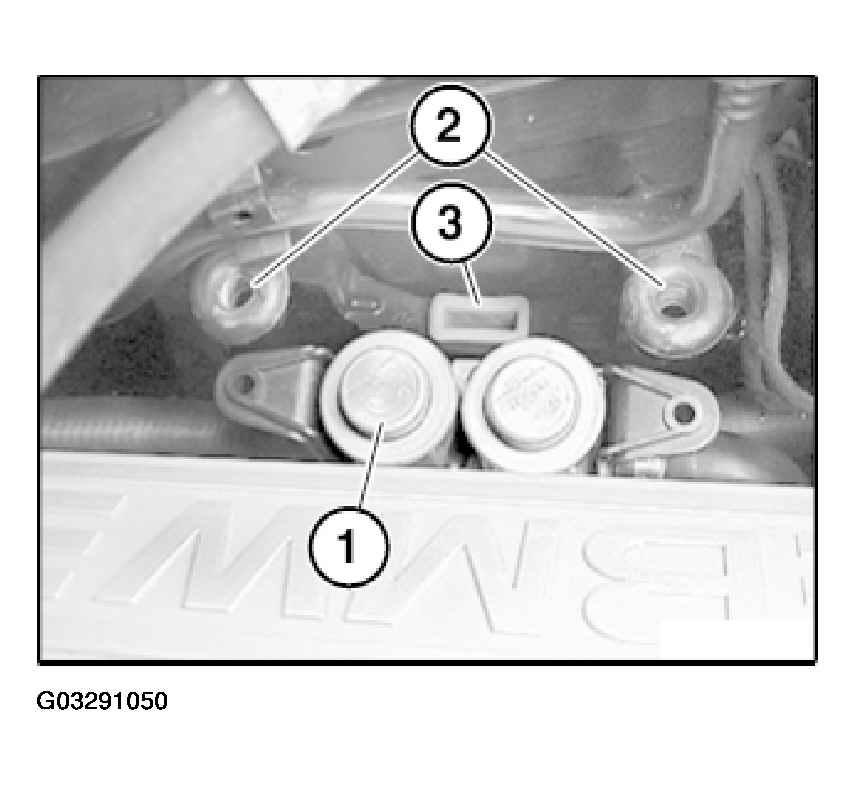

Fig 3: View Of Water Valve

G03291050

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace grommets (2) and rubber mount (3).

Filling and bleeding the cooling system, refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N62) .
