64 11 262 Removing and installing/replacing auxiliary water pump (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Remove design cover.

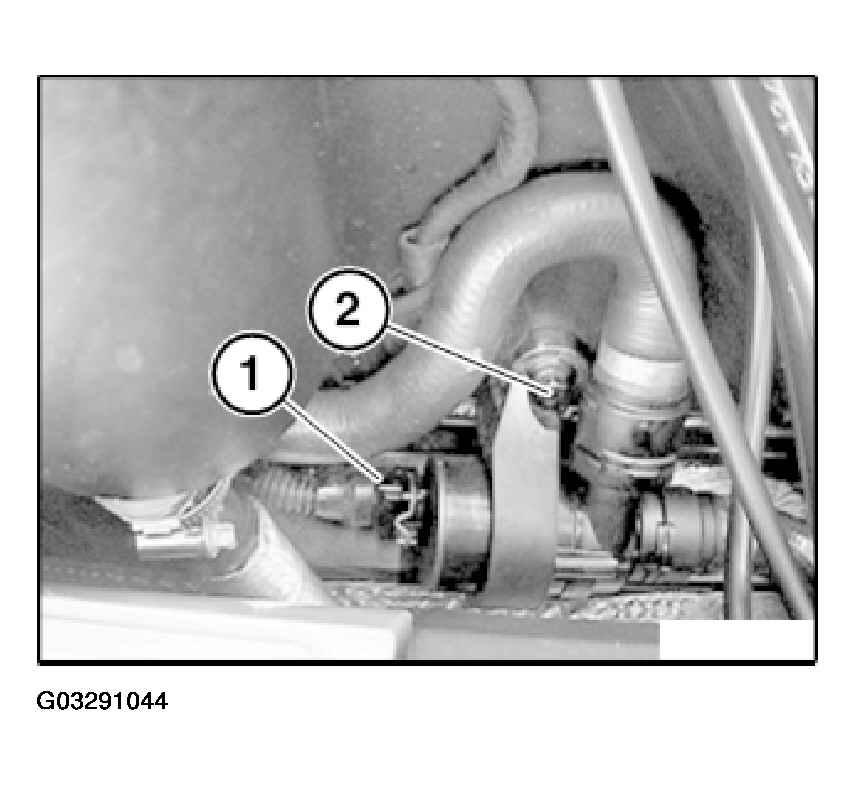

Unlock plug connection (1) and disconnect.

Fig 1: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (2).

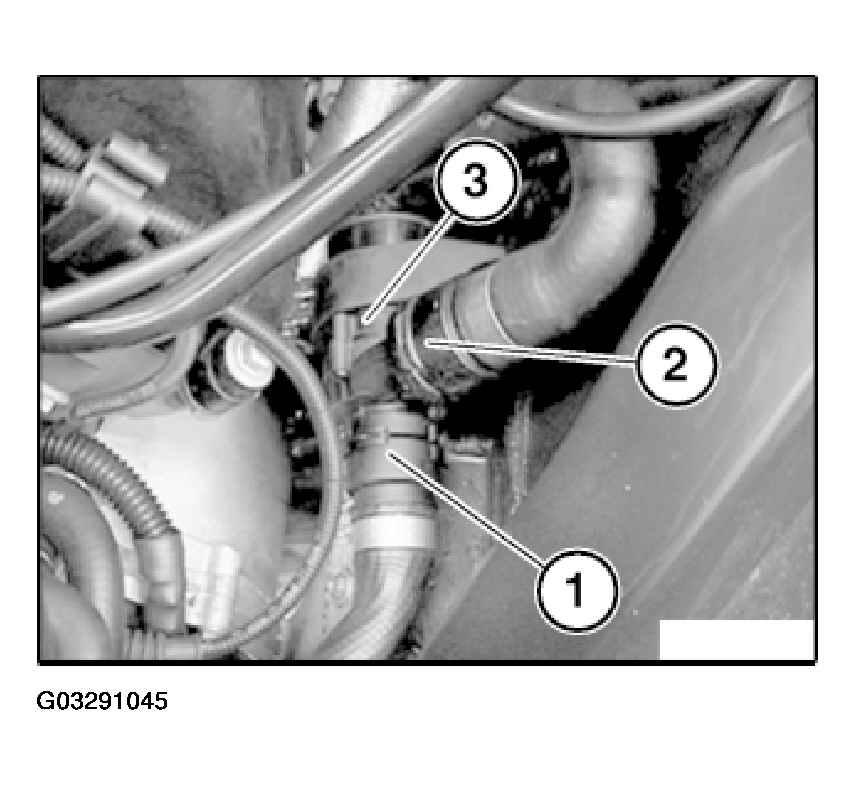

Open fast-release couplings and detach water hoses (1) and (2) from auxiliary water pump (3).

Fig 2: Detaching Water Hoses From Auxiliary Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Remove auxiliary water pump (3).

Installation:

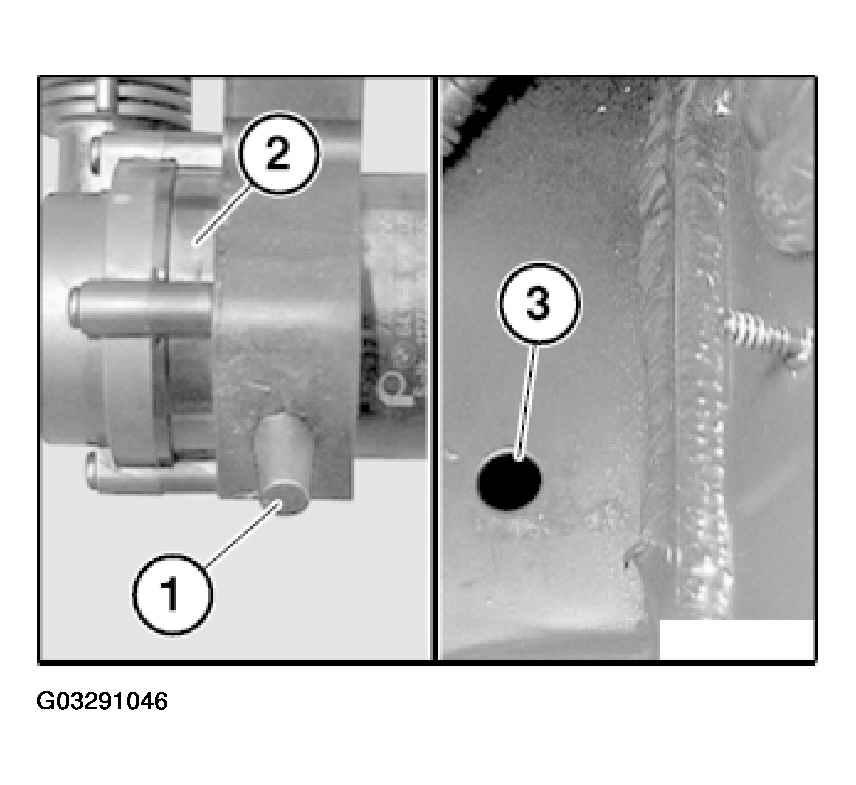

Guide (1) of auxiliary water pump fixture (2) must be seated exactly in mounting (3).

Fig 3: Identifying Guide Of Auxiliary Water Pump Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

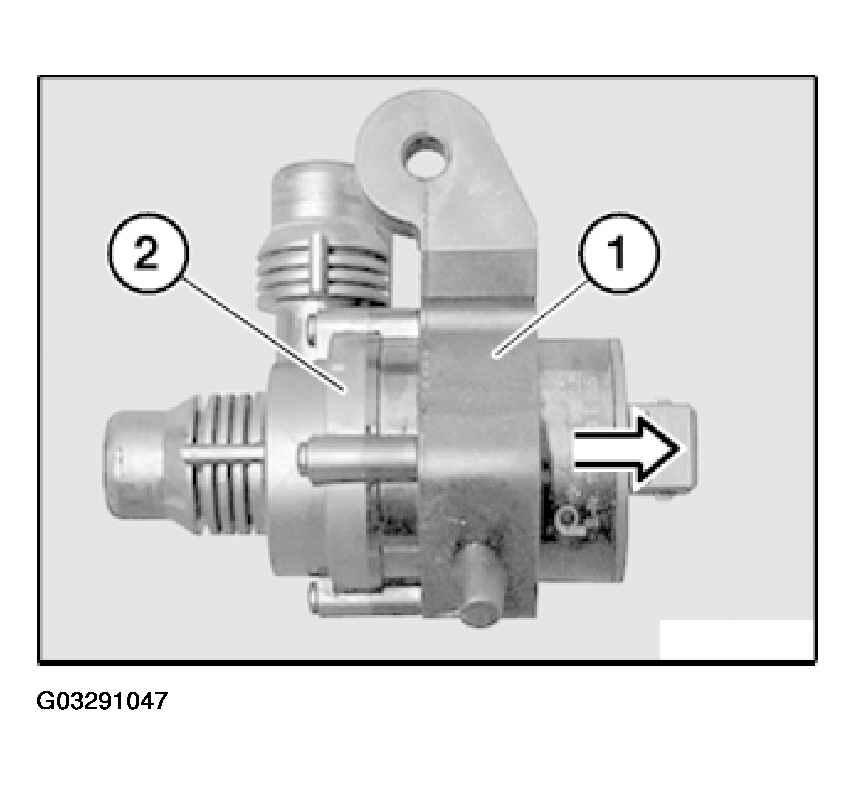

Detach auxiliary water pump fixture (1) in direction of arrow from auxiliary water pump (2).

Fig 4: Detaching Auxiliary Water Pump Fixture From Auxiliary Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure auxiliary water pump (2) is correctly seated in auxiliary water pump fixture (1).

Filling and bleeding the cooling system, refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N62) .
