64 11 213 Removing and installing/replacing fan for heater/air conditioner (automatic A/C High)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove fan cover. Refer to 64 11 225 REPLACING CONTROLLER FOR HEATER - A/C SYSTEM FAN (AUTOMATIC A/C HIGH) .

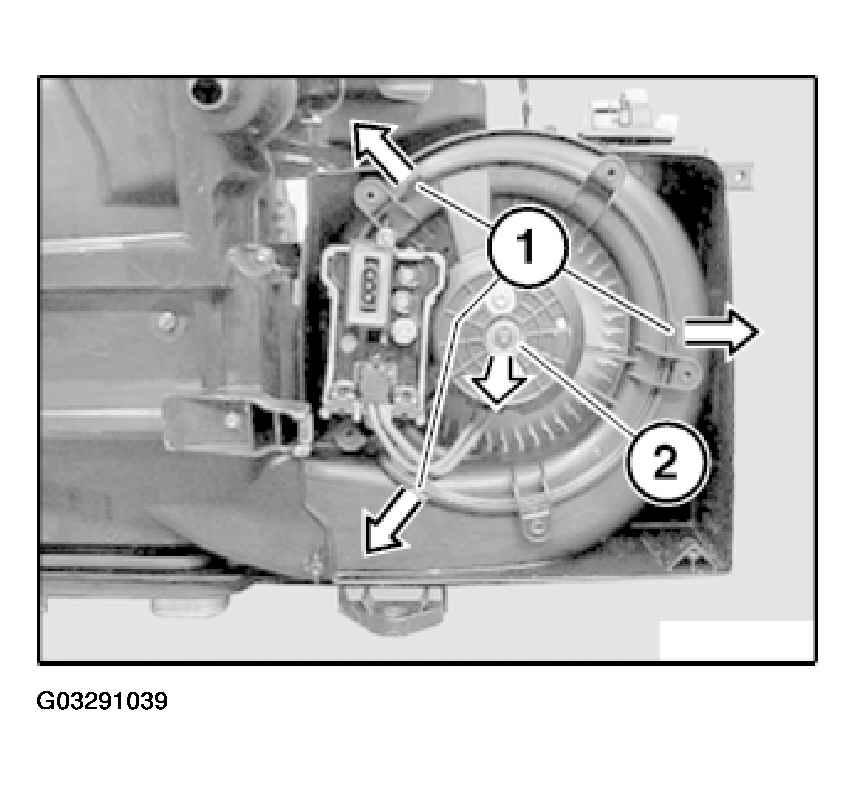

Unlock catches (1) and remove fan for heater/air conditioner (2) in direction of arrow.
NOTE:
Controller for heater - A/C system fan fitted.
Replacement:
Remove controller for heater - A/C system. Refer to 64 11 225 REPLACING CONTROLLER FOR HEATER - A/C SYSTEM FAN (AUTOMATIC A/C HIGH) .
Installation:

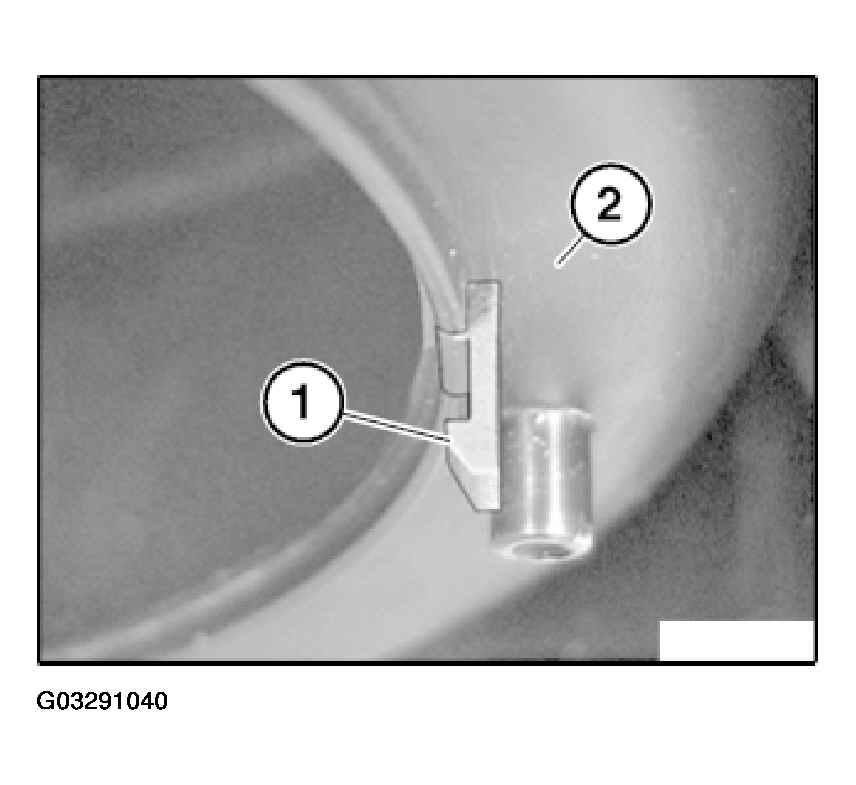

Retaining hooks (1) of fan housing (2) must not be damaged and must be fully engaged.
