64 53 517 Replacing desiccant insert for A / C system (automatic A / C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant R 134a. Refer to 64 50 ... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A .
Follow safety instructions for handling refrigerant oil. Refer to 64 50 ... SAFETY PRECAUTIONS WHEN HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134A) .

NOTE: The time value given for this work operation does not include drawing off, evacuating and filling the A/C system!

Drain off air conditioner, refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A)

IMPORTANT: Risk of damage!
Restart engine only when A/C system has been correctly filled.

Necessary preliminary tasks:

Remove condenser for A/C system, refer to 64 53 551 REMOVING AND INSTALLING / REPLACING CONDENSER FOR A / C SYSTEM (N62)

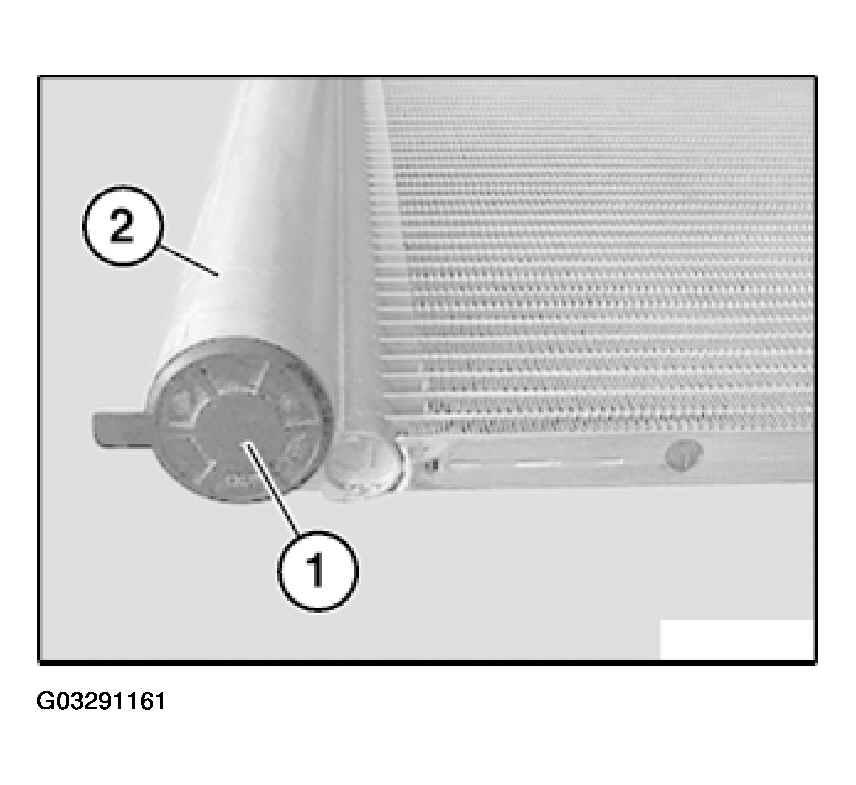

Remove cover cap (1) from condenser (2).

Fig 1: Removing Cover Cap From Condenser

G03291161

Courtesy of BMW OF NORTH AMERICA, INC.

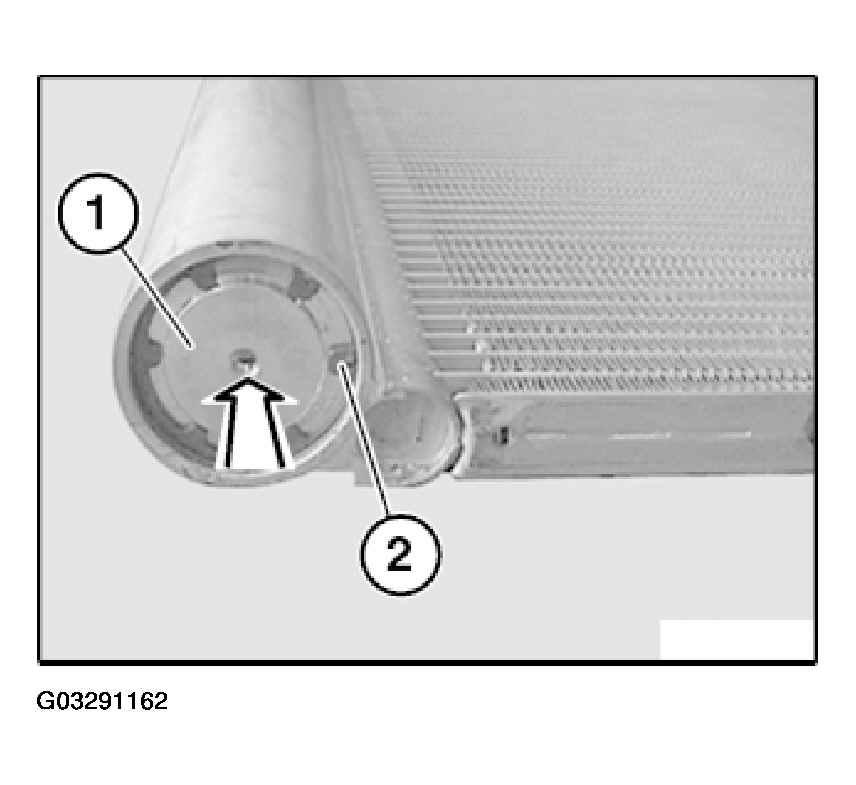

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Removing Circlip

G03291162

Courtesy of BMW OF NORTH AMERICA, INC.

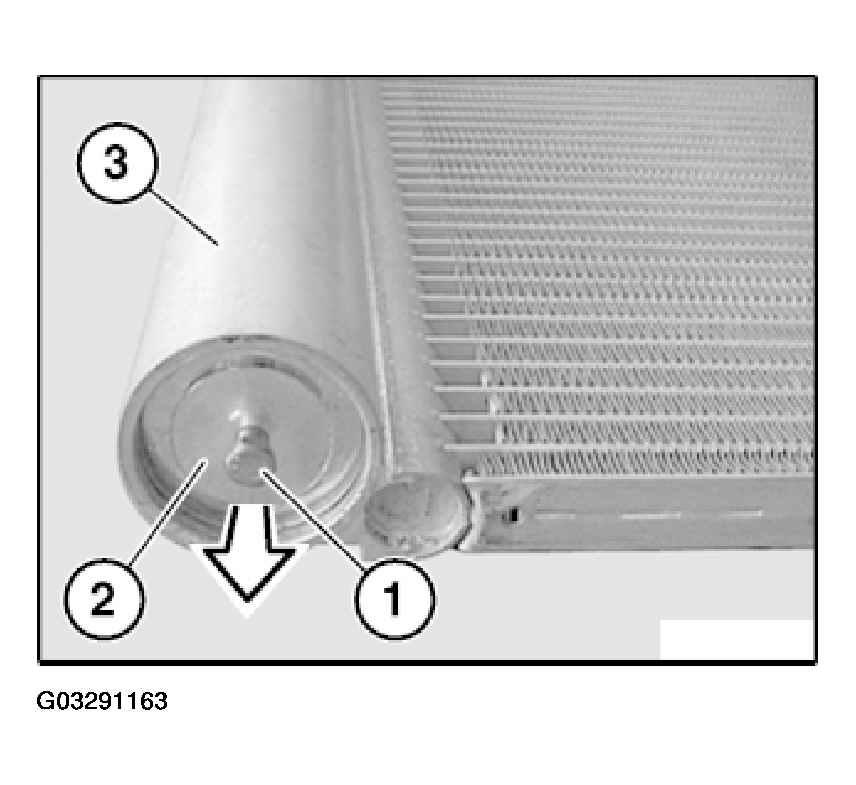

With assistance of a screwed-in screw (1), remove sealing cap (2) from condenser (3).

Fig 3: Removing Sealing Cap From Condenser

G03291163

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

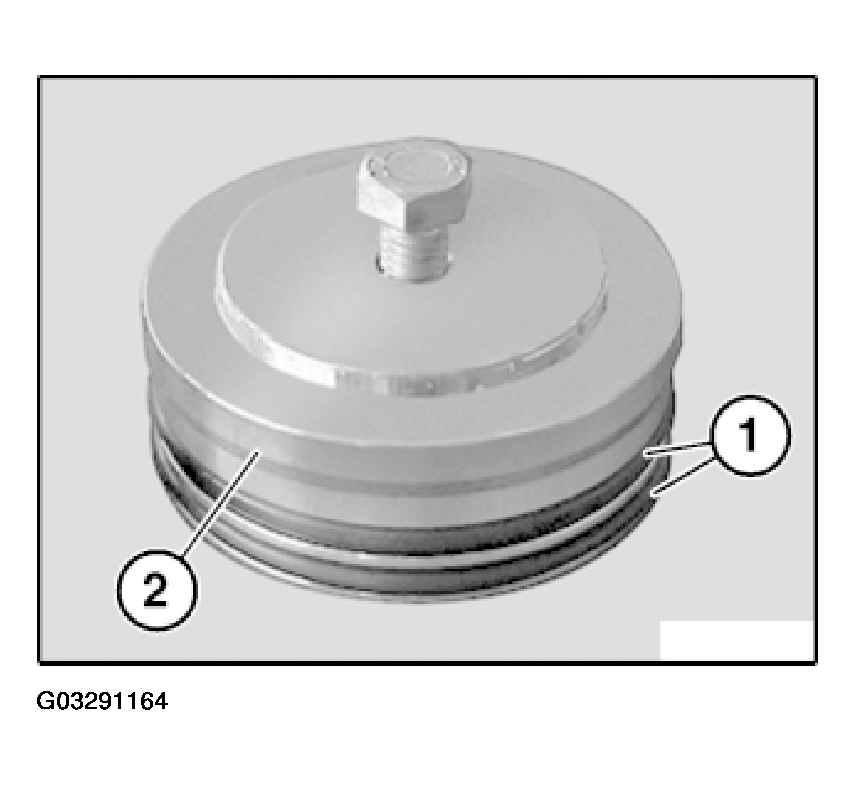

Replace sealing rings (1) of sealing cap (2) and coat with refrigerant oil.

Fig 4: Replacing Sealing Rings Of Sealing Cap

G03291164

Courtesy of BMW OF NORTH AMERICA, INC.

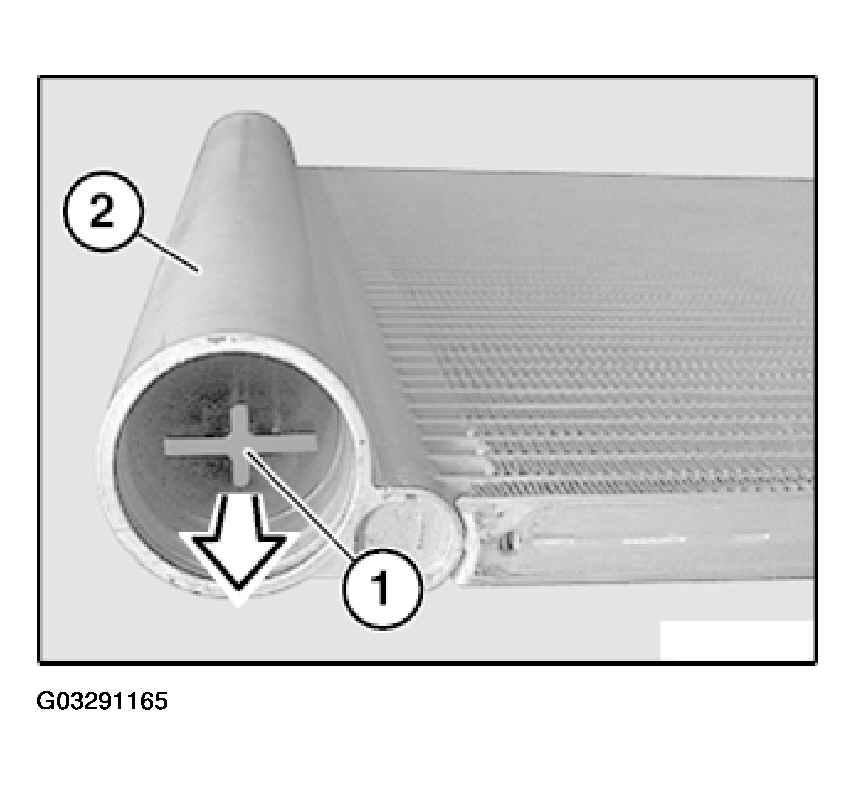

Withdraw desiccant insert (1) in direction of arrow from capacitor (2).

Fig 5: Withdrawing Desiccant Insert From Capacitor

G03291165

Courtesy of BMW OF NORTH AMERICA, INC.
