Version with Dynamic Drive only:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Lower stabilizer bar on front axle and secure (e.g. with cable strap). Refer to FRONT ACTIVE STABILIZER BAR .

Loosen screws (1).

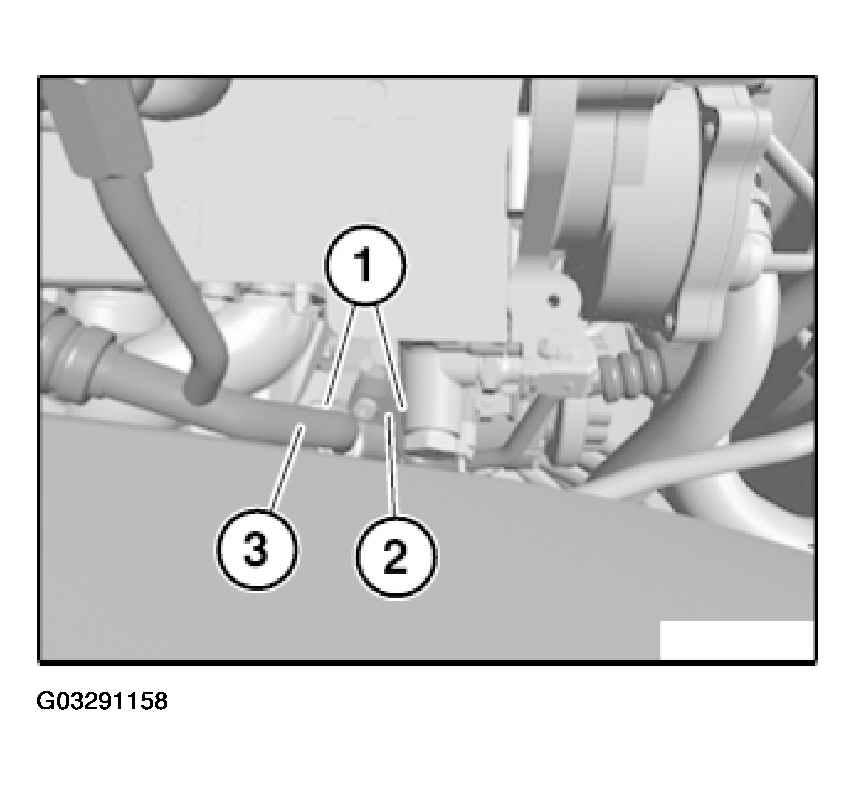

Fig 1: Removing Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lines (2) and (3).

Installation:

Replace sealing rings.

Observe tightening torque, 64 52 1AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 745i - E65 .

Disconnect plug connection (1).

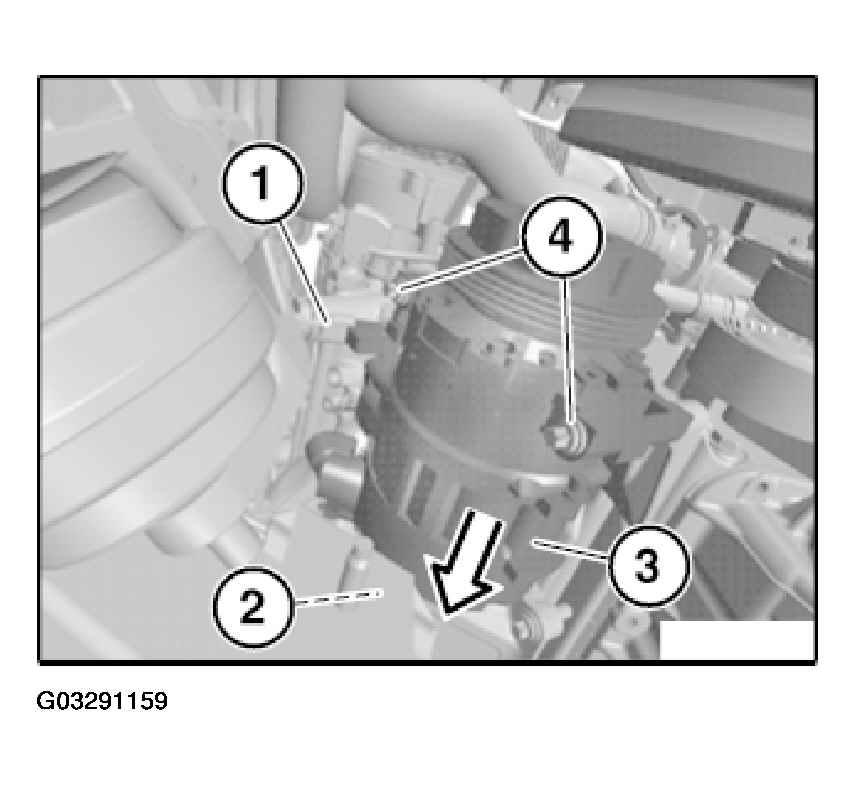

Fig 2: Removing A/C Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure A/C compressor (3) against falling down.

Release screw (2) and remove with bushing behind.

Installation:

Make sure bushing is correctly fitted.
