Special tools required:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
- 13 3 010
Necessary preliminary tasks:
- Remove rear left underbody paneling. Refer to 51 47 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

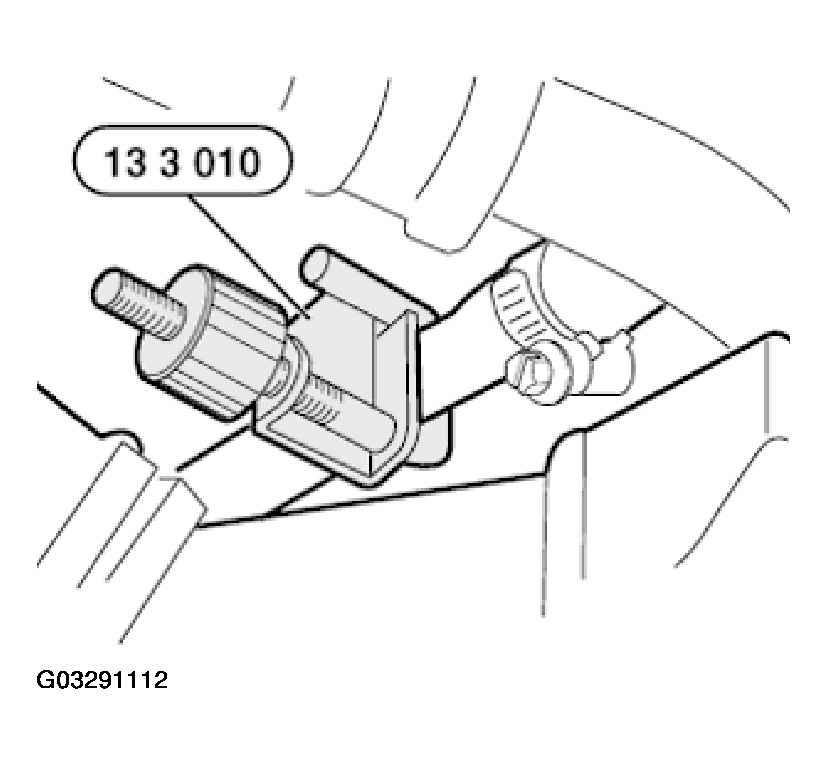

Seal off water hoses at fuel pump with special tool 13 3 010.
Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

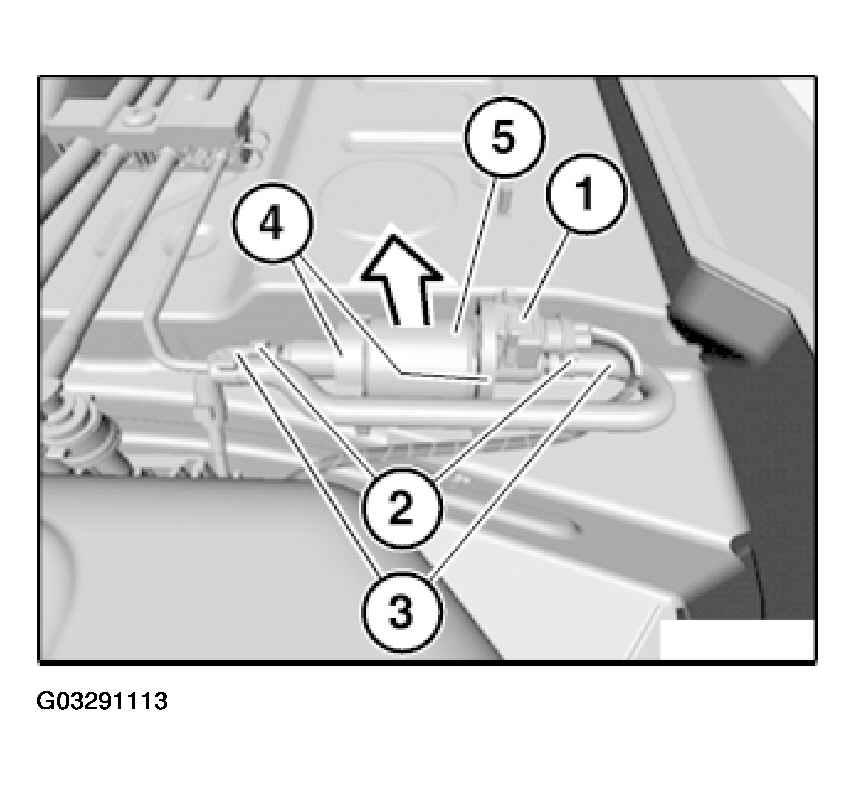

Unlock plug connection (1) and disconnect.
Loosen hose clamps (2).
Disconnect fuel hoses (3).
Pull holder (4) apart and remove fuel pump (5) in direction of arrow.
Installation:
Observe direction of flow of fuel pump (5).
