64 12 590 Removing and installing or replacing muffler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left underbody paneling. Refer to 51 47 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

Release screw (1).

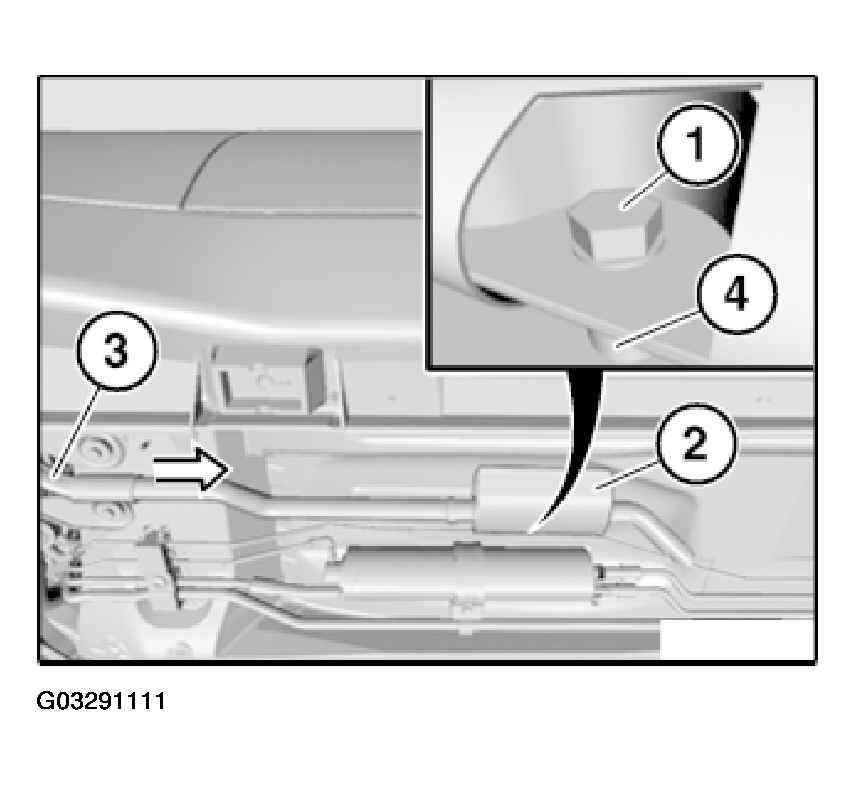

Fig 1: Withdrawing Muffler From Exhaust Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw muffler (2) in direction of arrow from exhaust pipe (3).

Installation:

If necessary, replace blind rivet nut (4).
