64 12 525 Replacing complete independent heater

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete independent heater. Refer to 64 12 021 REMOVING AND INSTALLING COMPLETE INDEPENDENT HEATER .

Unfasten hose clip (1).

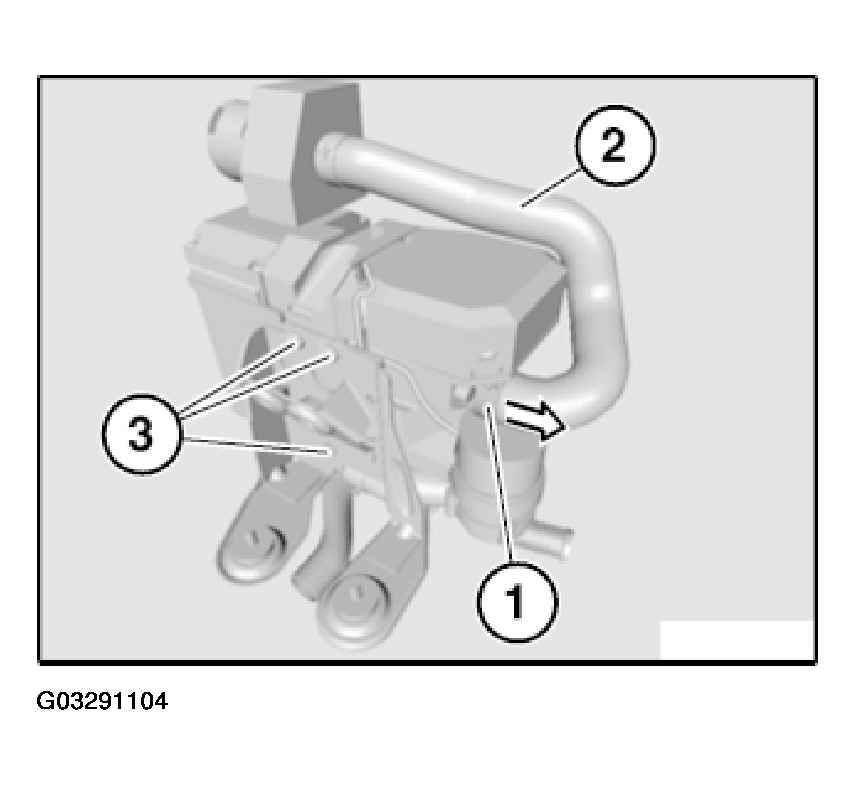

Fig 1: Locating Hose Clip And Air Intake Hose

G03291104

Courtesy of BMW OF NORTH AMERICA, INC.

Detach air intake hose (2) in direction of arrow.

Release screws (3).

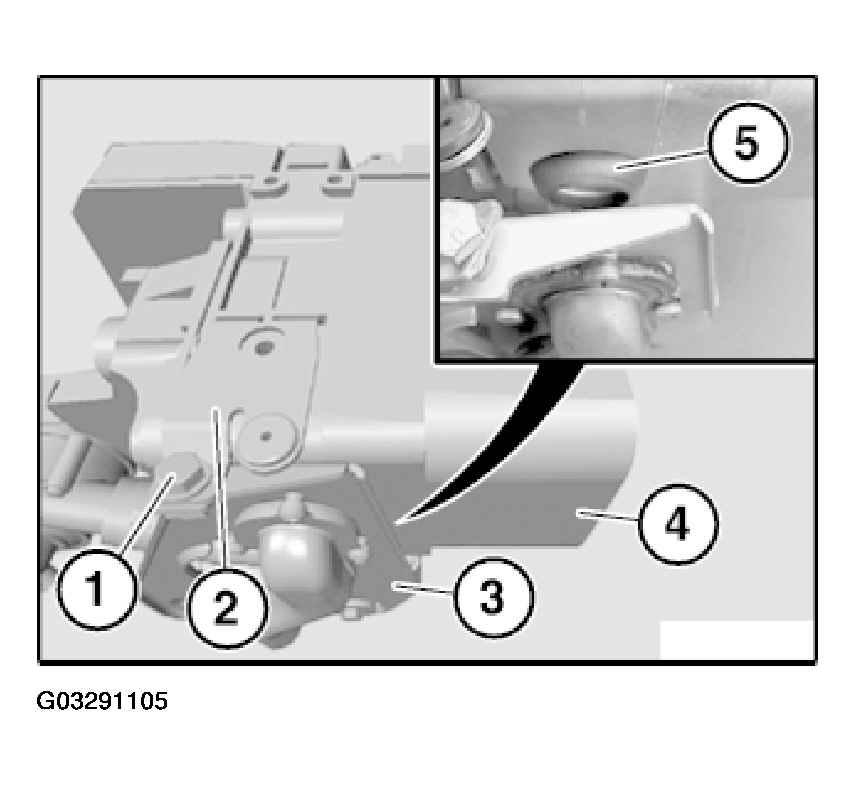

Fig 2: Disconnecting Independent Heater Holder From Independent Heater

G03291105

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) slightly.

Pull counter holder (2) out of guide.

Disconnect independent heater holder (3) from independent heater (4).

Installation:

Replace exhaust gasket (5).

Installation:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

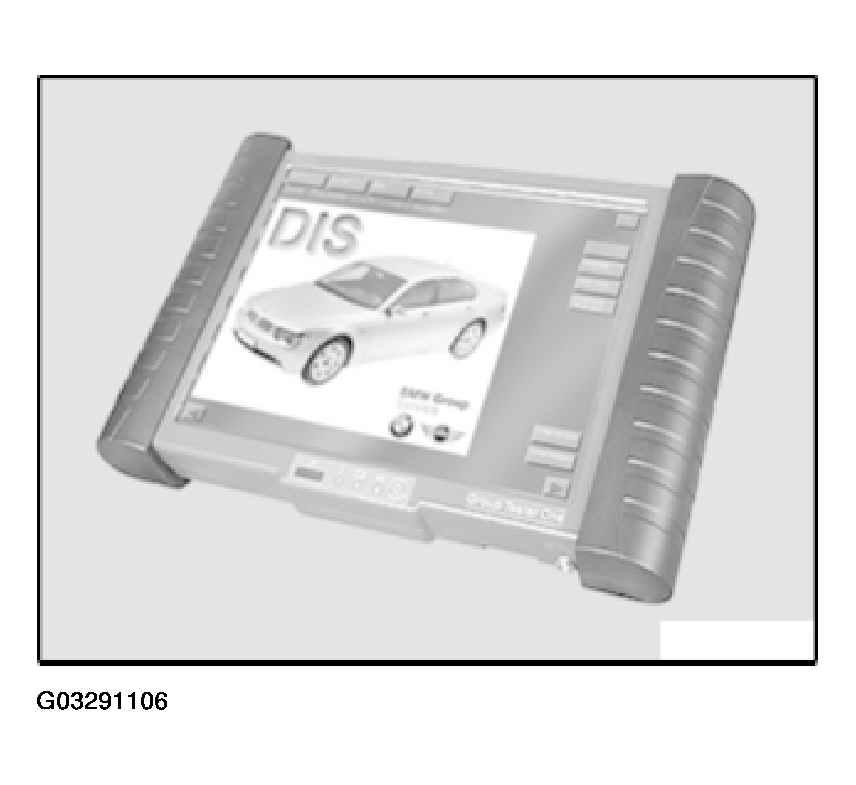

Fig 3: View Of Control Unit

G03291106

Courtesy of BMW OF NORTH AMERICA, INC.
