63 99 491 Replacing light module for rear left or right outside door handle lighting (from 09/2004)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove outside handle on rear door, refer to 51 22 170 REMOVING AND INSTALLING / REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR

Release screws (2).

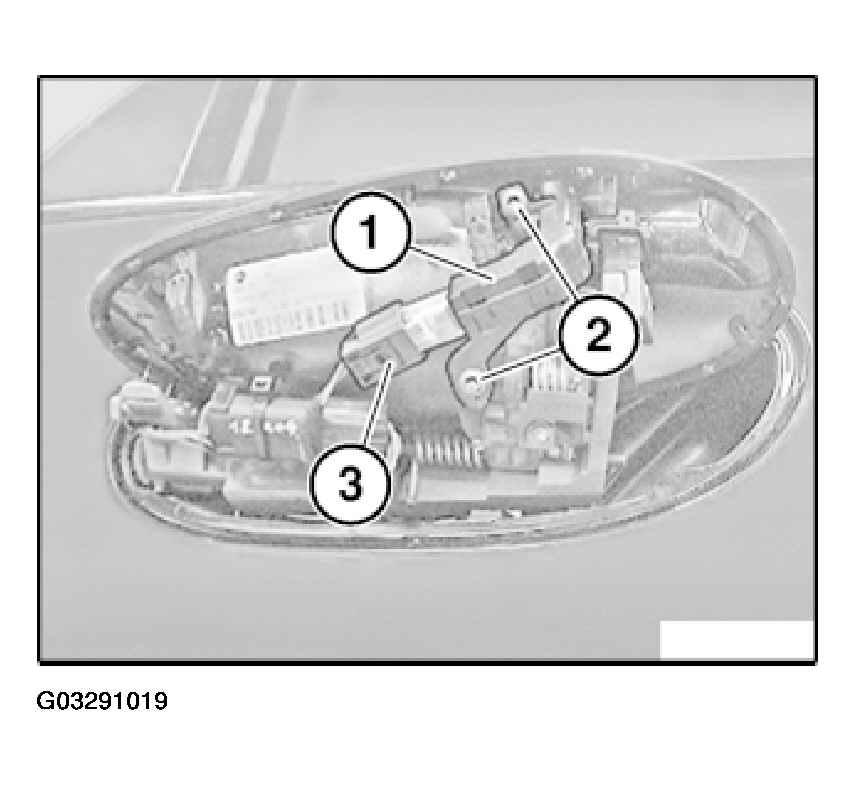

Fig 1: Removing Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Remove light module (1).
