63 99 486 Replacing light module for front left or right outside door handle lighting (up to 09/2004)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT DOOR TRIM PANEL

Disconnect plug connection (1).

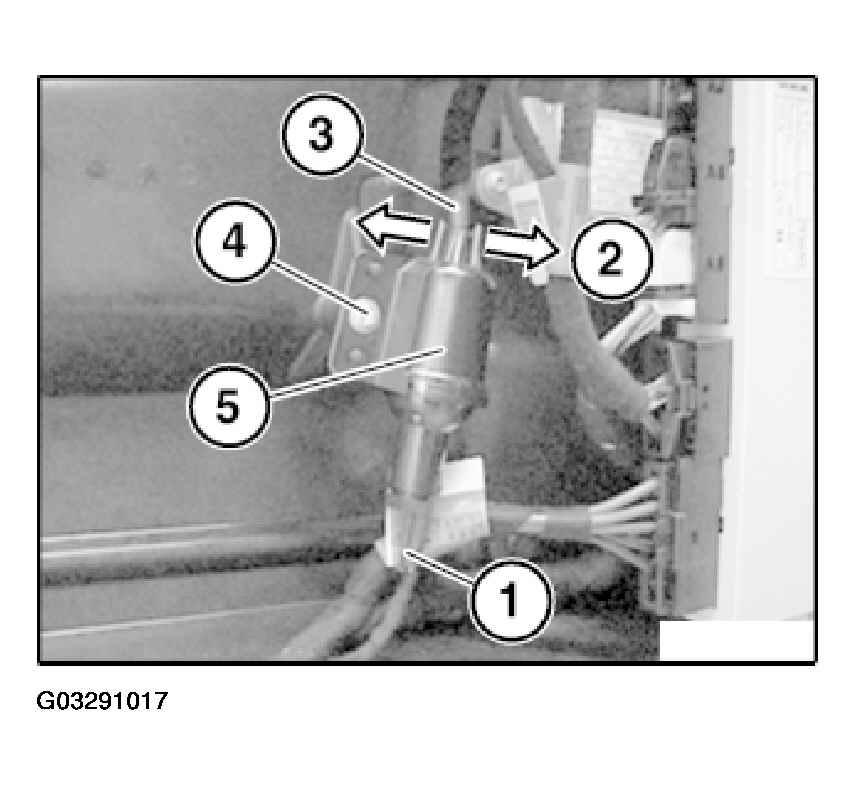

Fig 1: Detaching Light Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock both catches (2) and detach light guide (3).

Release screw (4).

Remove light module for outside door handle lighting (5).

Installation:

Catches (1) of light module for outside door handle lighting (2) must engage correctly when fiber optic guide is inserted.

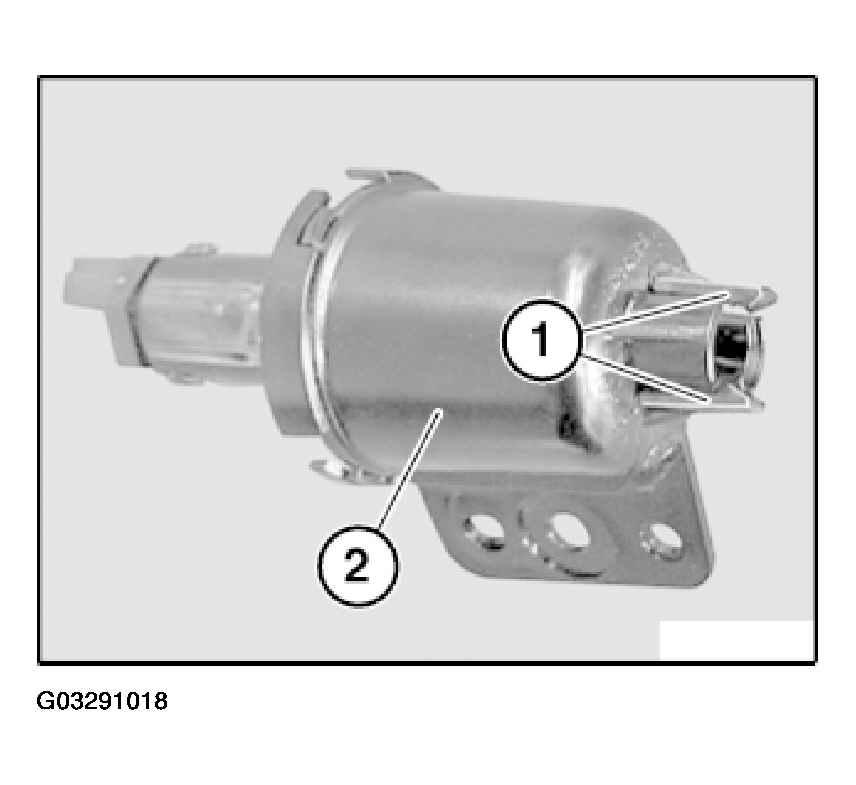

Fig 2: Identifying Catches Of Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
