63 31 020 Removing and installing/replacing footwell light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

In footwell:

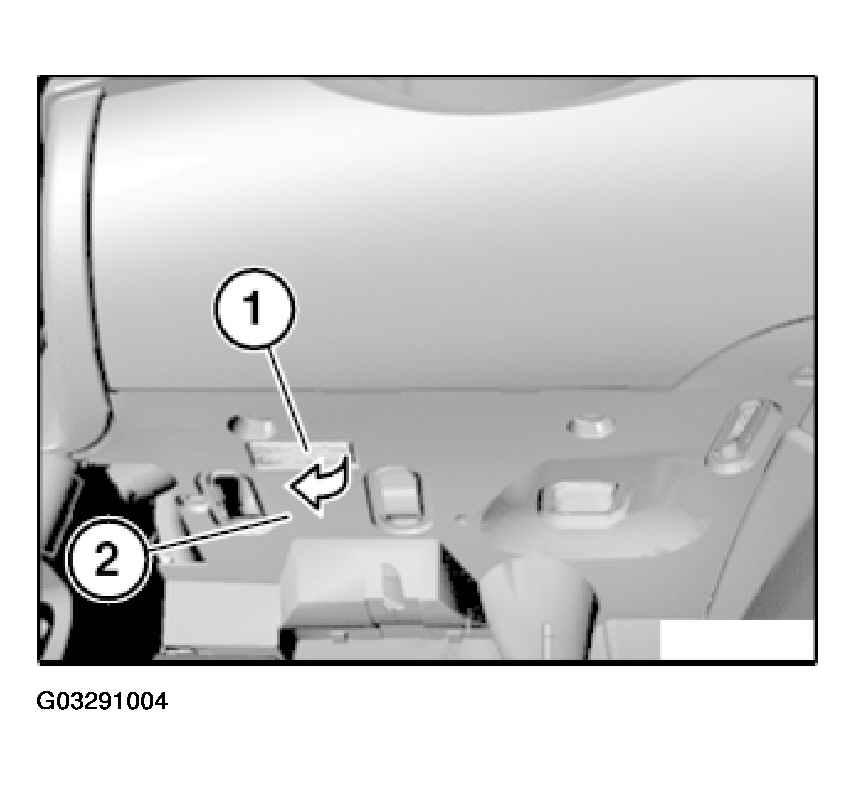

Lever footwell light (1) in direction of arrow out of panel for pedals (2).

Fig 1: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection behind and remove footwell light (1).

In door:

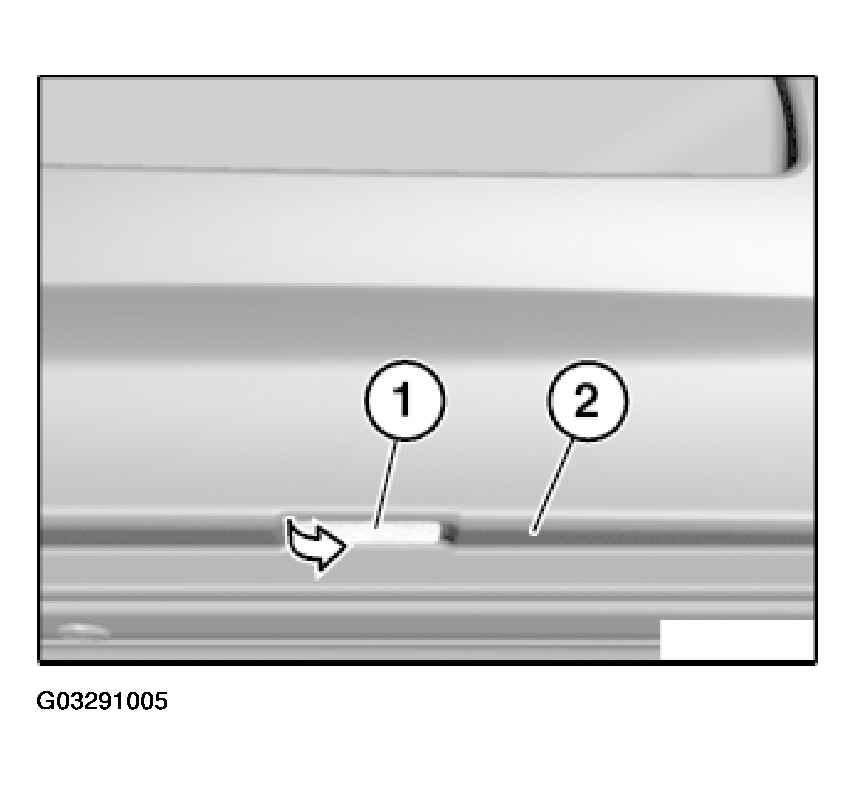

Lever footwell light (1) in direction of arrow out of door trim (2).

Fig 2: Levering Footwell Light Out Of Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection behind and remove footwell light (1).

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
