63 25 000 Removing and installing/replacing additional stop light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

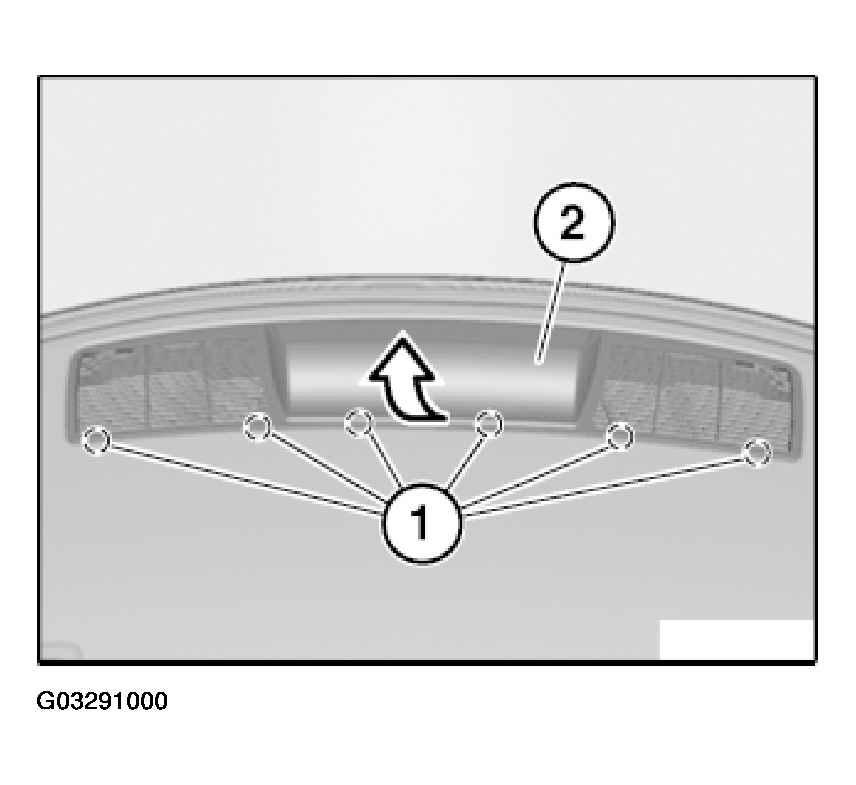

Lever out catches (1) of ventilation louver for oddments tray (2).

Fig 1: Removing Ventilation Louver For Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up complete ventilation louver for oddments tray (2) in direction of arrow, disconnect plug connection underneath and remove complete ventilation louver for oddments tray (2) towards front.

Installation:

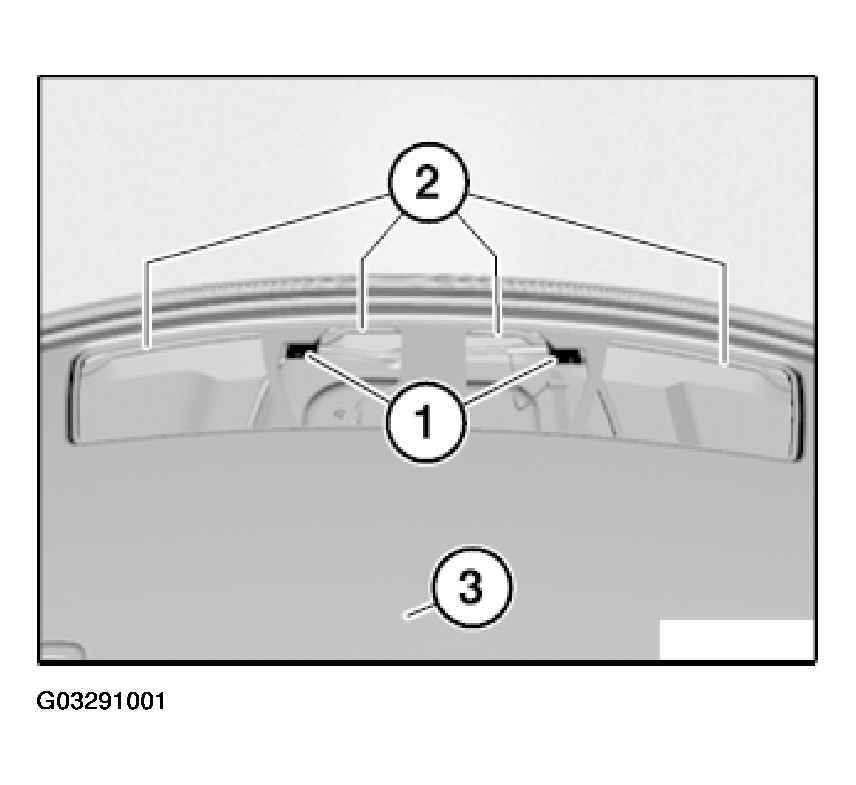

Make sure ventilation louver for oddments tray is correctly fed:

into mounts for oddments tray (1)
into positions (2) of oddments tray (3)

Fig 2: Identifying Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

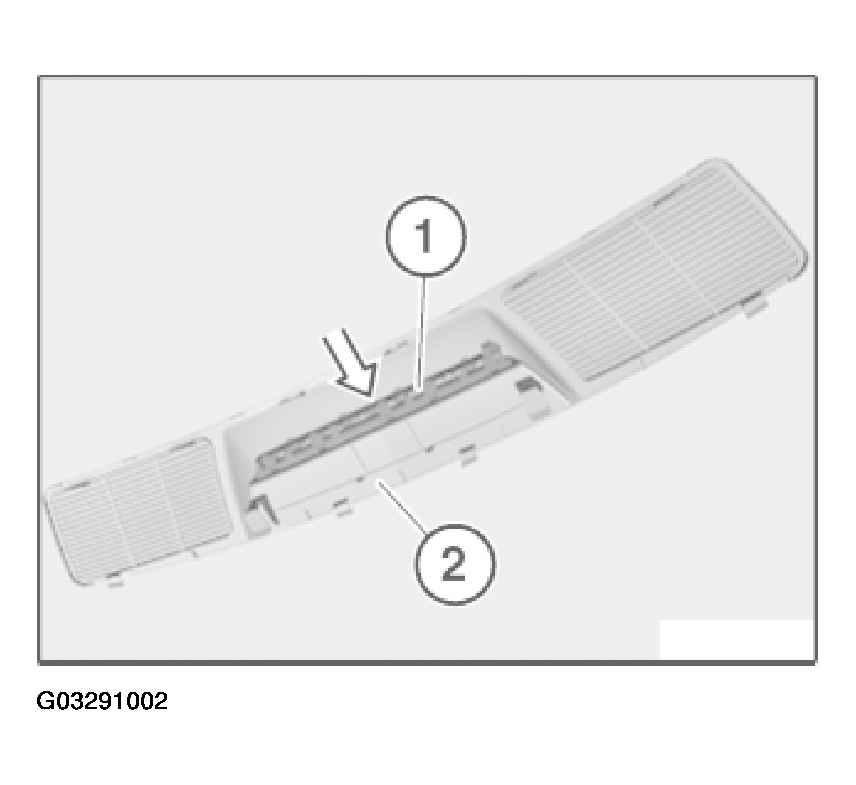

Unclip additional stop light (1) in direction of arrow from ventilation louver for oddments tray (2) and remove.

Fig 3: Removing Stop Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure additional stop light (1) is correctly engaged in ventilation louver for oddments tray (2).
