Water jet hose (1) connected to distributor

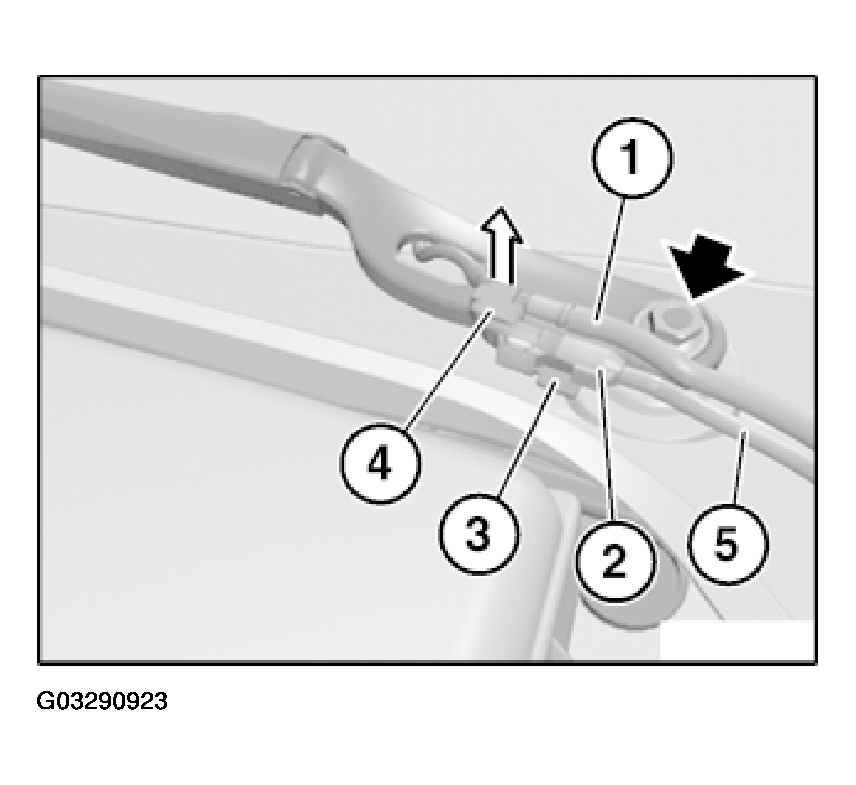

Fig 1: Locating Water Jet Hose

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: At low outside temperatures, carefully heat water jet hose (1) in area of distributor (4) with hot air blower.

Detach water jet hose (1) by turning.

Unlock connector (2) and remove.

Installation:

Check sealing ring on distributor (4) for damage, replace if necessary.

To prevent cable (5) from being chafed on water jet hose (1), cable (5) must be below water jet hose (1).
