61 61 082 Removing and installing left windscreen wiper arm (driver's side): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 331
61 6 060

IMPORTANT: Risk of damage!
Both windscreen wiper arms are secured with significantly different torques.

Move windscreen wiper system into rest position with diagnosis of "assembly position" service function. Refer to DIAGNOSIS PROGRAMMING/CODING .

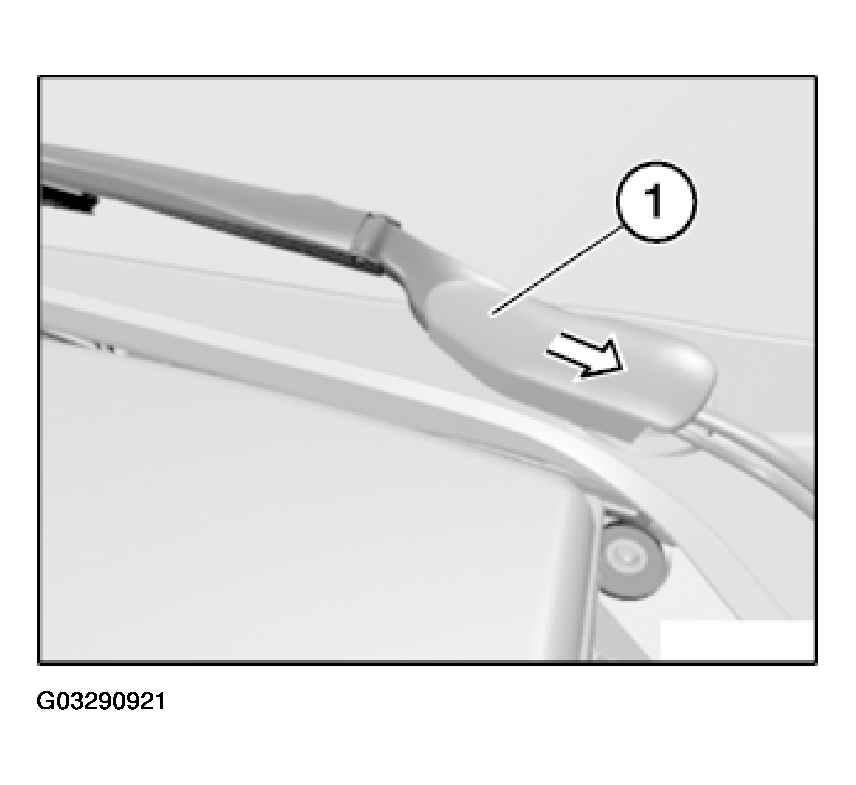

Remove cover cap (1) in direction of arrow.

Fig 1: Removing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

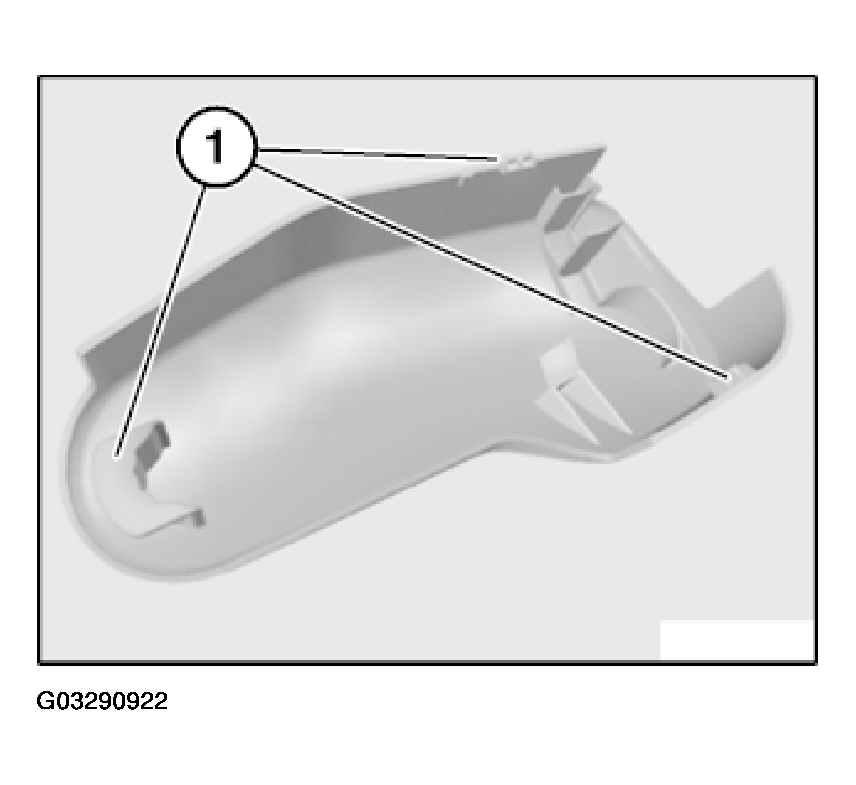

Make sure locks (1) are correctly engaged.

Fig 2: Engaging Locks

Courtesy of BMW OF NORTH AMERICA, INC.
