Adjusting right wiper arm:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment is carried out with a second person assisting.

Remove cover (1).

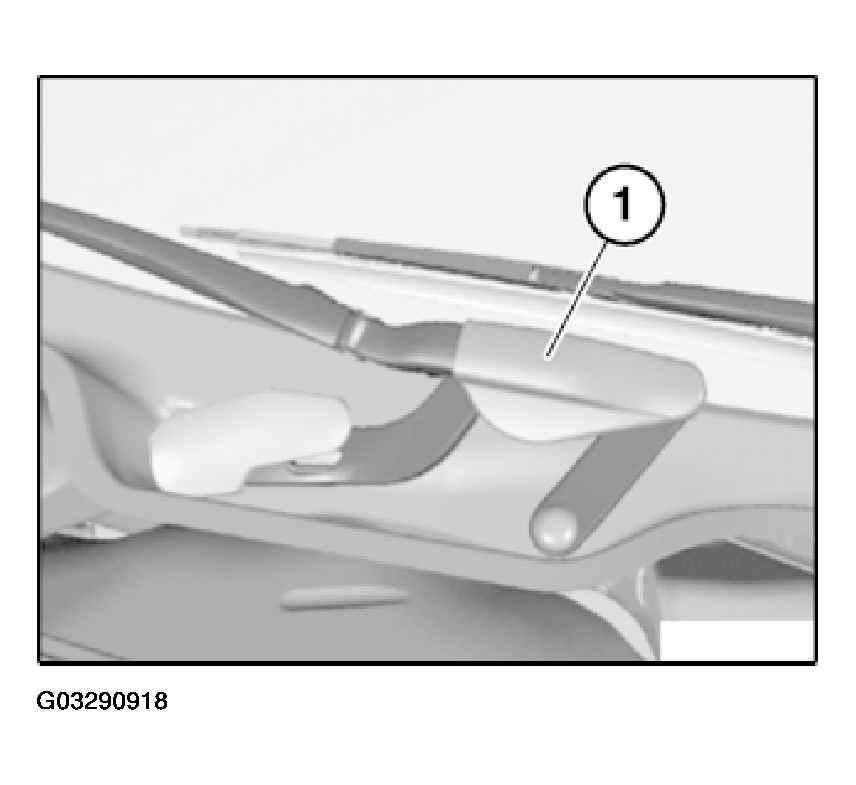

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken adjusting screw (1).

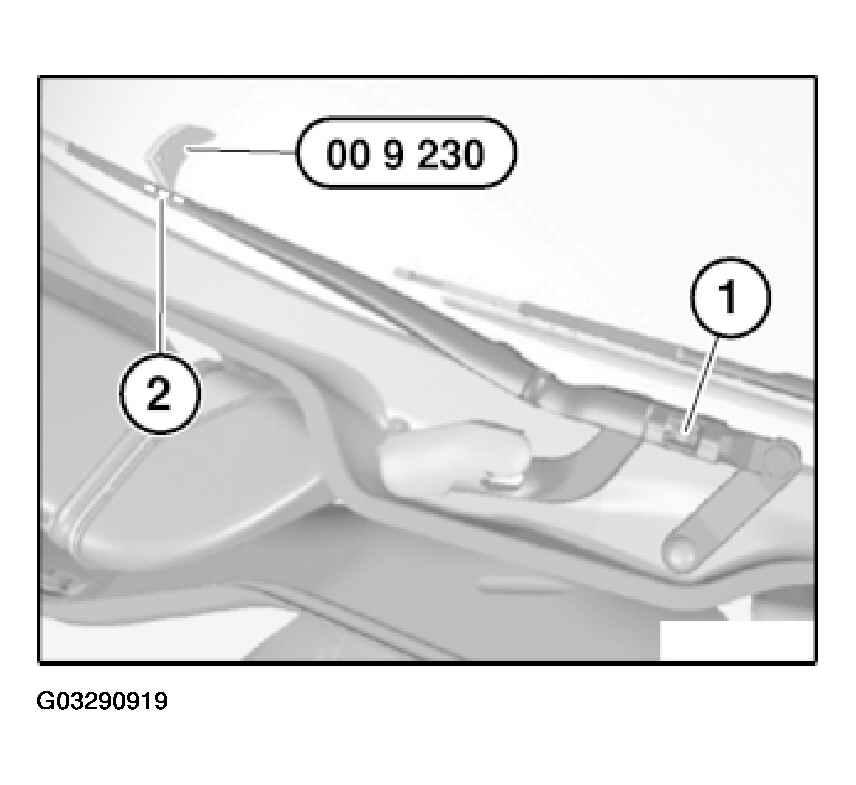

Fig 2: Identifying Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Wiper blade must rest above marking (2) on windshield.

Place special tool 00 9 230 at height of pivot point of wiper blade on windshield.

Turn wiper arm until no gap can be seen between special tool 00 9 230 and wiper blade.

Hold wiper arm in this position and tighten down adjusting screw (1).

Tightening torque, 61 61 10AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Perform one-touch wiping twice. Check adjustment and repeat if necessary.
