Removing right spray nozzle:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right windshield wiper arm, refer to 61 61 101 REMOVING AND INSTALLING/REPLACING BOTH WINDSCREEN WIPER ARMS

Unlock high-pressure nozzle (1) and remove in direction of arrow.

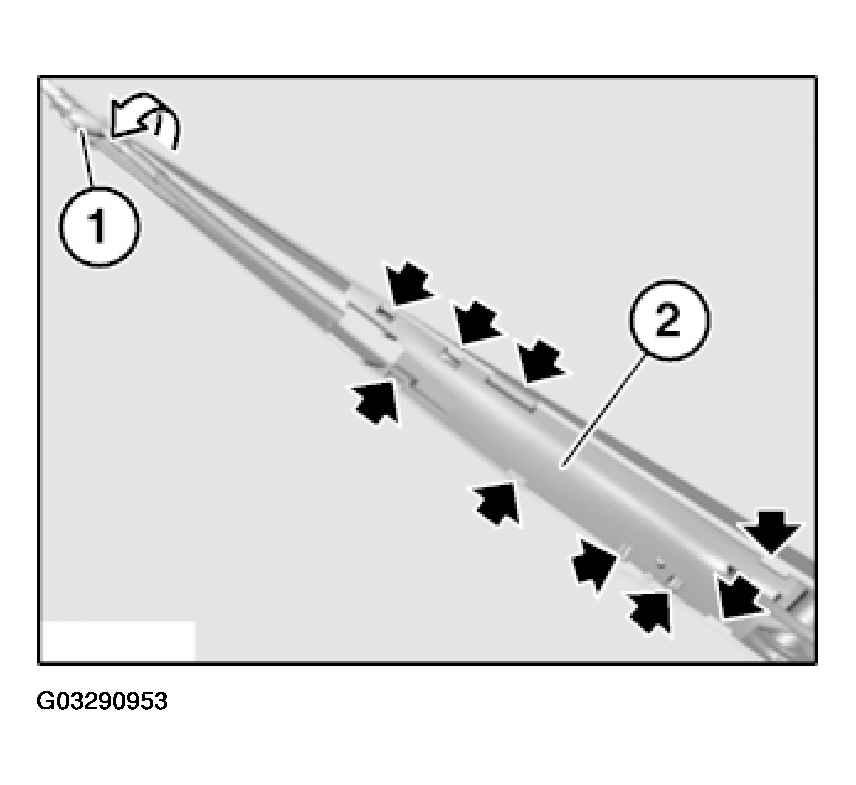

Fig 1: Removing High-Pressure Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Release locks of multifunction element (2).

Remove multifunction element (2).

Installation:

Make sure high-pressure nozzle (1) and multifunction element (2) are correctly locked in wiper arm.

Unlock fitting (2) and detach from holder (1).

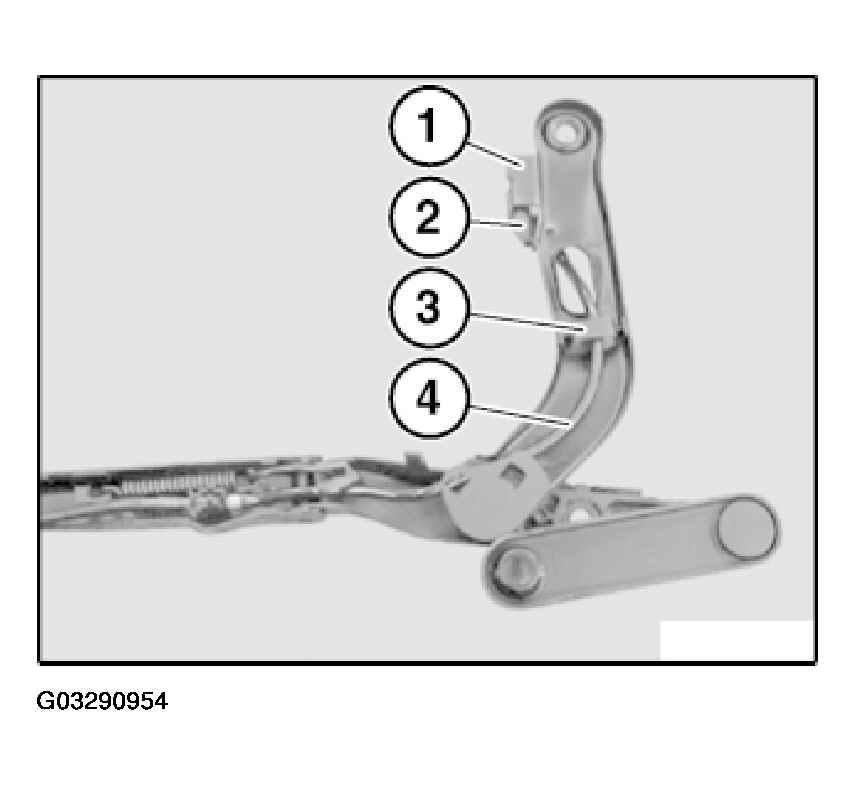

Fig 2: Feeding Out Washer Fluid Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (3) and remove.

Feed out washer fluid line (4).
