61 31 371 Removing and installing/replacing audio unit (on rear center armrest)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear center head restraint. Refer to 52 25 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT .
Remove rear trim. Refer to 52 25 070 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON REAR CENTER ARMREST .
Remove control unit in rear center armrest. Refer to 61 31 156 Removing and installing (replacing) control unit in center armrest at rear .

Installation:

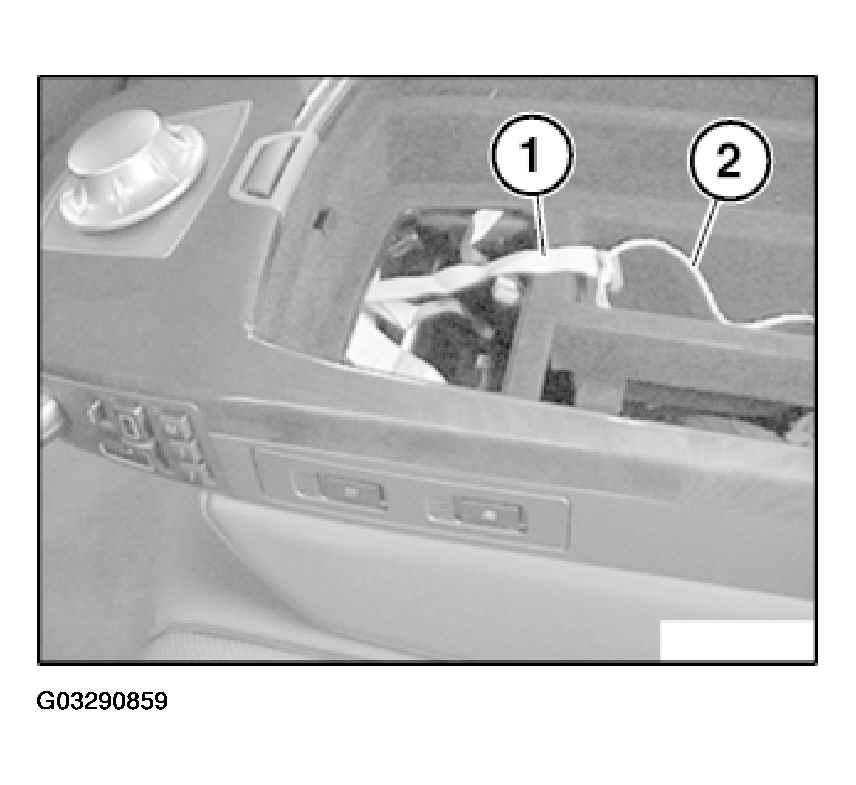

Attach a cord (2) as illustrated to lead for audio unit (1) to make it easier to feed in later.

Fig 1: Attaching Cord To Lead For Audio Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) in direction of arrow.

Fig 2: Removing Audio Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Press catches (2) and remove audio unit (3) in direction of arrow.
