61 31 246 Removing and installing/replacing rear lid button
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear lamp unit. Refer to 63 21 186 REMOVING AND INSTALLING/REPLACING REAR LIGHT (ON CENTRE OF REAR LID) .

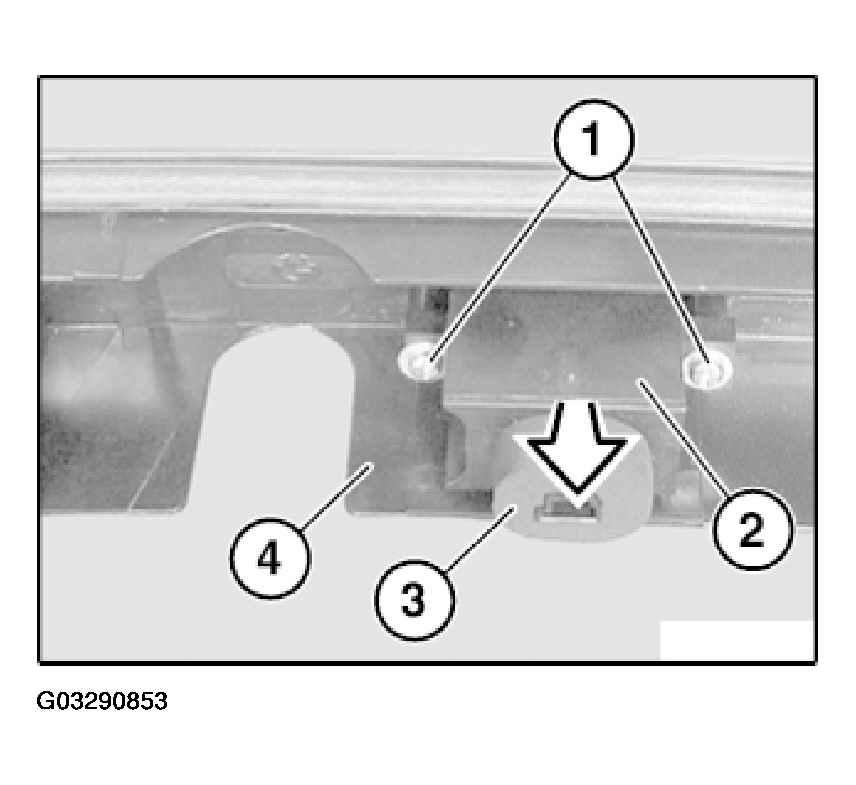

Release screws (1).
Remove rear lid button (2) in direction of arrow from rear lamp unit (4).
Installation:
Ensure gasket (3) is correctly seated.
